Submitting a Verilog project instead of Wokwi
This guide will show you how to repurpose your tile for a Verilog-based project instead of a Wokwi one. This is suitable if you know some Verilog and want to submit a Verilog design, but already have submitted a Wokwi project to the shuttle.
Steps
- Go to your submitted repository’s settings and rename the repository to anything else. Click the “Rename” button.

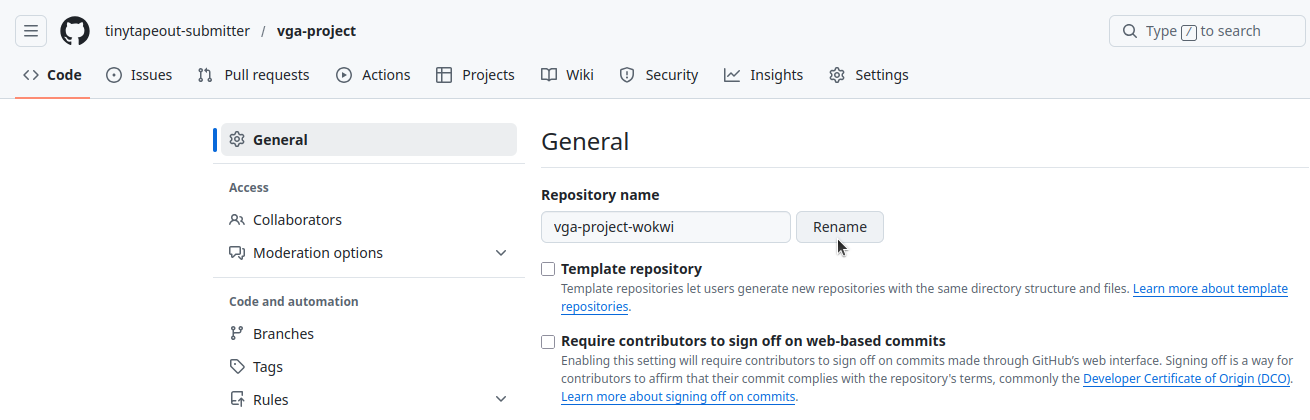

Renaming a repository from 'vga-project' to 'vga-project-wokwi' via the repo settings
- Create a new repository from one of the Verilog template and make sure to use the same name as the original repository:
- For IHP shuttles: ttihp-verilog-template
- For SKY shuttles: ttsky-verilog-template

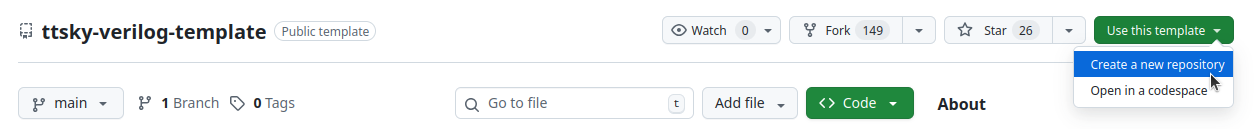

Using the Skywater template repository to create a new one
-
Add your design source files, documentation and update info.yaml. Commit these files to the newly created repo.
-
Iterate on your design until the GDS and Docs actions go green.
-
Go to app.tinytapeout.com, click on your project name, then click on the big blue “SUBMIT A REVISION” button.
