36 FSK Modem
36 : FSK Modem
- Author: Vaishnavi V
- Description: FSK modem for underwater acoustic communication (46-56 kHz, 100 bps)
- GitHub repository

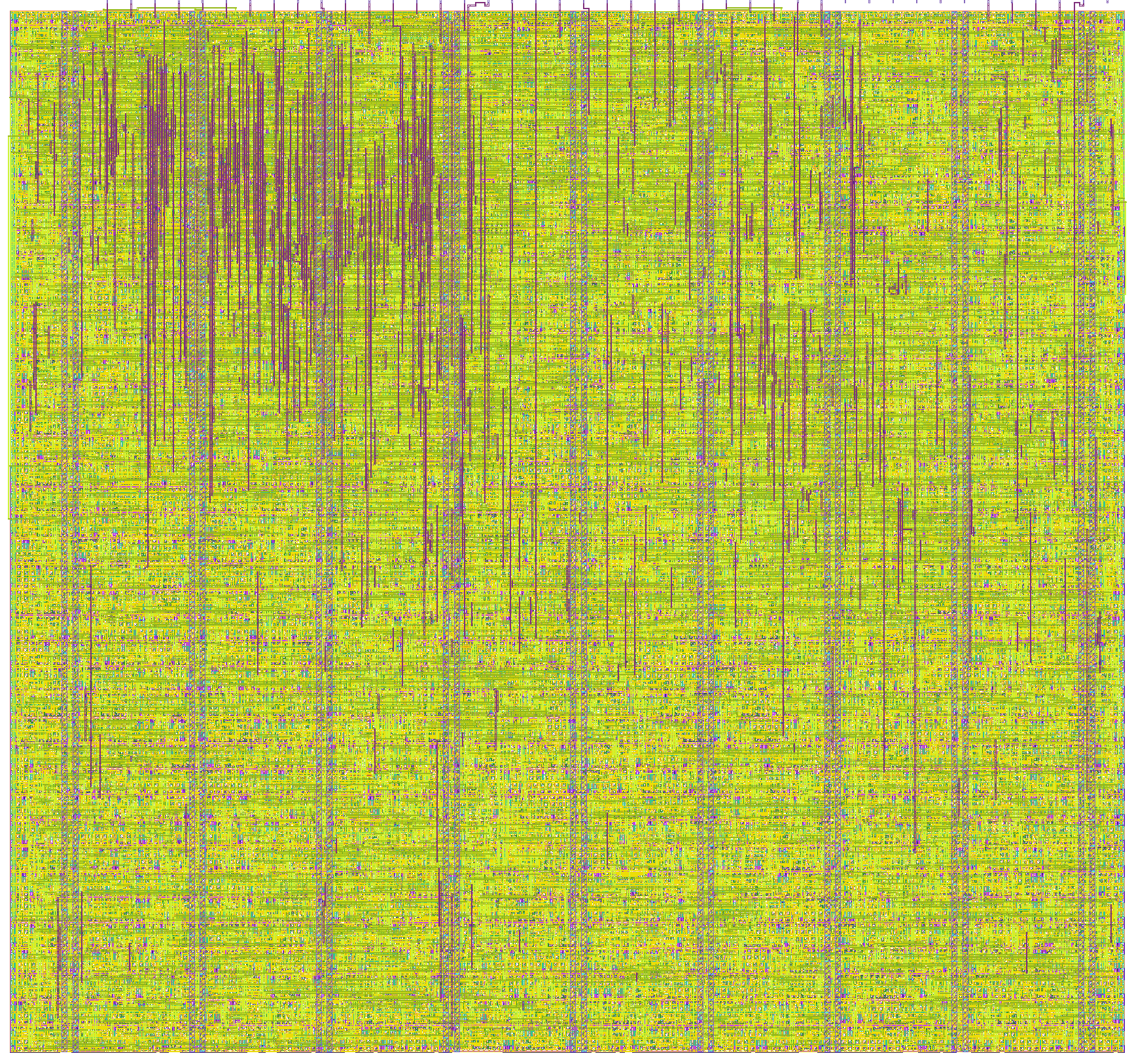

- Open in 3D viewer
- Clock: 50000000 Hz
How it works
This is a digital binary FSK modem designed for underwater acoustic communication in the 46-56 kHz band.
Data bytes are framed as the following:
[preamble sync word payload CRC]
Then each bit selects between two frequencies — 48 kHz (mark/1) and 54 kHz (space/0).
Similar to the DDS algorithm, a numerically controlled oscillator (NCO) uses a 16-bit phase accumulator with a 32-entry sine lookup table to generate 8-bit samples at 200 kHz.
There is also a CRC-8 for error detection on the 8-bit payload.
On the receiving side, 8-bit ADC samples feed two parallel Goertzel filters at the chosen mark and space frequencies (48 and 54 kHz). A frame synchronizer detects the preamble/sync pattern, extracts the payload byte, and verifies the CRC.
SPI is the protocol used to interface with the design.
There is a loopback mode to test the chip on its own, which is standard.
How to test
All 8 output pins expose these signals for hardware bring-up:
- uo_out[1] RX_BYTE_VALID - Pulses once per decoded byte
- uo_out[2] CRC_OK - High = good frame, low = corrupt
- uo_out[3] PACKET_DETECTED - Goes high when sync word found
- uo_out[4] TX_ACTIVE - High while transmitting
- uo_out[5] SYMBOL_CLK - 100 Hz baud tick during TX
- uo_out[6] MARK_GT_SPACE - Real-time Goertzel comparison
- uo_out[7] SAMPLE_CLK - 200 kHz ADC/DAC sample clock
These can be monitored with a logic analyzer or oscilloscope during bench testing.
To write a register, set bit 7 of the address byte. To read, send the plain address followed by a dummy byte, the register value comes back on MISO during the dummy byte.
Note: the link is half-duplex — a board cannot receive while it is transmitting, since TX output and RX input share the same 8 pins. Note also that the receiver has no symbol-timing recovery: the Goertzel blocks free-run, so board-to-board reception requires the block phase to land close to the symbol boundaries.
Expect to need multiple frames (or a hardware retry loop) for the first sync in two-board tests.
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | SPI_SCLK | SPI_MISO | |
| 1 | SPI_MOSI | RX_BYTE_VALID | |
| 2 | SPI_CS_N | CRC_OK | |
| 3 | PACKET_DETECTED | ||
| 4 | TX_ACTIVE | ||
| 5 | SYMBOL_CLK | ||
| 6 | MARK_GT_SPACE | ||
| 7 | SAMPLE_CLK |
