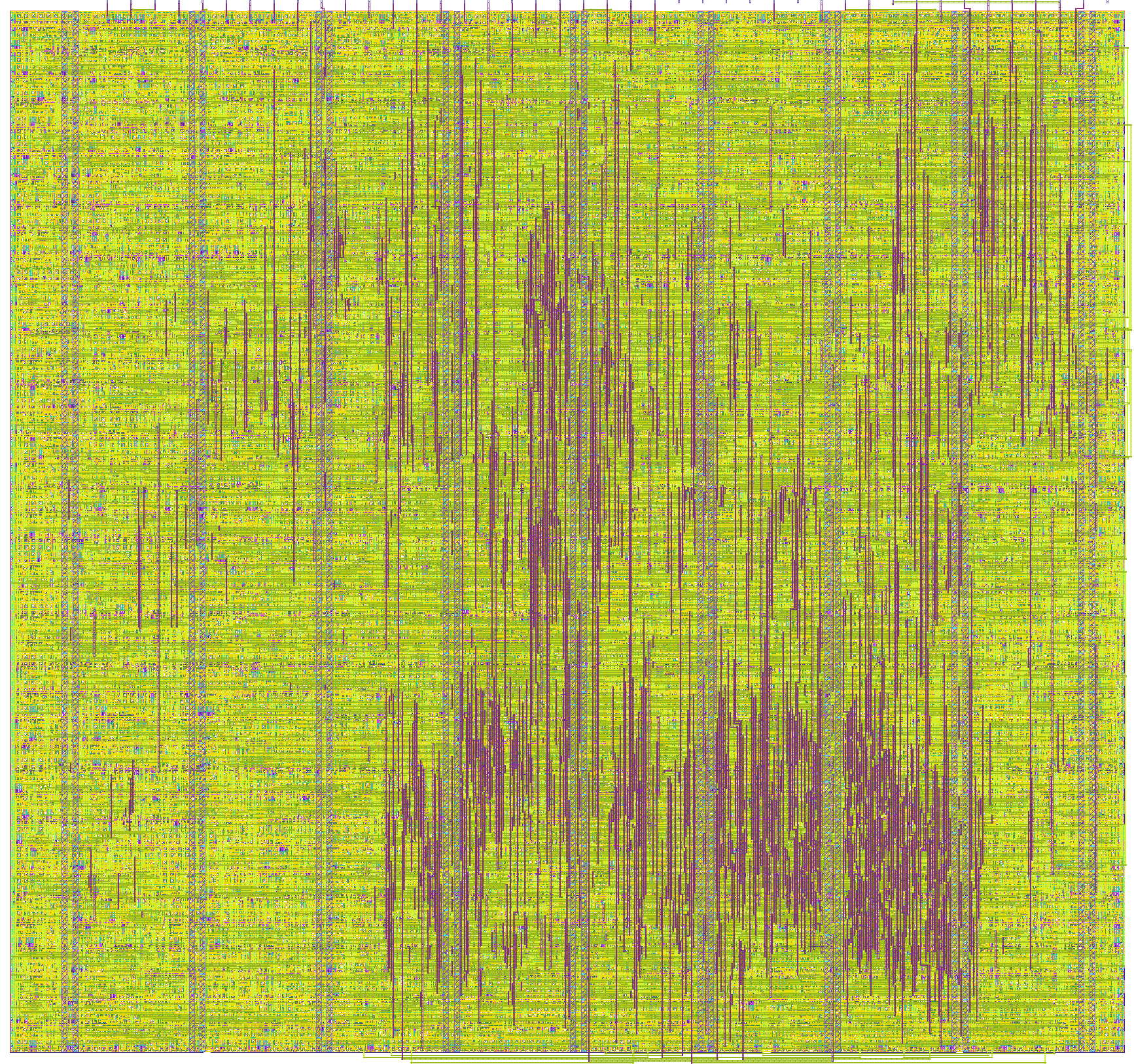

A standalone characterization platform for a single external resistive-switching device — RRAM / memristor / phase-change cell — implemented entirely in gf180mcuD digital. The host programs one set of parameters, asserts start, and the on-chip FSM runs the chosen experiment to completion, writing results into readable registers so the host never has to micro-manage pulses.

Four modes

`mode`	Name	What it does
`00`	DC sweep	DAC ramps `VSTART → VSTOP` by `VSTEP` with a `PW`-cycle settle at each step; every sample updates histogram, min, max, last.
`01`	Endurance	N cycles of `{SET pulse → read-verify vs THR_LO, RESET pulse → read-verify vs THR_HI}`. On the first miss, `FAIL_IDX` and `PASS_FAIL` latch and the FSM stops early.
`10`	Retention	Apply one `SET` pulse, then read every `INTV` clocks for N reads at `VREAD`, updating histogram / min / max / last each time.
`11`	Hist-only	Free-running ADC capture: sample `ui_in` every `PW` clocks for N samples without touching the DAC.

All four modes write into a shared 16-bin histogram (bins indexed by adc[7:4], 8-bit saturating counters) and a min / max / last tracker.

Block diagram

       +------+          +---------------+          +-----------+
 ui_in |  ADC |--------> | histogram +   |          |           |
  (in) |      |          | min/max/last  | <--------+ FSM       |<--- SPI regs
       +------+          +---------------+  do_sample|  (4 mode |
                                                     |   dispatch)
       +------+                                      |           |
uo_out |  DAC |<-------------------------------------+           |
 (out) |      |                                      +-----------+
       +------+
                   (uio: cs_n, mosi, miso, sck, busy, done, pass_fail, trig)

Register map

Addr	Name	Description
`0x00`	`R_CTRL`	`{irq_en, —, clear_hist, mode[1:0], reset_sticky, start, global_en}`
`0x01`	`R_VSTART`	DC-sweep start DAC code (default `0x00`)
`0x02`	`R_VSTOP`	DC-sweep stop DAC code (default `0xFF`)
`0x03`	`R_VSTEP`	DC-sweep step (default `0x01`)
`0x04`	`R_VSET`	SET-pulse amplitude (default `0xC0`)
`0x05`	`R_VRESET`	RESET-pulse amplitude (default `0x40`)
`0x06`	`R_VREAD`	READ amplitude (default `0x80`)
`0x07`	`R_THR_LO`	verify threshold after SET (ADC must be `≥ THR_LO`) (default `0xA0`)
`0x08`	`R_THR_HI`	verify threshold after RESET (ADC must be `≤ THR_HI`) (default `0x60`)
`0x09`	`R_PW`	pulse / settle width in clocks (default `0x04`)
`0x0A`	`R_N_LO`	low byte of N (endurance cycles / retention reads / hist samples)
`0x0B`	`R_N_HI`	high byte of N (max `0xFFFF` = 65 535)
`0x0C`	`R_INTV_LO`	retention interval low byte
`0x0D`	`R_INTV_HI`	retention interval high byte
`0x10..0x1F`	`R_HIST0..15`	16-bin 8-bit saturating histogram
`0x20`	`R_STATUS`	`{busy, done_sticky, pass_fail, irq_sticky, —, mode[1:0], global_en}`
`0x21/22`	`R_FAIL_LO/HI`	cycle index where endurance first failed
`0x23`	`R_LAST_ADC`	most-recent sampled ADC value
`0x24`	`R_MIN_ADC`	minimum ADC observed since start
`0x25`	`R_MAX_ADC`	maximum ADC observed since start
`0x26`	`R_DAC_DBG`	current DAC drive value (read-only)

W1C on R_STATUS: write 1 << 6 to clear done_sticky; write 1 << 4 to clear irq_sticky. pass_fail is cleared by writing CTRL.reset_sticky=1.

Pinout

ui_in[7:0] — ADC readback from the external cell
uo_out[7:0] — DAC drive to the external cell
uio[0] — spi_cs_n (in)
uio[1] — spi_mosi (in)
uio[2] — spi_miso (out)
uio[3] — spi_sck (in)
uio[4] — busy
uio[5] — done_sticky
uio[6] — pass_fail (endurance)
uio[7] — trigger_out — high during SET/RESET pulse phases in DC / endurance / retention modes, useful as a scope trigger.

How to test

# Endurance: 100 cycles at default SET/RESET/READ/thresholds, PW=4
spi_write(R_PW, 4)
spi_write(R_N_LO, 100); spi_write(R_N_HI, 0)
spi_write(R_CTRL, 0x0B)           # global_en=1, start=1, mode=01
wait(status.done == 1)
if status.pass_fail:
    fail_cycle = R_FAIL_HI << 8 | R_FAIL_LO
else:
    fail_cycle = None

External hardware

An external RRAM/memristor test cell with a byte-granularity DAC drive and a byte-granularity ADC readback. The on-chip platform does not assume any particular voltage / current scaling — the 8-bit codes on uo_out map linearly to whatever analog rail the carrier board supplies, and ui_in is whatever the carrier board samples from the cell.

#	Input	Output	Bidirectional
0	adc_in[0] (external device readback, LSB)	dac_out[0] (DAC drive to external device, LSB)	spi_cs_n (in)
1	adc_in[1]	dac_out[1]	spi_mosi (in)
2	adc_in[2]	dac_out[2]	spi_miso (out)
3	adc_in[3]	dac_out[3]	spi_sck (in)
4	adc_in[4]	dac_out[4]	busy (out)
5	adc_in[5]	dac_out[5]	done_sticky (out)
6	adc_in[6]	dac_out[6]	pass_fail (out, endurance)
7	adc_in[7] (MSB)	dac_out[7] (MSB)	trigger_out (out, high during SET/RESET/sample phases)
