Chip viewer gets major upgrade

New microscope images, GDS, local interconnect layers, and direct links to project files.

Tiny Tapeout Team

•

28 June 2025

New chip viewer

New chip viewer

Upgrade update!

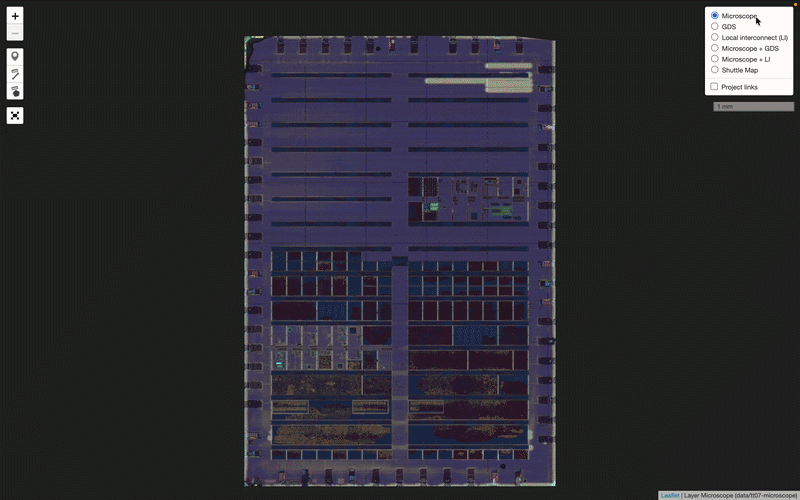

You can now see microscope images, GDS, local interconnect layers, and jump straight to project files.

Spot something cool? Dive right into the design to see exactly how it was built.

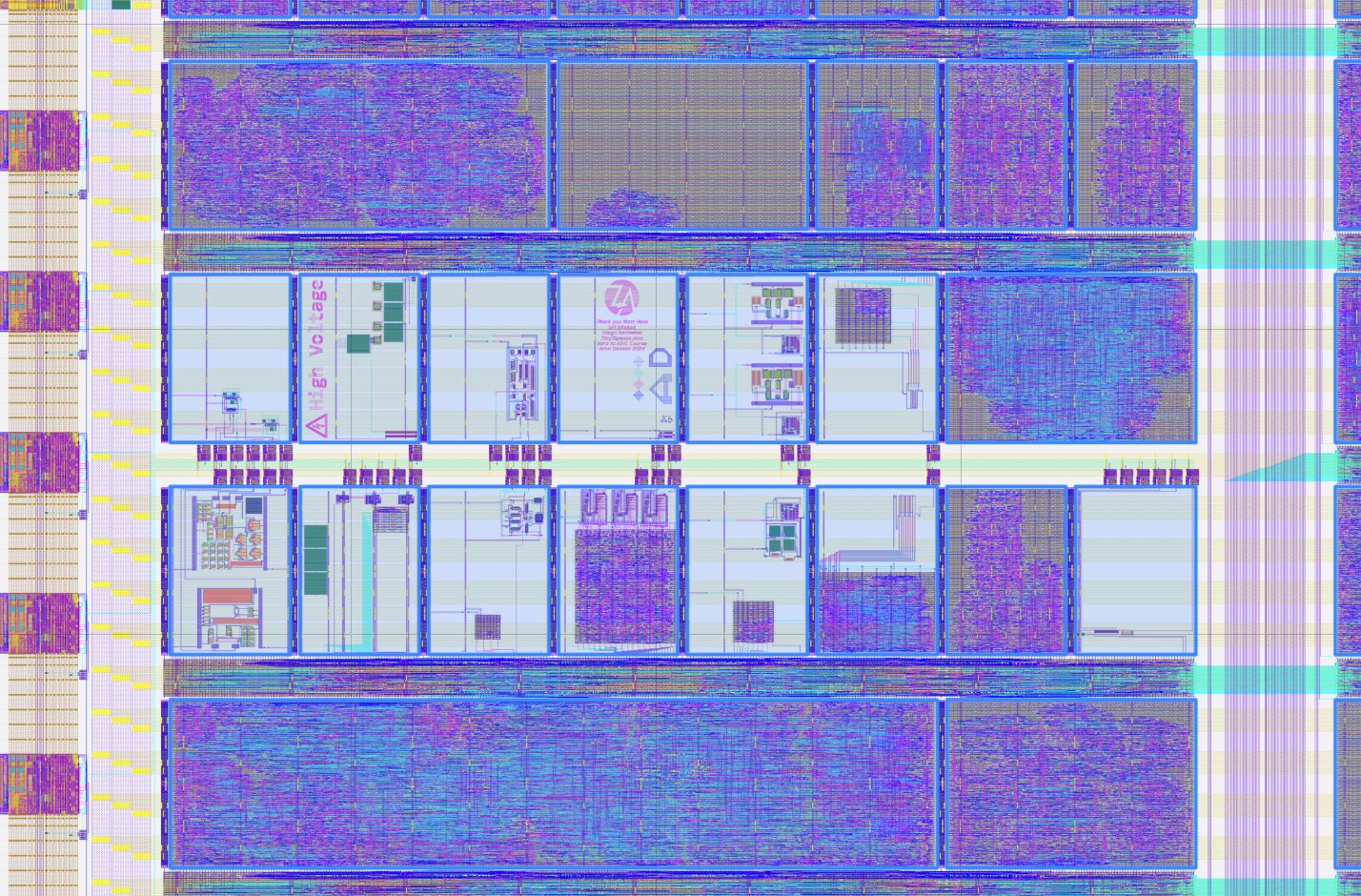

GDS with project links

These are its new features:

  • High-resolution microscope images of the silicon
  • GDS layer visualization
  • Local interconnect layer details
  • Direct links to project repositories

Explore TT07 with the new viewer here. Try out the new layer selections with the menu at the top right.

Thanks to our partners at Texplained for the imaging, and thanks to Tamas for aligning the images and adding the new features.

If you need your chips imaged or secret data extracted, check out Texplained!
