69 MIPS-Lite 8-bit Processor
69 : MIPS-Lite 8-bit Processor
- Author: Jesus (jalperdev)
- Description: 8-bit MIPS-inspired single-cycle processor with 8 registers, ALU, branches and jumps
- GitHub repository

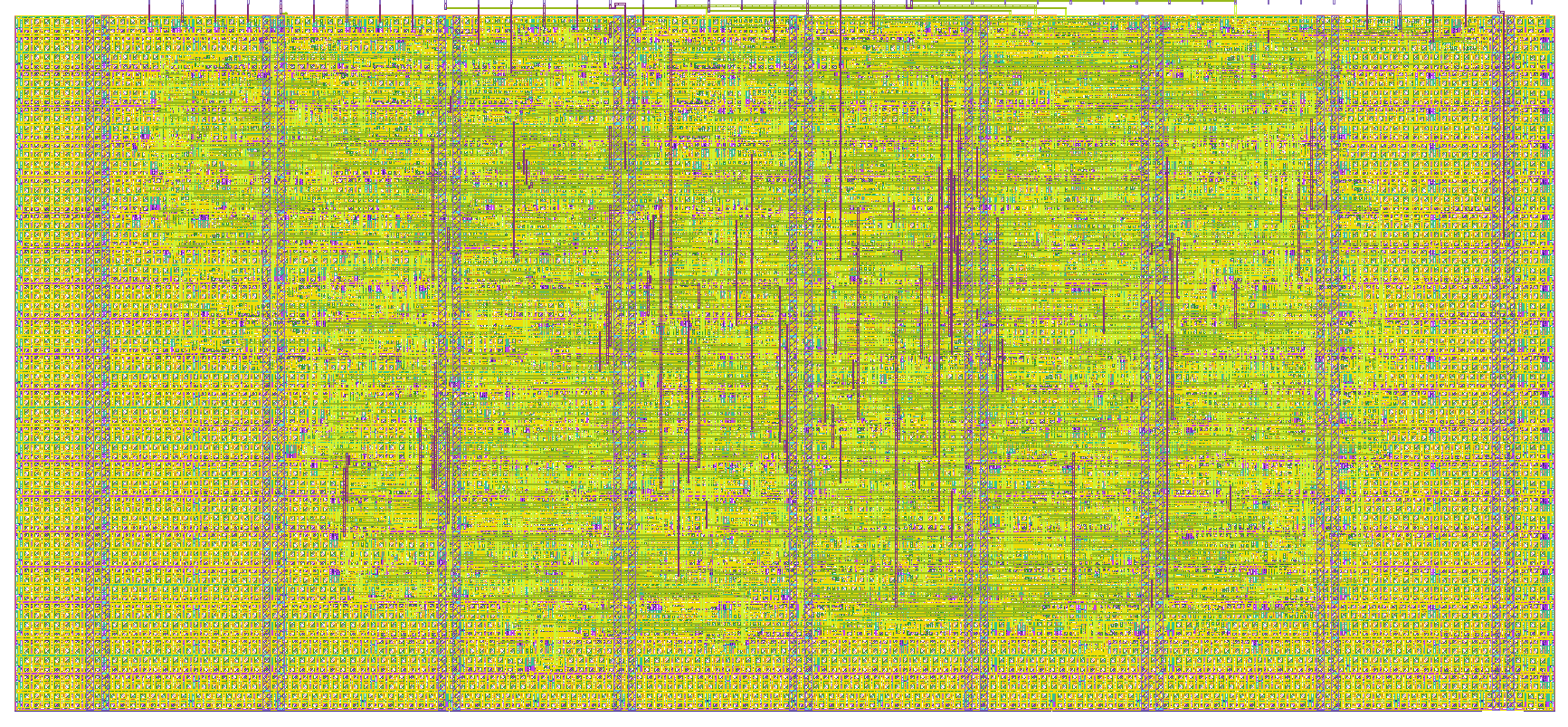

- Open in 3D viewer
- View in Wokwi
- Clock: 50000000 Hz
MIPS-Lite 8-bit Processor
How it works
This is an 8-bit MIPS-inspired single-cycle processor designed for Tiny Tapeout. It preserves the core architectural concepts of a full 32-bit MIPS processor, scaled down to fit in a single tile:
Architecture
- 8 general-purpose registers (R0 hardwired to 0, R1-R7 writable)
- 8-bit ALU with ADD, SUB, AND, OR, SLT operations
- 16-bit instruction format supporting R-type, I-type, and J-type instructions
- 5-bit Program Counter addressing 32 instruction ROM entries
- Single-cycle execution — one instruction per clock cycle
Instruction Set
| Opcode | Name | Format | Operation |
|---|---|---|---|
| 0000 | R-type | R | ADD, SUB, AND, OR, SLT (based on funct field) |
| 0001 | ADDI | I | R[rt] ← R[rs] + sign_ext(imm) |
| 0010 | ANDI | I | R[rt] ← R[rs] & zero_ext(imm) |
| 0011 | ORI | I | R[rt] ← R[rs] | zero_ext(imm) |
| 0100 | BEQ | I | if R[rs]==R[rt]: PC ← PC+1+imm |
| 0101 | BNE | I | if R[rs]!=R[rt]: PC ← PC+1+imm |
| 0110 | J | J | PC ← addr |
| 0111 | LUI | I | R[rt] ← imm << 2 |
| 1111 | HALT | - | Stop execution |
Demo Program
The hardcoded ROM contains a Fibonacci + ALU test program that:
- Computes Fibonacci numbers (1, 1, 2, 3, 5)
- Tests AND, OR, SUB, SLT operations
- Tests BEQ (not taken) and BNE (taken) branches
- Tests Jump instruction
- Halts
How to test
- Apply reset (rst_n = 0) for at least one clock cycle, then release (rst_n = 1)
- The CPU will execute the hardcoded program automatically
- Use
ui_in[2:0]to select which register (R0-R7) to observe onuo_out[7:0] - Monitor
uio_out[4:0]for the current Program Counter value - Check
uio_out[5]for the halt flag (goes high when HALT is reached)
Expected results after execution:
| Register | Value | Description |
|---|---|---|
| R0 | 0x00 | Hardwired zero |
| R1 | 0x03 | Fibonacci intermediate |
| R2 | 0x05 | Fibonacci result |
| R3 | 0x05 | Fibonacci result |
| R4 | 0x15 | ADDI result (21) |
| R5 | 0x0F | ORI result (15) |
| R6 | 0xFE | SUB result (-2 signed) |
| R7 | 0x01 | SLT result (3 < 5 = true) |
External hardware
No external hardware required. Connect LEDs to outputs for visual observation:
- 8 LEDs on
uo_outto display the selected register value - 5 LEDs on
uio_out[4:0]to show PC - 1 LED on
uio_out[5]for halt indicator - 3 switches on
ui_in[2:0]for register selection
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | reg_sel[0] | reg_data[0] | pc[0] |
| 1 | reg_sel[1] | reg_data[1] | pc[1] |
| 2 | reg_sel[2] | reg_data[2] | pc[2] |
| 3 | reg_data[3] | pc[3] | |
| 4 | reg_data[4] | pc[4] | |
| 5 | reg_data[5] | halt | |
| 6 | reg_data[6] | alu_zero | |
| 7 | reg_data[7] |
