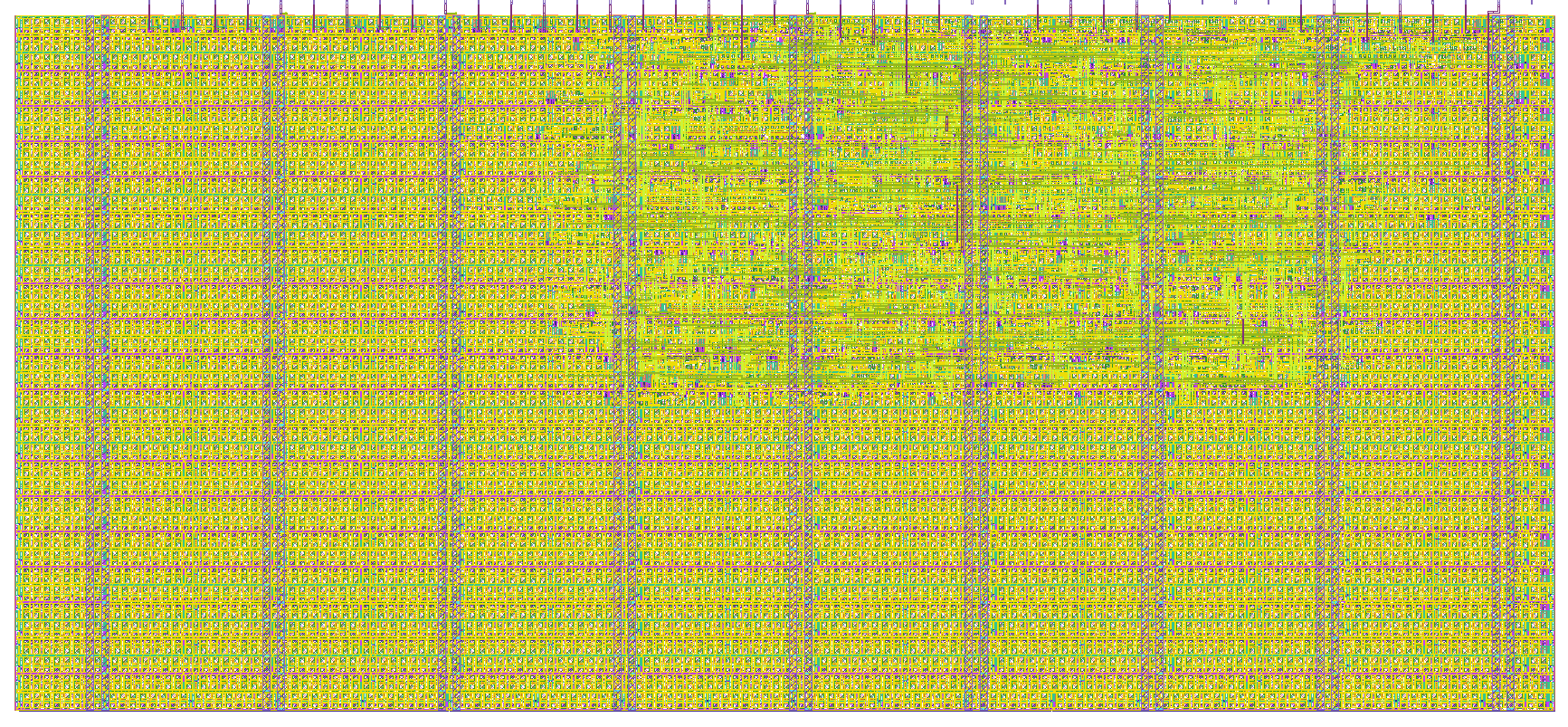

How it works

SD format: 00 => -1 01 => 0 10 => 0 11 => 1

reads 8 values in Registers R0-R7, adds 8 values in BSD format where each value is shifted by 1 digit resulting in: Y = R0 · 1 + R1 · 2 + R2 · 4 + R3 · 8 + R4 · 16 + R5 · 32 + R6 · 64 + R7 · 128

every Addition is performed in BSD format either BSD + TC => BSD or BSD + BSD=> BSD

output given in BSD format.

How to test

Because Tiny Tapeout provides only 8 dedicated input bits and 8 dedicated output bits, the register inputs and result output are multiplexed.

Control signals on uio_in uio_in[7] => write enable uio_in[2:0] => register select for R0 to R7 uio_in[4:3] => output chunk select

During writing, uio_in[7] must be set to 1. This enables writing to the selected register.

uio_in[7] = 1 => write enabled uio_in[7] = 0 => write disabled

After all registers have been loaded, uio_in[7] must be set back to 0. This prevents accidental overwriting of registers during readout.

Writing registers:

To write a value into a register:

Put the input value on ui_in[7:0]. Set uio_in[7] = 1. Set uio_in[2:0] to the target register index. Apply one clock cycle.

uio_in[2:0] = 000 => R0 uio_in[2:0] = 001 => R1 uio_in[2:0] = 010 => R2 uio_in[2:0] = 011 => R3 uio_in[2:0] = 100 => R4 uio_in[2:0] = 101 => R5 uio_in[2:0] = 110 => R6 uio_in[2:0] = 111 => R7

Example input values:

[2, 4, 8, 16, 8, 4, 2, 0]

Write sequence:

ui_in = 00000010 uio_in = 10000000 // write enabled, select R0 clock

ui_in = 00000100 uio_in = 10000001 // write enabled, select R1 clock

ui_in = 00001000 uio_in = 10000010 // write enabled, select R2 clock

ui_in = 00010000 uio_in = 10000011 // write enabled, select R3 clock

ui_in = 00001000 uio_in = 10000100 // write enabled, select R4 clock

ui_in = 00000100 uio_in = 10000101 // write enabled, select R5 clock

ui_in = 00000010 uio_in = 10000110 // write enabled, select R6 clock

ui_in = 00000000 uio_in = 10000111 // write enabled, select R7 clock

-writing done

uio_in = 00000000 // write disabled clock Reading the output

The result ist lenght 26 bit so we need to multiplex through uo_out[7:0].

The output chunk is selected using uio_in[4:3]

uio_in[4:3] = 00 => first 8 bits are laying on uo_out[0:7] : o0 uio_in[4:3] = 01 => second 8 bits ": o1 uio_in[4:3] = 10 => third 8 bits ": o2 uio_in[4:3] = 11 => fourth 8 bits ": o3

Read sequence:

uio_in = 00000000 uo_out now contains o0

uio_in = 00001000 uo_out now contains o1

uio_in = 00010000 uo_out now contains o2

uio_in = 00011000 uo_out now contains o3

The full BSD result is reconstructed as:

[o3 | o2 | o1 | o0]

Real convolution usage

For a real 3x3 image convolution, the values loaded into registers R0 to R7 should be the preadded weight sums of the 3x3 filter kernel.

The circuit itself does not contain the full ROM. Instead, the ROM lookup can be simulated or calculated externally. The external ROM implements the lookup table for the fixed 3x3 filter kernel(for example gaussian).

For each bit position of the 8-bit pixel values, one bit from each of the nine pixels is used to form a 9-bit ROM address:

[p1, p2, p3] [p4, p5, p6] => 8 x 9-bit address => 512-entry ROM => 8 preadded values => load into R0 to R7 => BSD Out of complete Convolution [p7, p8, p9]

#	Input	Output	Bidirectional
0	input value bit 0	BSD output chunk bit 0	register select bit 0
1	input value bit 1	BSD output chunk bit 1	register select bit 1
2	input value bit 2	BSD output chunk bit 2	register select bit 2
3	input value bit 3	BSD output chunk bit 3	output chunk select bit 0
4	input value bit 4	BSD output chunk bit 4	output chunk select bit 1
5	input value bit 5	BSD output chunk bit 5
6	input value bit 6	BSD output chunk bit 6
7	input value bit 7	BSD output chunk bit 7	write enable
