515 Simple SPI configuration for analog designs
515 : Simple SPI configuration for analog designs
- Author: Alan G
- Description: Simple 8-bit unidirectional SPI register for external configuration of future analog/mixed-signal designs
- GitHub repository

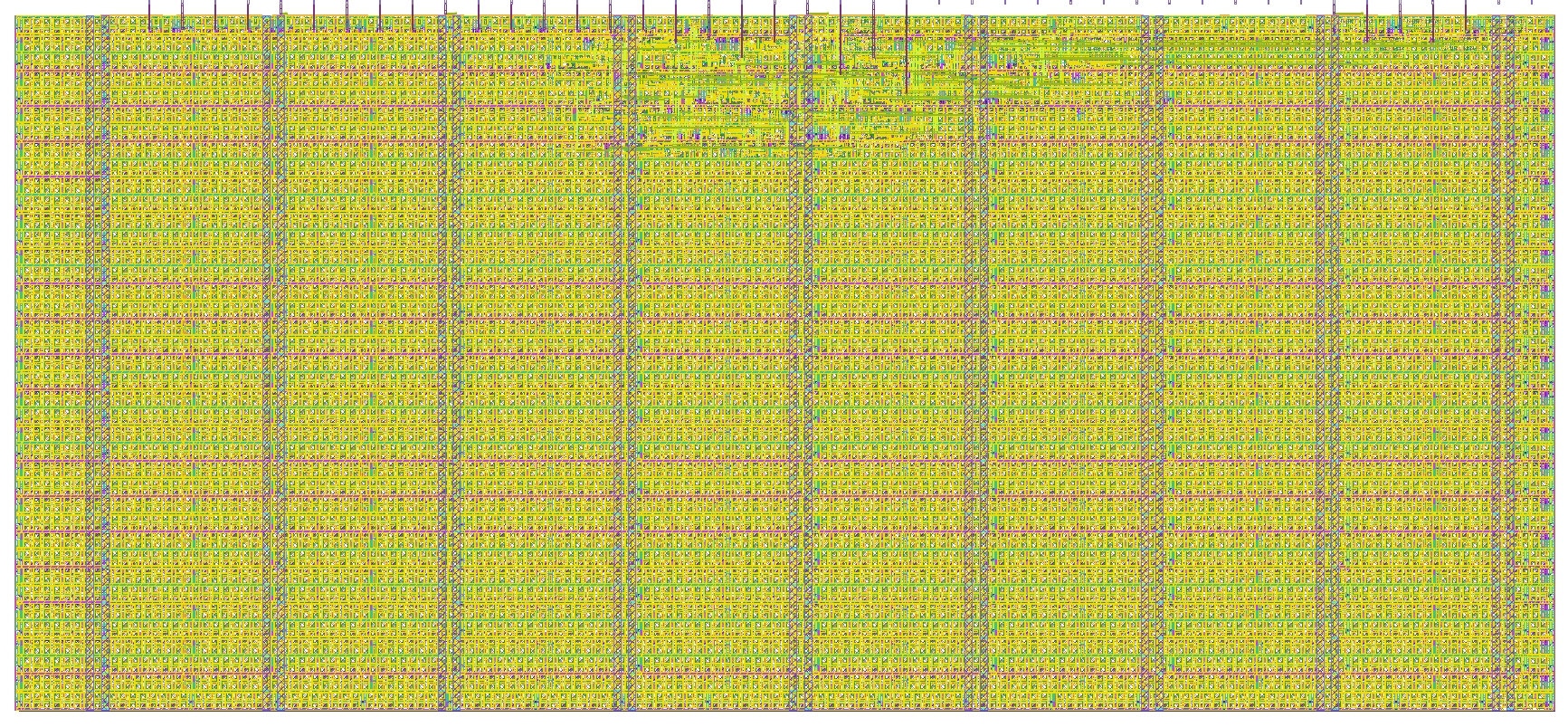

- Open in 3D viewer
- Clock: 0 Hz
How it works
The 8-bit SPI configuration register consists of a shift register and an output latch.
The SPI interface shifts in the next value of the register on MOSI when chip select (CS) is low (shifting is done MSB-first). Once CS is high, the register outputs update to the current value of the shift register (even if less/more than 8 clocks were received).
The design also includes an active-high asynchronous clear signal which is used to reset the state of the register to a default value.
The 8-bit parallel output of the register is accessible from the output pins.
The IP is intended to be eventually used to write configuration bits to analog/mixed-signal designs with limited pin access.
How to test
Note: see pinout table for pin location information.
By default, the register should read the value 0xAA.
Use the protocol stated above to write to the 8-bit register and check the parallel output.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | SCLK | CONFIG[0] | |
| 1 | MOSI | CONFIG[1] | |
| 2 | CSN | CONFIG[2] | |
| 3 | CLR | CONFIG[3] | |
| 4 | CONFIG[4] | ||
| 5 | CONFIG[5] | ||
| 6 | CONFIG[6] | ||
| 7 | CONFIG[7] |
