TT06 analog infrastructure confirmed working
Good news for everyone who put analog designs on TT06, TT07, and TT08.
Tiny Tapeout Team
•6 November 2024
First mixed signal design generating a sawtooth!
Huge news! Analog infrastructure on TT06 is working!
Matt Venn’s first mixed signal design generates a sawtooth wave, proof that the analog infrastructure is functioning as intended.

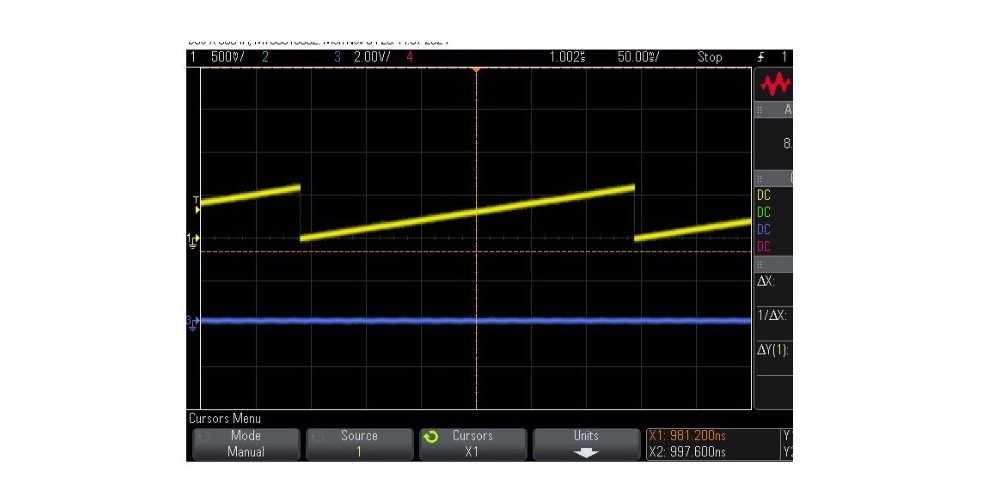

The oscilloscope capture shows a clean sawtooth output, demonstrating that designers can now build and test analog circuits on Tiny Tapeout silicon.
Here are the specs and the basic starting guide for those interested!
Check out this video to find out more.
