130 Tiny Tapeout Template

130 : Tiny Tapeout Template

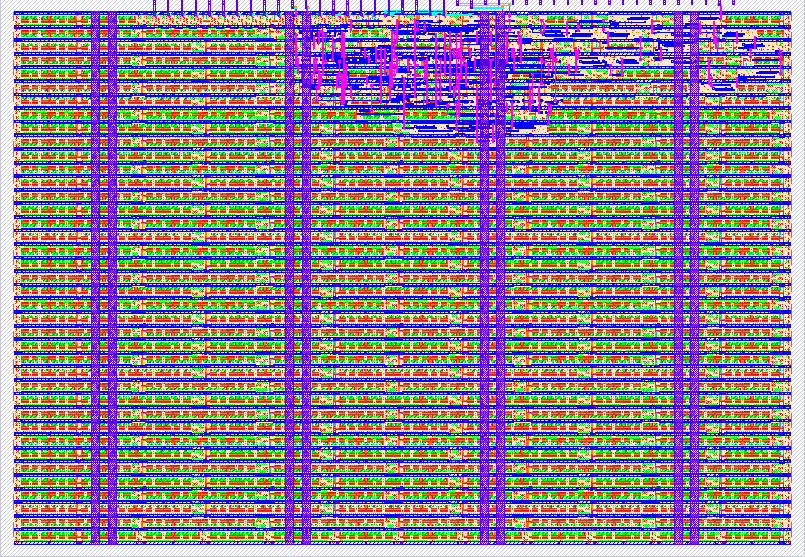

Design render

How it works

A 4-bit down counter is a digital circuit that counts backward in binary from 1111 (decimal 15) down to 0000 (decimal 0). It consists of four flip-flops, each holding one bit of the binary number: Q3 is the most significant bit and Q0 is the least significant bit. Every time a clock pulse arrives, the counter subtracts one from its current value. The outputs change in a fixed sequence: 1111 → 1110 → 1101 → … → 0001 → 0000, and then it returns to 1111 again.

How to test

I dunno, if it counts downwards from F-0 it works

External hardware

7 segment display

IO

#InputOutputBidirectional
0I0O0
1I1O1
2I2O2
3I3O3
4I4O4
5I5O5
6I6O6
7I7O7
