173 Wowki
173 : Wowki
- Author: Arwin Ghahremanian
- Description: Wokwi
- GitHub repository

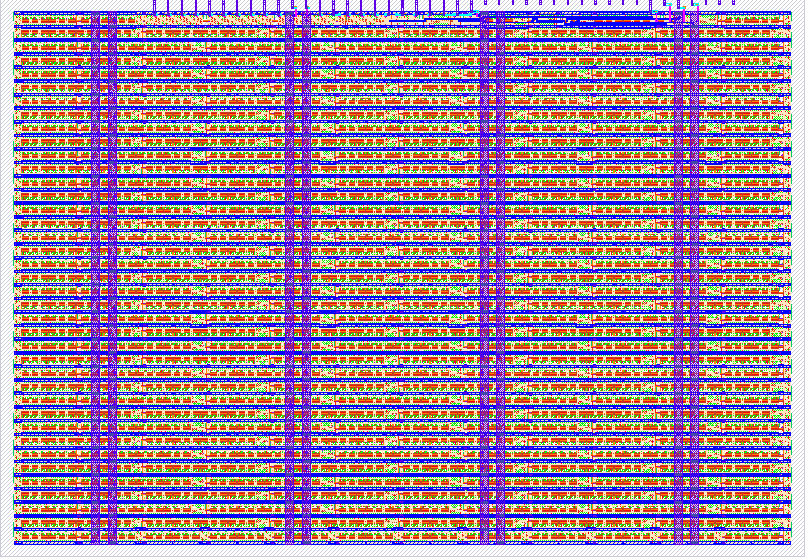

- Open in 3D viewer
- View in Wokwi
- Clock: 1 Hz
How it works
it makes 678 by pressing either on the first four switches
How to test
flick the butttons and play around
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | If it is on and ui[1] is off and either ui[2] is off or ui[3] is off it displays a 6 but if both ui[2] or ui[3] are on then nothing pops up but if this and ui[1] are off while both ui[2] and ui[3] are on then 7 pops up but if this and ui[1] are off and only one of ui[2] and ui[3] are on then it displays an 8 | ||
| 1 | If it is off and ui[0] is on and ui[2] is off and ui[3] is off it displays a 6 but if both ui[2] or ui[3] are on then nothing pops up but if this and ui[0] are off while both ui[2] and ui[3] are on then 7 pops up but if this and ui[0] are off and only one of ui[2] and ui[3] are on then it displays an 8 | ||
| 2 | what it said above | ||
| 3 | what it said above | ||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
