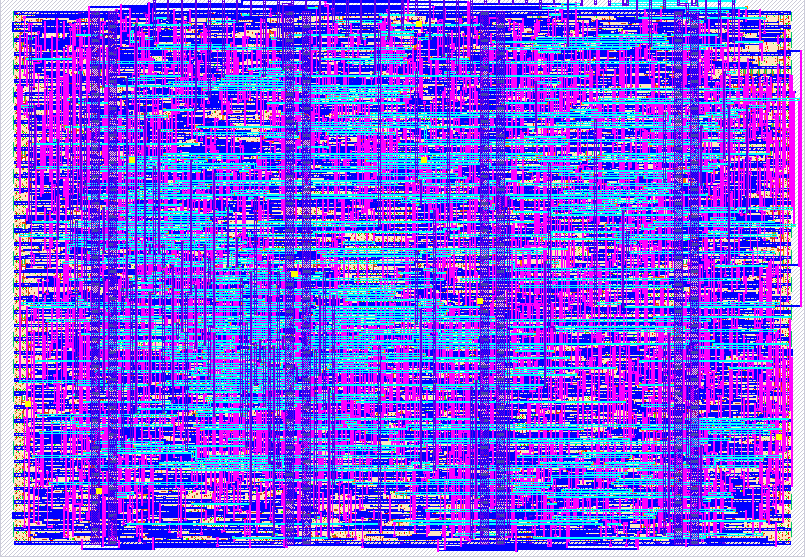

How it works

This design implements five gatable ring oscillators (7, 11, 15, 21, and 31 sky130_fd_sc_hd inverter-chain stages, each with a NAND2 enable gate) together with a 16-bit frequency counter, a three-stage CDC synchronizer, an auto gate timer, a configurable prescaler, an XOR-jitter true random number generator (TRNG), a frequency-bounds health monitor, and a differential (beat-frequency) measurement mode. It is intended for silicon PVT characterization, on-chip entropy, and fault/aging detection.

The block supports two control modes, selected by ui_in[6] (spi_mode):

Parallel mode (spi_mode=0) — ro_sel[2:0] (ui_in[2:0]) chooses one of the five ROs, cnt_enable (ui_in[3]) starts/stops counting, a rising edge on cnt_clear_latch (ui_in[4]) latches the 16-bit count and clears the accumulator, and byte_sel (ui_in[5]) multiplexes uo_out between the low (0) and high (1) bytes of the latched count. uio_out[4] is the overflow flag, uio_out[5] exposes the raw RO output, uio_out[6] the synchronized RO output, and uio_out[7] is meas_done from the auto gate timer.
SPI mode (spi_mode=1) — a 16-bit SPI slave (Mode 0, MSB first; CS on uio_in[0], MOSI on uio_in[1], MISO on uio_out[2], SCK on uio_in[3]) exposes a register file: reg_ctrl (0x00, [0]=auto_gate_start self-clearing, [1]=clear_meas_done), reg_ro_sel (0x01, 3-bit), reg_ro_en (0x02, 5-bit per-RO enable — reset default 0x1F), reg_gate_l/h (0x03/0x04, 16-bit auto-gate count), reg_prescale (0x05, [1:0] selecting ÷8/÷16/÷32/÷64; reset default ÷16), reg_status (0x06, read-only: [0]=gate_active, [1]=overflow, [2]=meas_done), reg_count_l/h (0x07/0x08, read-only latched count), reg_trng_ctrl (0x09, [0]=trng_en, [1]=health_en, [2]=diff_mode), reg_diff_sel (0x0A, 3-bit RO_B selector for beat-frequency/XOR), reg_health_lo/hi (0x0B/0x0C, bounds), reg_trng_data (0x0D, read-only), reg_health_status (0x0E, read-only).

The raw RO is synchronized into the system clock domain through a 3-stage flip-flop synchronizer (with an optional ÷8/÷16/÷32/÷64 prescaler ahead of it) before being rising-edge detected and counted. When diff_mode is set, two user-selected ROs are XORed prior to counting, producing the beat frequency |f_A − f_B|, which is very sensitive to local PVT mismatch. The TRNG collects XOR jitter bits into an 8-bit register readable at reg_trng_data; the health monitor flags the selected RO against reg_health_lo/reg_health_hi bounds into reg_health_status.

How to test

Apply reset (rst_n low for ≥10 clock cycles, then release).
Simple parallel measurement: set spi_mode=0, write ro_sel[2:0] to select RO (0=7, 1=11, 2=15, 3=21, 4=31), pulse cnt_enable high for the desired gate time, pulse cnt_clear_latch high for ≥1 cycle to latch the count, then toggle byte_sel and read uo_out to retrieve the low and high bytes of the 16-bit count. Check uio_out[4] for overflow.
SPI-timed measurement: set spi_mode=1, write reg_gate_l/h with the desired gate cycle count, set reg_ctrl[0]=1 to start the auto gate timer, poll reg_status (or watch uio_out[7] = meas_done) for completion, and read reg_count_l / reg_count_h. Write reg_ctrl[1]=1 to clear meas_done before the next run.
TRNG: in SPI mode, set reg_trng_ctrl[0]=1 and enable at least two ROs; read reg_trng_data (0x0D) to consume 8 jitter-XOR bits.
Health monitor: set reg_trng_ctrl[1]=1, write reg_health_lo/reg_health_hi to the expected frequency window, and read reg_health_status (0x0E) after each gate.
Differential mode: set reg_trng_ctrl[2]=1, set reg_ro_sel to RO_A and reg_diff_sel to RO_B, then gate as usual — the count represents |f_A − f_B|.

A cocotb test suite (30 tests in test/test.py) exercises parallel counting, SPI register roundtrip, auto gate timing, prescaler selection, TRNG/health/differential modes, and uio_oe direction control. All tests pass on the RTL. Gate-level simulation is intentionally skipped in CI because the real sky130 inverter-chain ring oscillators produce ≈10⁹ events/s of simulated time and are not tractable in icarus.

External hardware

No external hardware is required for core operation. For SPI control, an SPI master (microcontroller or FPGA) is connected to uio[0] (CS), uio[1] (MOSI), uio[2] (MISO), uio[3] (SCK) at any clock rate up to half the system clock. Optional: an oscilloscope on uio_out[5] (raw RO) and uio_out[6] (synced RO) for direct frequency observation, and any 8-bit digital sink (logic analyzer or microcontroller GPIO) on uo_out[7:0] for reading the latched count byte in parallel mode.

#	Input	Output	Bidirectional
0	ro_sel[0]	freq_count[0]	spi_cs_n
1	ro_sel[1]	freq_count[1]	spi_mosi
2	ro_sel[2]	freq_count[2]	spi_miso
3	cnt_enable	freq_count[3]	spi_sck
4	cnt_clear_latch	freq_count[4]	overflow
5	byte_sel	freq_count[5]	ro_raw_out
6	spi_mode	freq_count[6]	ro_synced
7		freq_count[7]	meas_done
