258 Abad2048

258 : Abad2048

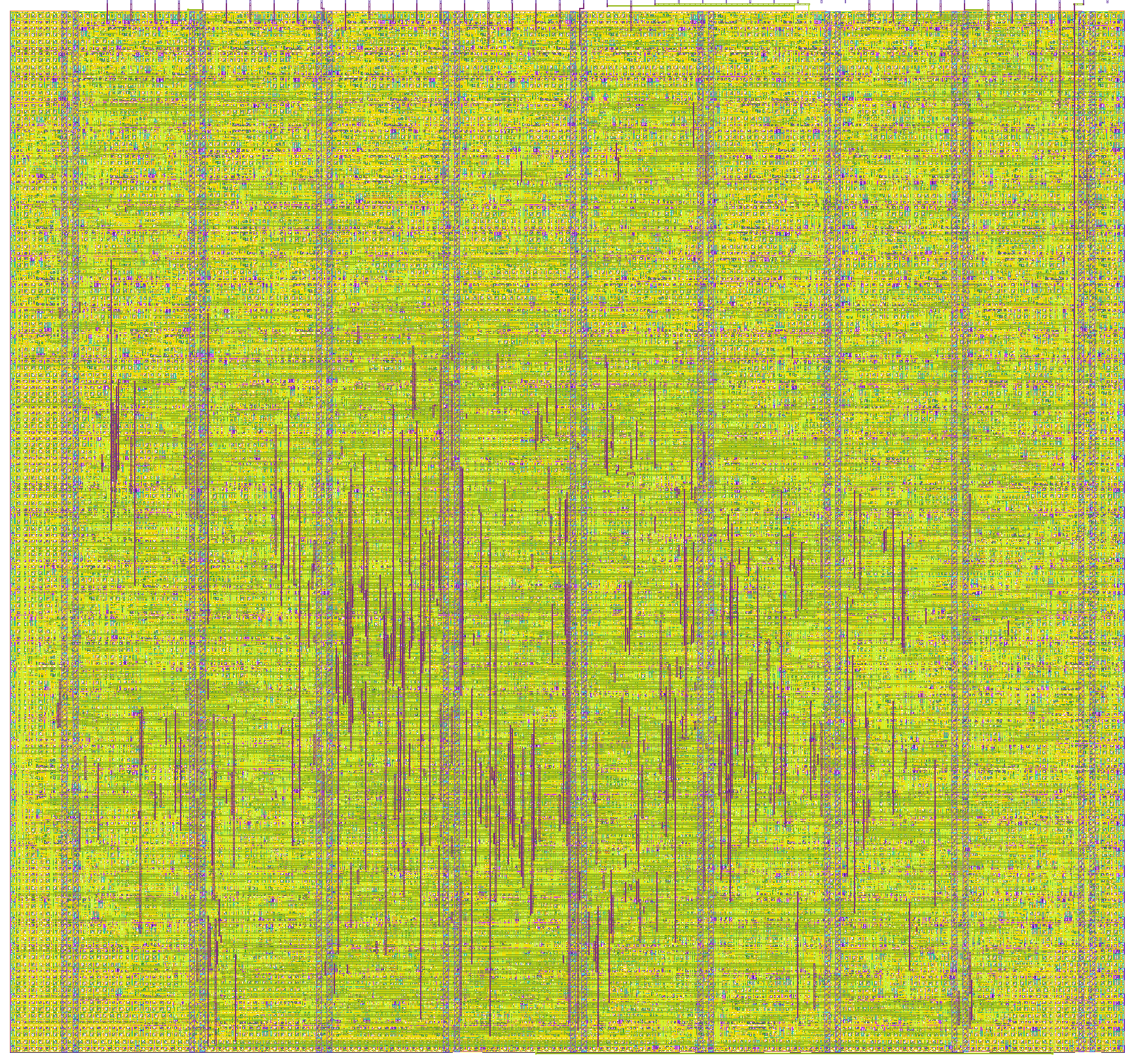

Design render

How it works

2048 game Video: https://www.linkedin.com/posts/alexander-co-abad-79445767_i-managed-to-replicate-the-2048-game-and-activity-7471442185091981313-8tYN?utm_source=share&utm_medium=member_desktop&rcm=ACoAAA4gaKABRk1KxBdDQFTnsu-IalkZq-7v9R4

Link to the VGA Playground: https://vga-playground.com/?repo=https://github.com/alexandercoabad/Abad_2048

How to test

Use the arrow keys on your keyboard or your game controller if you use the FPGA! Link to the VGA Playground: https://vga-playground.com/?repo=https://github.com/alexandercoabad/Abad_2048

External hardware

VGA FPGA

IO

#InputOutputBidirectional
0leftR1
1rightG1
2upB1
3downVSync
4R0
5G0
6B0
7start/resetHSync
