389 Traffic Light FSM
389 : Traffic Light FSM
- Author: Eric Kiecksee
- Description: Simple traffic light FSM for intersection with main road, side road and pedestrian phases
- GitHub repository

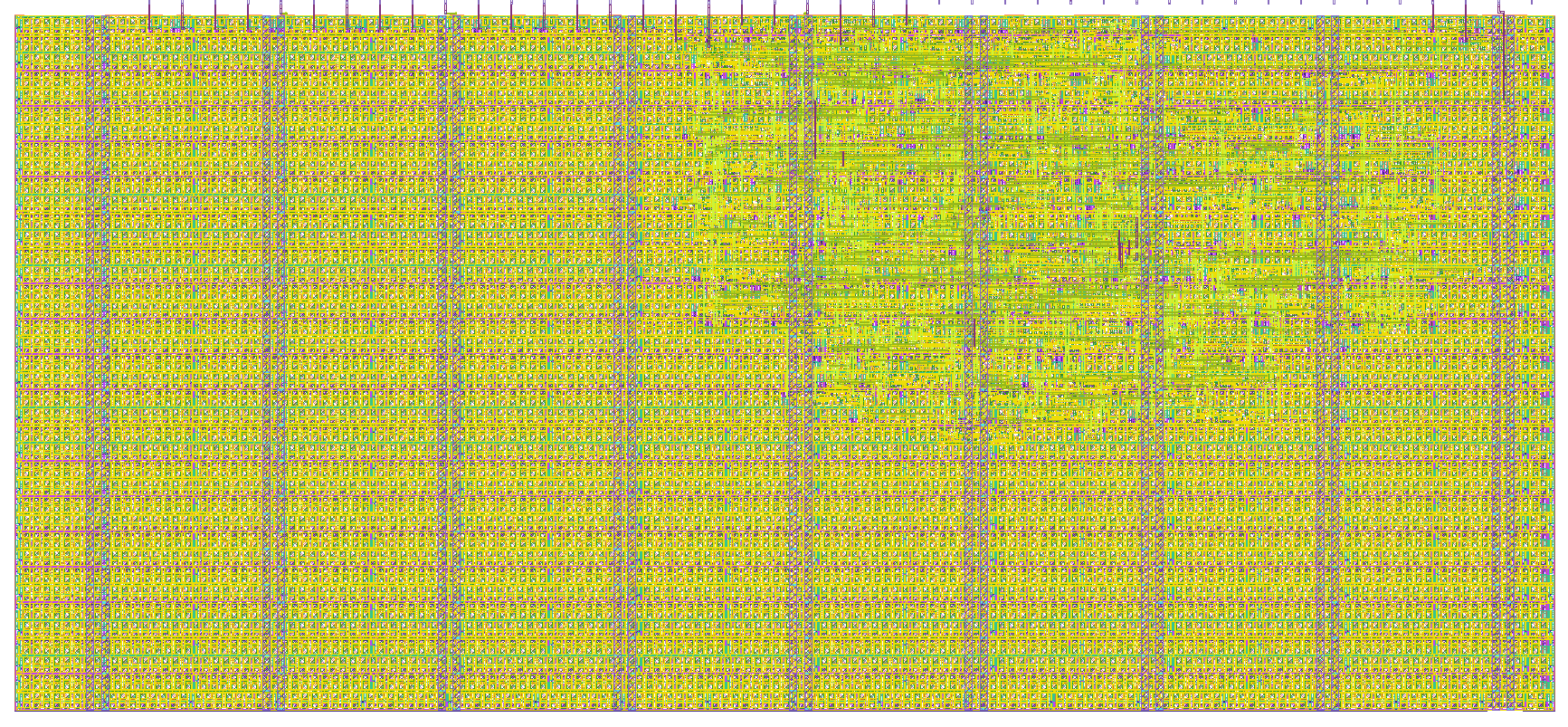

- Open in 3D viewer
- Clock: 12000000 Hz
How it works
A digital traffic light controller implemented as a finite state machine (FSM) in Verilog. The design cycles through RED, YELLOW, and GREEN phases with durations controlled by an internal timer module.
How to test
The design implements a traffic light FSM with five states (S0–S4) controlling three sets of lights: main road, side road, and pedestrian.
Inputs
| Signal | Description |
|---|---|
clk |
12 MHz system clock |
rst_n |
Asynchronous reset, active low |
ped_req |
Pedestrian request, active high |
Outputs
| Signal | Description |
|---|---|
main_green |
Main road green light |
main_yellow |
Main road yellow light |
main_red |
Main road red light |
side_green |
Side road green light |
side_yellow |
Side road yellow light |
side_red |
Side road red light |
ped_green |
Pedestrian green light |
ped_red |
Pedestrian red light |
Test Procedure
Test 1 — Reset:
Assert rst_n = 0 for at least two clock cycles, then release.
Verify that main_green = 1, side_red = 1, ped_red = 1 within one clock
cycle after release. All other outputs must be low.
Test 2 — Normal state sequence:
Verify the FSM cycles through S0 (10 s) → S1 (2 s) → S2 (5 s) → S3 (2 s) → S0 without entering S4.
When ped_req = 0.
Verify that main_yellow = 1 immediately before main_red becomes active,
and side_yellow = 1 immediately before side_red becomes active.
Test 3 — Pedestrian request:
Assert ped_req = 1 briefly during S0, then release before S1.
Verify the FSM follows S0 → S1 → S4 (3 s) → S2 → S3 → S0.
During S4, ped_green = 1 and main_red = side_red = 1.
Test 4 — Mutual exclusion: At every clock cycle, verify:
main_green AND side_greenis never highped_green AND main_greenis never highped_green AND side_greenis never high
External hardware
8 LEDs connected to the output signals main_green, main_yellow, main_red, side_green, side_yellow, side_red, ped_green, ped_red with appropriate current-limiting resistors (330 Ω recommended).
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | Pedestrian Button | Main Green | NC |
| 1 | NC | Main Yellow | NC |
| 2 | NC | Main Red | NC |
| 3 | NC | Side Green | NC |
| 4 | NC | Side Yellow | NC |
| 5 | NC | Side Red | NC |
| 6 | NC | Pedestrian Green | NC |
| 7 | NC | Pedestrian Red | NC |
