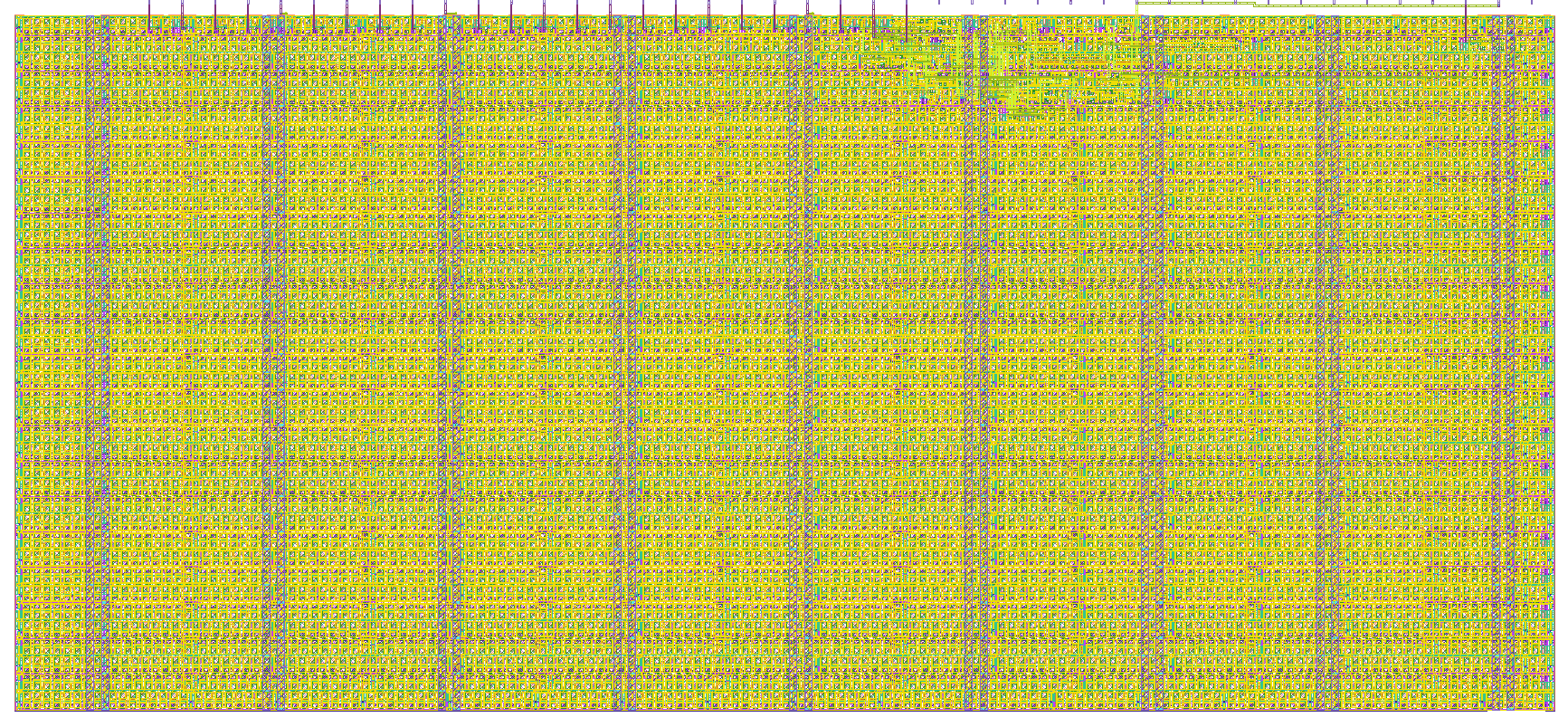

- Open in 3D viewer
- Clock: 0 Hz
TRNG using Ring Oscillator
How it works
This project implements a True Random Number Generator (TRNG) using a Ring Oscillator.
The ring oscillator continuously oscillates because of inverter delay. A sampler captures the oscillating signal using a clock signal. The sampled bits are checked using a health checker to detect repeated patterns. Post-processing improves randomness and generates the final random output bits.
Main modules used:
- Ring Oscillator
- Sampler
- Health Checker
- Post Processing Unit
How to test
- Run Verilog simulation using Icarus Verilog.
- Open waveform using GTKWave.
- Observe oscillation in the ring oscillator.
- Observe sampled random bits and clean output bits.
Simulation commands:
iverilog -o trng_out *.v
vvp trng_out
gtkwave trng.vcd
