39 FPGA
39 : FPGA
- Author: Can Lehmann
- Description: A tiny FPGA
- GitHub repository

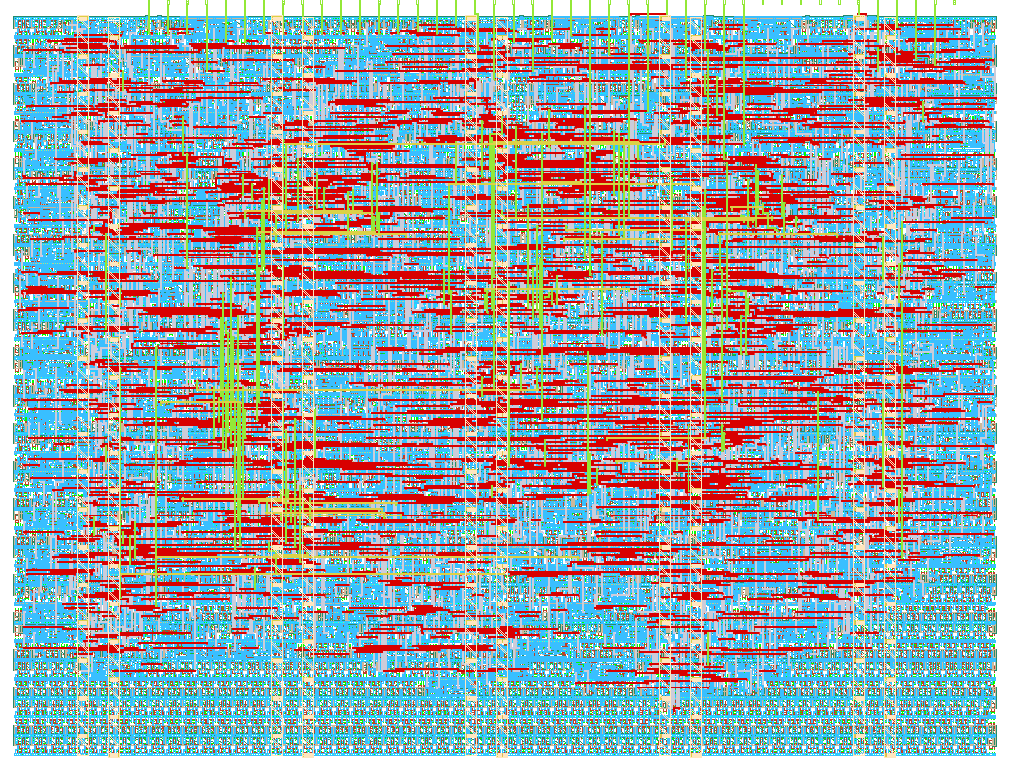

- Open in 3D viewer
- Clock: 25000000 Hz
How it works
This project implements a tiny FPGA. The design is essentially a crossbar which connects 8 Inputs, 8 LUTs and 4 output ports. Because of the small size, I decided not to do any routing fabric besides the crossbar.
How to test
Important: Tie Virtual Reset high before powering on the chip.
- Tie the
Virtual Resetpin high to ensure that you don't accidentally get a combinatorial loop on startup. - Power on the chip.
- Load in a bitstream using the
Program DataandProgram Enablepins. The configuration is stored in a shift register, so you can load in the configuration one bit at a time. - Disable
Virtual Resetand observe your design in action!
Some of examples of what might be possible:
- Simple combinatorial logic.
- Toggling an output.
- A 4-bit counter that counts from 0 to 15 and then wraps around.
See the testbench for examples.
External hardware
No external hardware is required to run this project.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | Program Data | out[0] | in[0] |
| 1 | Program Enable | out[1] | in[1] |
| 2 | Virtual Reset | out[2] | in[2] |
| 3 | out[3] | in[3] | |
| 4 | in[4] | ||
| 5 | in[5] | ||
| 6 | in[6] | ||
| 7 | in[7] |
