682 nVious Graphics

682 : nVious Graphics

Design render

How it works

This circuit adds retro graphics to existing Tiny Tapeout projects. Several dozen previous and current projects make use of the 7-segment LED display. This project leverages those existing circuits as a source input by connecting their output to the input of this circuit and then connecting this circuit to a VGA display. Potentially, the VSYNC signal could even be connected to the source circuit to drive the clock and achieve frame synchronization--call it Tapeout Synchronization, or T-SYNC.

box art

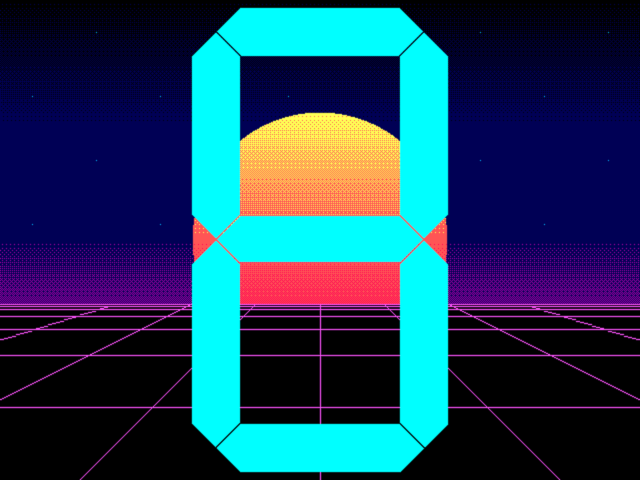

Below is an example of a frame from the VGA (640 x 480 @ 60 FPS) output.

example VGA output

How to test

Basic Functionality

No source input required. Plug into a VGA monitor, select this circuit to test, clock it at 25.175 MHz and reset. There is a VGA demo that runs without input, but this circuit also accepts 8-bit input on the ui_io[7:0] pins to display a virtual 7-segment LED display (with decimal).

External Input

To test the user input functionality, connect the ui_io[7:0] pins to another source input. The idea is that this would be a possibly useful graphical extension to the dozens of existing projects that utilize the 7-segment LED display to show their results on a monitor.

External hardware

Requires the TinyVGA PMOD

IO

#InputOutputBidirectional
0Segment AR1
1Segment BG1
2Segment CB1
3Segment DVSync
4Segment ER0
5Segment FG0
6Segment GB0
7Segment HHSync
