How it works

This project implements a Direct Digital Synthesis (DDS) waveform generator.

The core of the design is a Phase Accumulator that increases every clock cycle by a programmable frequency control word (freq_word). The output frequency follows the standard DDS formula:

$f_{out} \approx \frac{freq_word}{2^{16}} \cdot f_{clk}$

The most significant bits (MSB) of the accumulator are used to generate five different waveforms:

Sine: Generated via a 16-entry Lookup Table (LUT).
Sawtooth: Derived directly from the phase value.
Square: Generated by checking the MSB of the phase (50% duty cycle).
Triangle: Created by bit-manipulation of the phase (inverted ramp).
Quadratic: A parabolic curve generated by squaring the phase value.

The design is optimized for a 50 MHz system clock and provides an 8-bit digital output.

Control Table (ui_in[7:0])

The 8-bit input controls the generator's behavior:

Bits	Function
[7:6]	Frequency Control
[5:3]	Amplitude Control
[2:0]	Waveform Selection

Waveform Selection (ui_in[2:0])

Bits	Function
000	Sine
001	Sawtooth
010	Square
011	Triangle
100	Quadratic

Frequency Control (ui_in[7:6])

Bits	freq_word (Dec)	Description
00	128	Low frequency
01	512	Medium-low
10	1024	Medium-high
11	4096	High frequency

Amplitude Control (ui_in[5:3])

Bits	Level	Scaling Factor
000	Low	12.5%
001	Medium-Low	25%
010	Medium-High	50%
111	Maximum	100%

How to test

Apply a 50 MHz clock to clk and release reset (rst_n = 1).
Set ui_in to select your desired output (e.g., 8'b00_111_000 for a 100% Amplitude Sine Wave at low frequency).
Observe the 8-bit output uo_out.

Simulation in Vivado

Run the behavioral simulation using the provided test/tb.v.
To view the signals exactly as shown in the documentation, open the pre-configured waveform file: test/waveforms/main_waveform_config.wcfg

Simulation Results

The image below demonstrates the transitions between different waveforms and the impact of amplitude scaling.

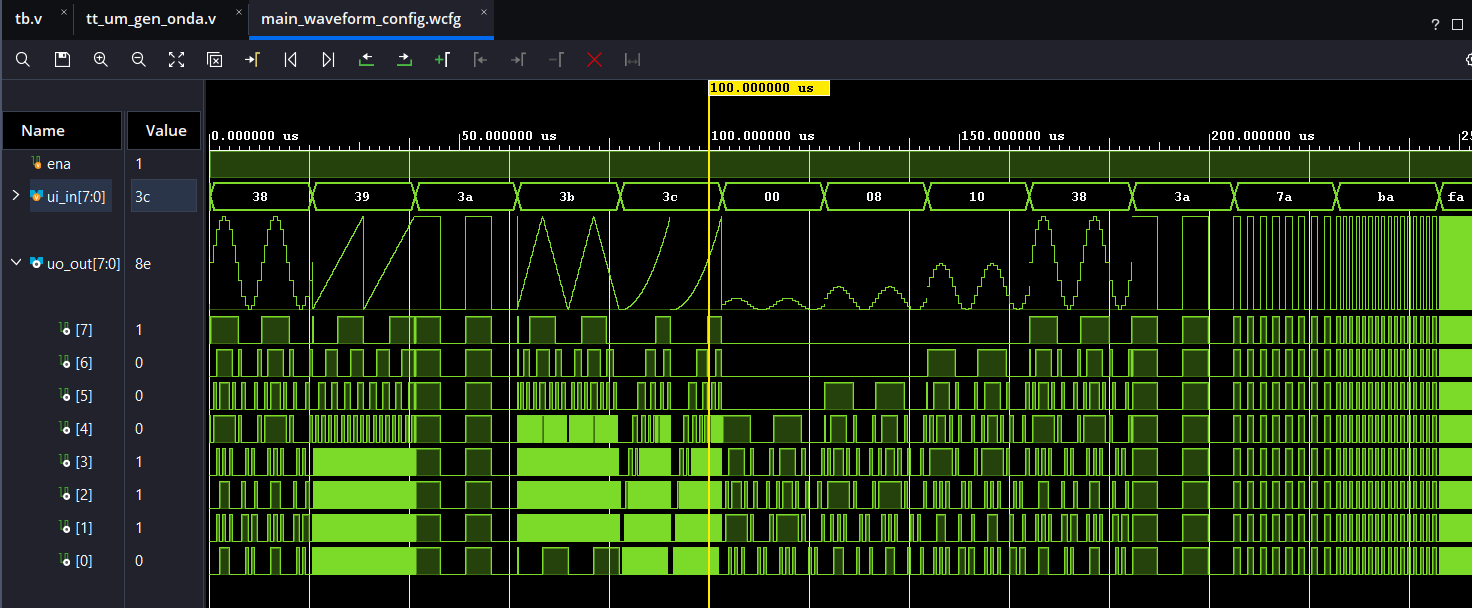

Vivado Simulation Waveform

Note: The uo_out signal is displayed in 'Analog' style with 'Hold' interpolation for better visualization.

External Hardware

To visualize the generated waveforms on an oscilloscope, an external Digital-to-Analog Converter (DAC) is required.

Recommended DAC Characteristics

Resolution: 8-bit (to match uo_out).
Input: Parallel digital input.
Voltage Range: 0V to 3.3V.
Sample Rate: Supports up to 50 MHz.

Implementation Options

1. R-2R Resistor Ladder (Recommended)

Building an R-2R ladder is the most direct way to convert the 8-bit parallel data.

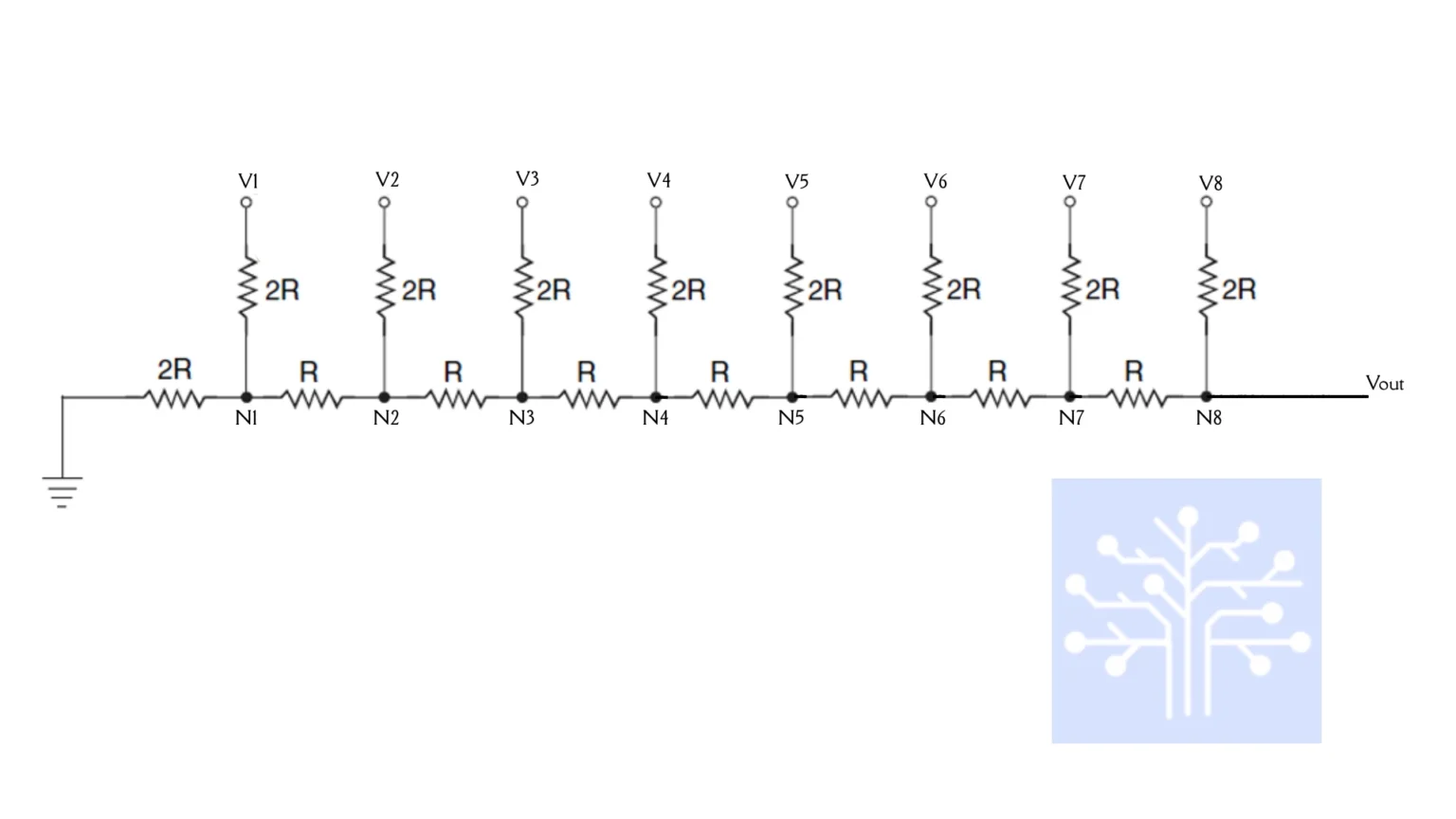

Basic Scheme for a R2R DAC

Pro Tip: Use 1% precision resistors to ensure the linearity of the analog steps and avoid "ghosting" or distortion in the signal.

2. Dedicated DAC IC

For higher signal integrity, use a parallel-input DAC like the DAC0808. If using a serial DAC (SPI/I2C), external shift registers will be necessary to convert the parallel output.

#	Input	Output
0	func_sel[0]	out[0]
1	func_sel[1]	out[1]
2	func_sel[2]	out[2]
3	amp_ctrl[0]	out[3]
4	amp_ctrl[1]	out[4]
5	amp_ctrl[2]	out[5]
6	freq_ctrl[0]	out[6]
7	freq_ctrl[1]	out[7]
