How it works

The Hénon map is a discrete-time dynamical system that exhibits chaotic behaviour. It is defined by two coupled equations — x = 1 - a·x² + y and y = b·x — which, under the classical parameters a = 1.4 and b = 0.3, produce a bounded strange attractor. This implementation computes the map in 10-bit signed fixed-point (Q2.8) and serialises the resulting (x, y) samples as raw bit streams for off-chip readout.

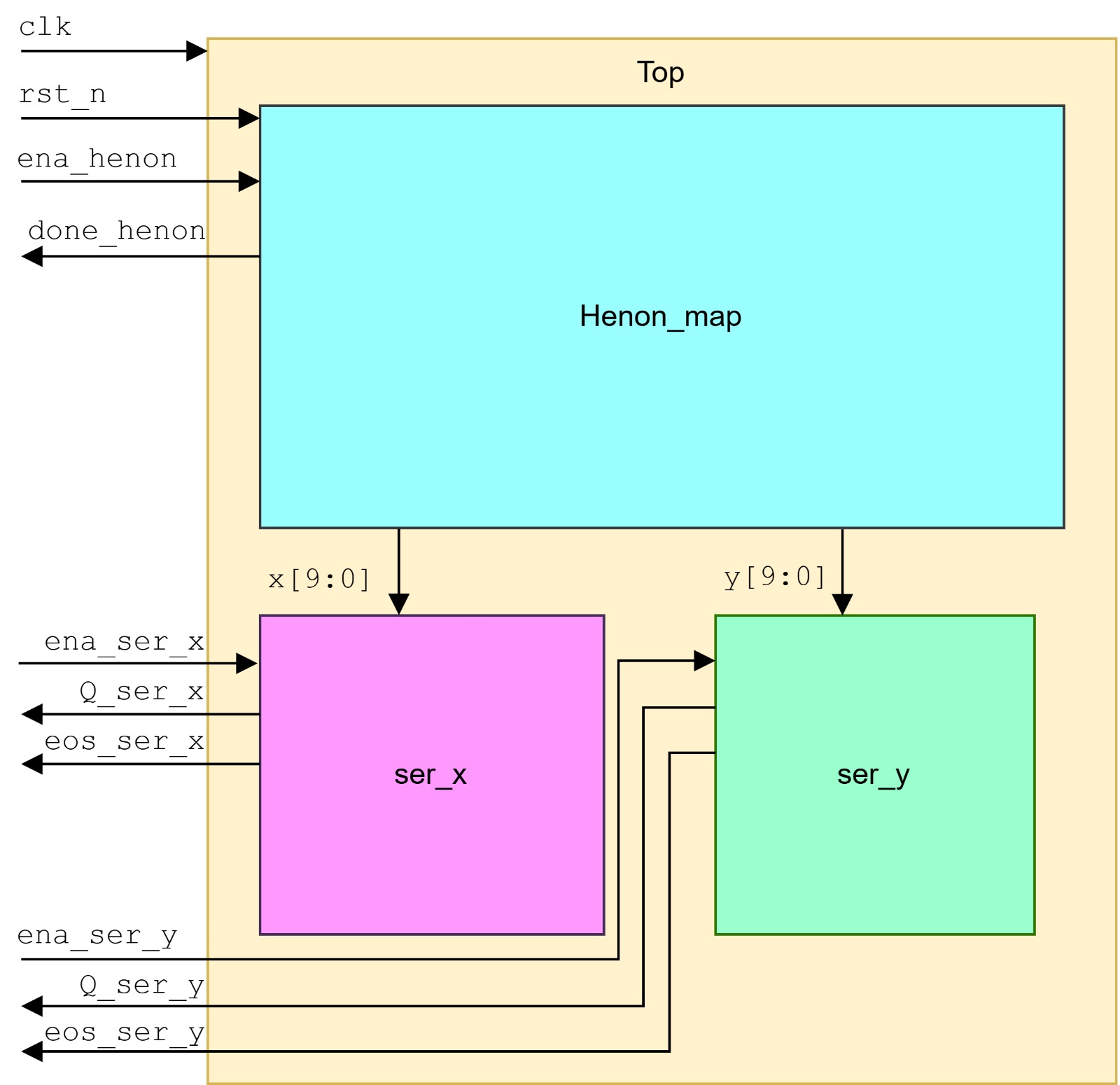

The top module instantiates three sub-blocks:

Henon_map — computes the two recurrences x = 1 - a·x² + y and y = b·x using fixed-point arithmetic with constants a = 1.4 and b =.3. Asserts done_henon once the first valid sample is available.
ser_x — receives the 10-bit x[9:0] output and serialises it as a raw bit stream on Q_ser_x, with eos_ser_x flagging end-of-sequence.
ser_y — identical serialiser for the 10-bit y[9:0] output, independently enabled via ena_ser_y.

Alt text

All internal arithmetic uses Q2.8 (10-bit signed, scale = 256). The Hénon attractor is bounded to x ∈ [−1.5, 1.5] and y ∈ [−0.4, 0.4].

How to test

1. Reset the system

Set:

rst_n = 0 for a few clock cycles
Then set rst_n = 1

Initial state: x = 0, y = 0

2. Generate Henon data

Set:

ena_henon = 1

Then:

New values are generated every clock cycle
done_henon indicates valid outputs

3. Capture a sample

Wait until:

done_henon = 1

At that moment:

x_out and y_out contain valid data

4. Serialize X output

Pulse: ena_ser_x = 1 (for 1 clock cycle)
Then: ena_ser_x = 0
Observe:

Q_ser_x: outputs 10 bits (LSB first)
One bit per clock cycle

Wait for:

eos_x = 1

5. Serialize Y output

Repeat the same process:

Pulse: ena_ser_y = 1
Read:

Q_ser_y

Wait for:

eos_y = 1

6. Expected behavior

First outputs may be zero due to initialization
Subsequent values follow Henon chaotic dynamics
Serial output:
- 10 bits per value
- LSB first
- eos_* marks completion

How to connect

Signal	Dir	Description
`clk`	in	System clock
`rst_n`	in	Active-low synchronous reset
`ena_henon`	in	Enable Hénon map iteration
`done_henon`	out	High when valid sample is ready
`ena_ser_x`	in	Start serialisation of x
`Q_ser_x`	out	Serial bit stream for x
`eos_ser_x`	out	End-of-sequence flag for x
`ena_ser_y`	in	Start serialisation of y
`Q_ser_y`	out	Serial bit stream for y
`eos_ser_y`	out	End-of-sequence flag for y

External hardware

To test this design on real hardware, the following is required:

Required hardware

Tiny Tapeout demo board (with the fabricated chip installed)
USB cable for power and communication
A computer to configure and monitor the board

Optional but recommended

Logic analyzer (recommended) to observe serial outputs:
- Q_ser_x
- Q_ser_y
Alternatively:
- LEDs (to visualize activity)
- Oscilloscope (to inspect timing and bitstream)
