267 Ring oscillator VCO and Differential Amplifier
267 : Ring oscillator VCO and Differential Amplifier
- Author: Vipul Sharma
- Description: Current-controlled analog VCO
- GitHub repository

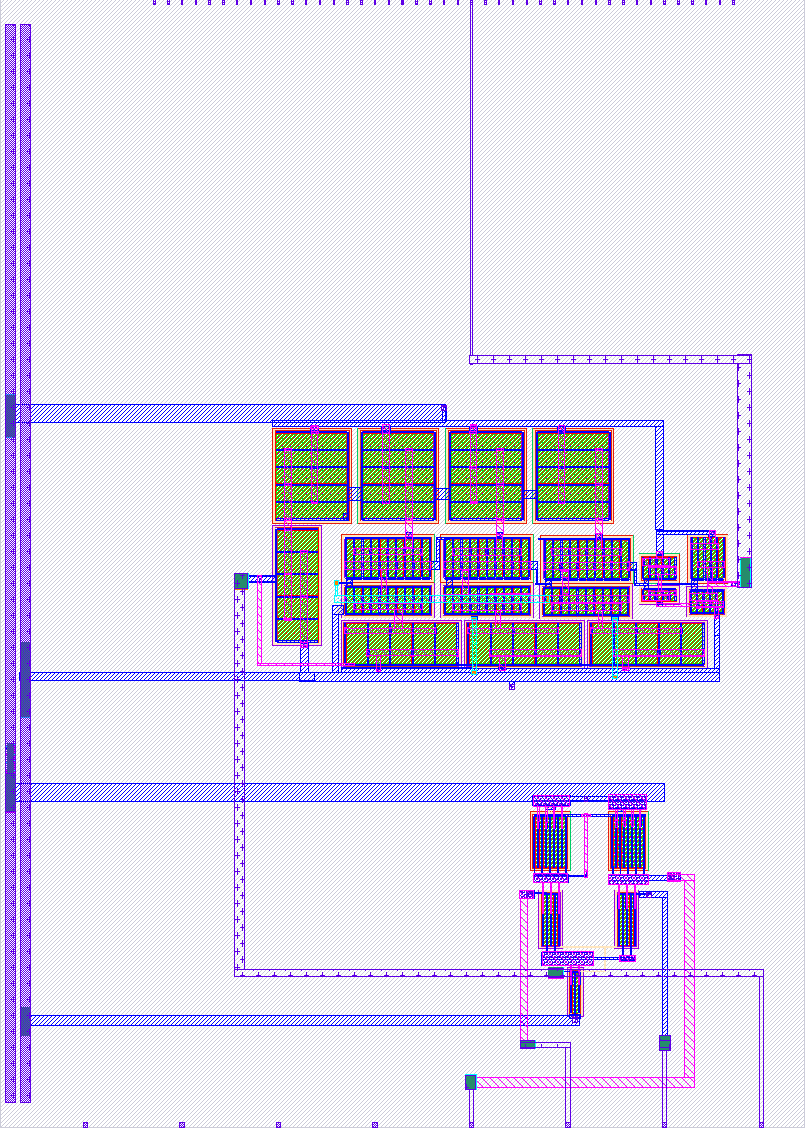

- Open in 3D viewer
- Clock: 0 Hz
How it works
This project implements a 3-stage current-starved ring VCO designed in the SkyWater Sky130 130nm open-source PDK. The oscillator core uses PMOS current-source loads and NMOS tail-current sources controlled by a single control voltage (Vctrl). By varying Vctrl, the current through each delay stage is starved or boosted, directly tuning the oscillation frequency. A two-stage CMOS output buffer ensures rail-to-rail swing and isolates the oscillator core from external capacitive loading. The VCO achieves a tuning range of approximately 5.27 MHz to 57.57 MHz across Vctrl = 0.7V to 1.7V.
How to test
- Set VDD = 1.8V (nominal supply).
- Sweep Vctrl from 0.7V to 1.7V in 0.1V steps.
- Measure oscillation frequency at the buffered output — expected range ~5 MHz to ~57 MHz.
- Verify frequency vs. Vctrl matches the characterization table (TT corner, 27°C).
- For corner verification, repeat at FF (−40°C) and SS (85°C) conditions.
- Optionally load the output with 10 fF (logic load) or 50 fF (buffer load) to verify load isolation.
External hardware
No external hardware required. The design is a standalone analog VCO core intended for pre-layout simulation using Xschem + ngspice with the Sky130 PDK. No PMOD or external display interfaces are used.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | VCO Frequency output | ||
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
Analog pins
ua | PCB Pin | Internal index | Description |
|---|---|---|---|
| 0 | B0 | 6 | Shared Control/Bias |
| 1 | B1 | 7 | Diff-Amp In+ |
| 2 | B3 | 9 | Diff-Amp In- |
| 3 | B2 | 8 | Diff-Amp Out |
