545 PicoMIPS CPU
545 : PicoMIPS CPU
- Author: Byron Theobald
- Description: Initial Tests and Basic MIPS CPU
- GitHub repository

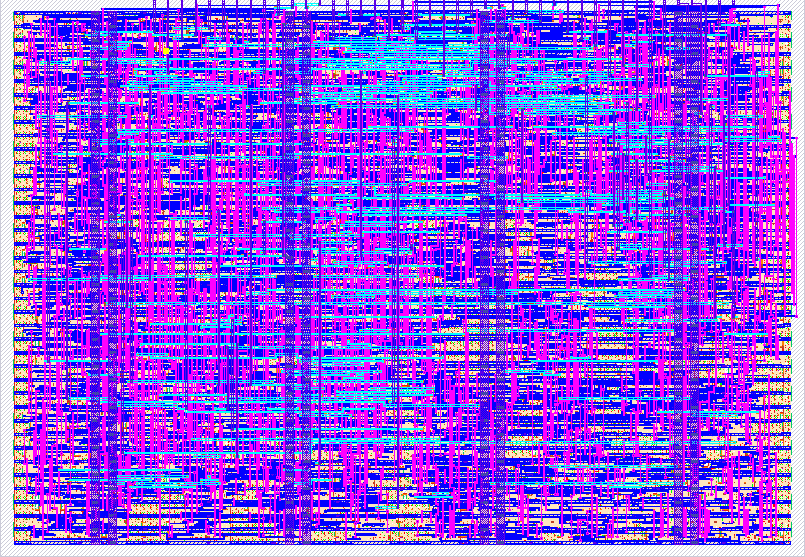

- Open in 3D viewer
- Clock: 40000000 Hz
How it works
Structures currently implemented:
- 3/4 Modulus Prescaler with inverter
- Custom picoMIPS CPU from an old University Project
- 24-bit program word
- 4-bit (16 word) code memory
- 16x8-bit register file
- PC with relative jump and subroutine return
- ALU with Addition / Subtraction / Multiply and Logical Operations, plus immediate ops.
- Shift register to feed instructions, Latches word on deselect if 24-bits have been shifted, generates clock for CPU.
How to test
Input 0 / PRESC_D43 controls the division factor of a clock prescaler, and Output 0 will either be CLK/4 or CLK/3 to be verified using an Oscilloscope. Input 1 will invert the output of the prescaler.
Input 2 / SR_SCK, Input 3 / SR_SDI, Input 4 / SR_SCS, operate the Shift register. It is 24-bits wide, data is latched when chip select is relased.
When PICO_WFI[2] is high, the CPU is halted for input, which should be provided via Bidirectional Pins (PICO_UIO[6] should be high), Input 5 / PICO_INT should be held high. Clock 24-bits into the shift register to continue operation.
PICO_ADDR[4:0] represent the current requested address from the CPU.
PICO_HALT will go high if there is an unrecognised instruction.
SR_TEST can be used to validate operation of the shift register, the bottom 8-bits will appear once the output is latched (24-bits + CS released).
If the processor encounters an unknown instruction, it will halt and PICO_HALT will go high. NRST should be used to recover from a halt.
See Common.sv for the instruction set. You can use //https://hlorenzi.github.io/customasm/web/ as an assembler.
External hardware
- Oscilloscope
pinout:
Inputs
ui[0]: "PRESC_D43" ui[1]: "PRESC_INV" ui[2]: "SR_SCK" ui[3]: "SR_SDI" ui[4]: "SR_SCS" ui[5]: "PICO_INT" ui[6]: "PICO_UIO" ui[7]: "SR_TEST"
Outputs
uo[0]: "PRESC_OUT" uo[1]: "PICO_HALT" uo[2]: "PICO_WFI" uo[3]: "PICO_ADDR[0]" uo[4]: "PICO_ADDR[1]" uo[5]: "PICO_ADDR[2]" uo[6]: "PICO_ADDR[3]" uo[7]: "PICO_ADDR[4]"
Bidirectional pins
uio[0]: "PICO_I/O[0]/SRT[0]" uio[1]: "PICO_I/O[1]/SRT[1]" uio[2]: "PICO_I/O[2]/SRT[2]" uio[3]: "PICO_I/O[3]/SRT[3]" uio[4]: "PICO_I/O[4]/SRT[4]" uio[5]: "PICO_I/O[5]/SRT[5]" uio[6]: "PICO_I/O[6]/SRT[6]" uio[7]: "PICO_I/O[7]/SRT[7]"
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | PRESC_D43 | PRESC_OUT | PICO_I/O[0]/SRT[0] |
| 1 | PRESC_INV | PICO_HALT | PICO_I/O[1]/SRT[1] |
| 2 | SR_SCK | PICO_WFI | PICO_I/O[2]/SRT[2] |
| 3 | SR_SDI | PICO_ADDR[0] | PICO_I/O[3]/SRT[3] |
| 4 | SR_SCS | PICO_ADDR[1] | PICO_I/O[4]/SRT[4] |
| 5 | PICO_INT | PICO_ADDR[2] | PICO_I/O[5]/SRT[5] |
| 6 | PICO_UIO | PICO_ADDR[3] | PICO_I/O[6]/SRT[6] |
| 7 | SR_TEST | PICO_ADDR[4] | PICO_I/O[7]/SRT[7] |
