837 OR Gate with NAND
837 : OR Gate with NAND
- Author: John Pritchard
- Description: Shows how NAND can be organised to give OR logic
- GitHub repository

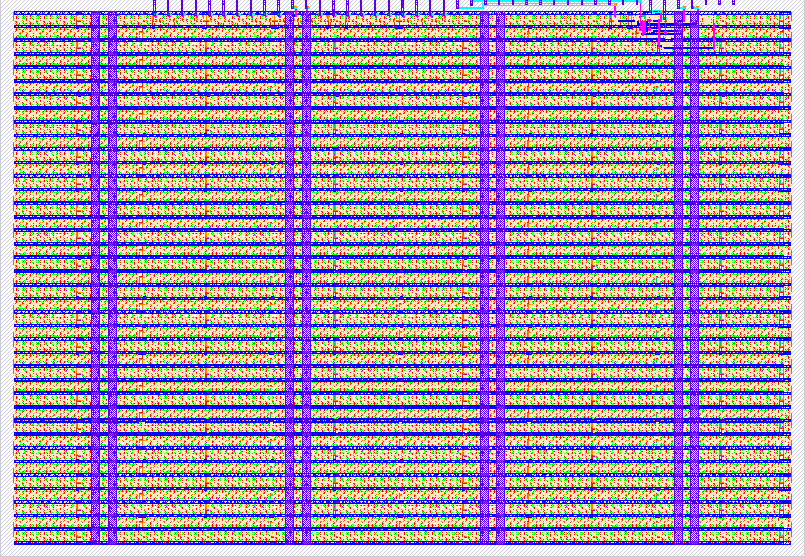

- Open in 3D viewer
- View in Wokwi
- Clock: 0 Hz
How it works
Uses a configuration of NAND gates to give OR logic.
How to test
IN0 and IN1 are inputs for NAND configured as an OR gate. OUT0 is output for NAND configured as an OR gate.
IN2 and IN3 are inputs for OR gate. OUT1 is output for OR gate.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | IN0 | OUT0 | |
| 1 | IN1 | OUT1 | |
| 2 | IN2 | ||
| 3 | IN3 | ||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
