864 TinyTensorCore
864 : TinyTensorCore
- Author: Chris Nassif and Aliaksandr Babich
- Description: A Tensor Core Optimized to Fit in 2 TinyTapeout Tiles
- GitHub repository

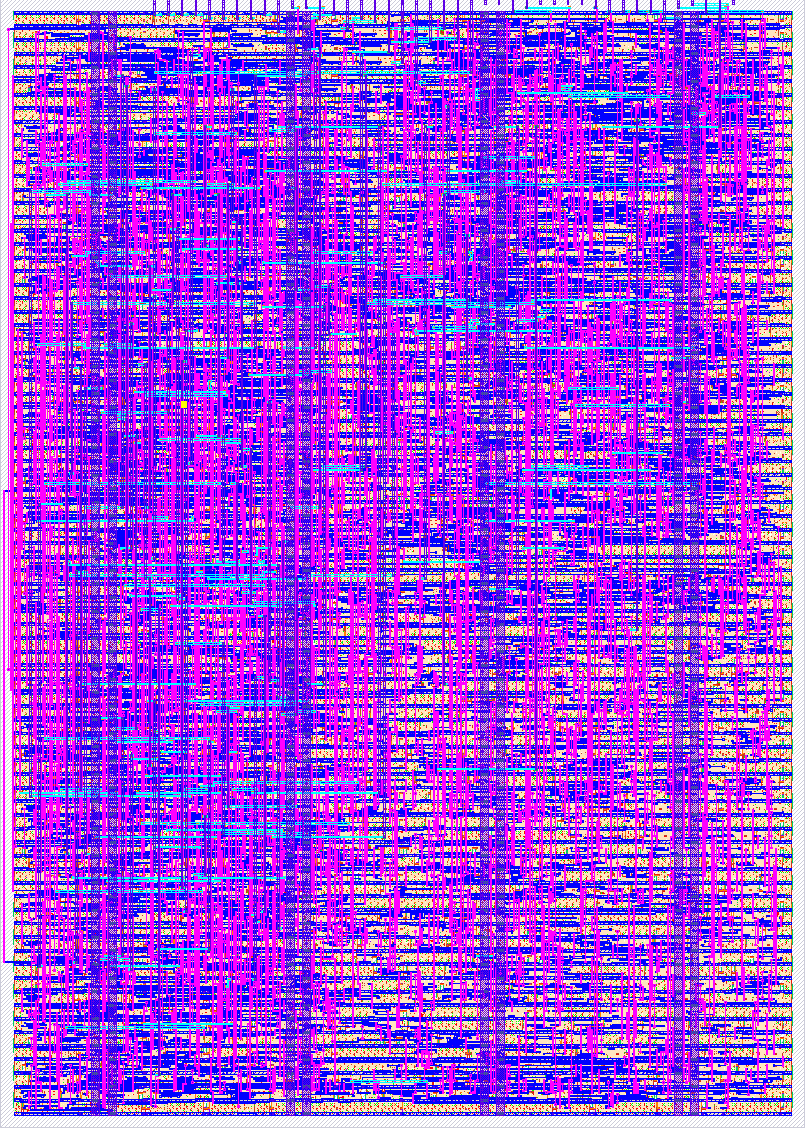

- Open in 3D viewer
- Clock: 50000000 Hz
How it works
TinyTensorCore is a hardware accelerator for 3×3 integer matrix multiplication, designed to fit in a 1×2 TinyTapeout tile. The core takes two 3×3 matrices of 5-bit signed operands as input and produces a 3×3 matrix of 12-bit signed results.
The design is composed of four modules:
tt_um_tinytensorcore— top-level wrapper that maps the TinyTapeout pin convention (ui_in,uo_out,uio_*) to a 10-bit instruction bus and a 12-bit result output.tensor_core_controller— instruction decoder and burst-load FSM. Sequences three opcodes:NOP(0b000),TENSOR_CORE(0b001, triggers the matmul), andBURST(0b010, streams 9 operand pairs in or 9 results out over consecutive cycles).tensor_core_register_file— holds two 3×3 matrices of 5-bit signed values (matrix A and matrix B). Loaded one operand pair per cycle during a burst.tensor_core— combinational MAC array that computes the full 3×3 × 3×3 matmul in a single cycle.
The instruction format is 10 bits wide:
instr[2:0]— opcodeinstr[9:5]— operand A (matrix A element, 5-bit signed) during burst loadsinstr[4:0]— operand B (matrix B element, 5-bit signed) during burst loads (its low 3 bits double as the opcode field)
The 8-bit ui_in carries instr[7:0], and uio_in[5:4] carries instr[9:8]. Results stream out as 12-bit values over uo_out (low 8 bits) and uio_out[3:0] (high 4 bits, including sign).
How to test
A typical test sequence:
- Hold
rst_nlow for several cycles, then release. - Issue a
BURSTopcode (0b010) for one cycle to start a load burst. - For the next 9 cycles, present operand pairs on the instruction bus — matrix A element on
instr[9:5], matrix B element oninstr[4:0]. Hold low 3 bits at0b000(NOP) so the FSM doesn't restart. - Wait a few idle cycles, then issue
TENSOR_COREopcode (0b001) for one cycle to compute the matmul. - Issue another
BURSTopcode to stream the 9 result values out over the next 9 cycles. Each result appears as{uio_out[3:0], uo_out[7:0]}— a 12-bit signed value.
Comprehensive RTL vs gate-level verification was performed using Cadence Xcelium with a 26-test suite (identity, all-ones, sequential, max values, zero matrix, diagonal, and 20 random matrices). RTL and gate-level outputs were bit-exact identical.
External hardware
No external hardware required.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | instr[0] | result[0] | result[8] |
| 1 | instr[1] | result[1] | result[9] |
| 2 | instr[2] | result[2] | result[10] |
| 3 | instr[3] | result[3] | result[11] (sign) |
| 4 | instr[4] | result[4] | instr[8] |
| 5 | instr[5] | result[5] | instr[9] |
| 6 | instr[6] | result[6] | |
| 7 | instr[7] | result[7] |
