873 time
873 : time
- Author: Adityva Vikram Singh
- Description: a wall clock like display using vga
- GitHub repository

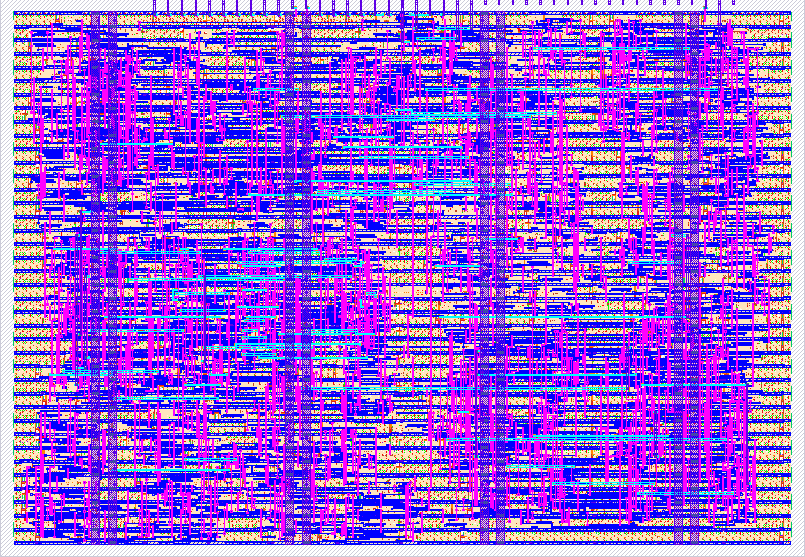

- Open in 3D viewer
- Open in VGA Playground
- Clock: 25200000 Hz
How it works
It generates a wall clock like interface. The VGA output is standard 640x480@60Hz
How to test
Run clock at 25.2MHz, connect VGA Pmod, and give it a reset pulse.
External hardware
Uses tiny VGA pmod
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | R1 | ||
| 1 | G1 | ||
| 2 | B1 | ||
| 3 | VSync | ||
| 4 | R0 | ||
| 5 | G0 | ||
| 6 | B0 | ||
| 7 | HSync |
