160 Tiny Tapeout Test Project
160 : Tiny Tapeout Test Project
- Author: Himanshu Kriplani
- Description: creating a PWM generator circuit
- GitHub repository

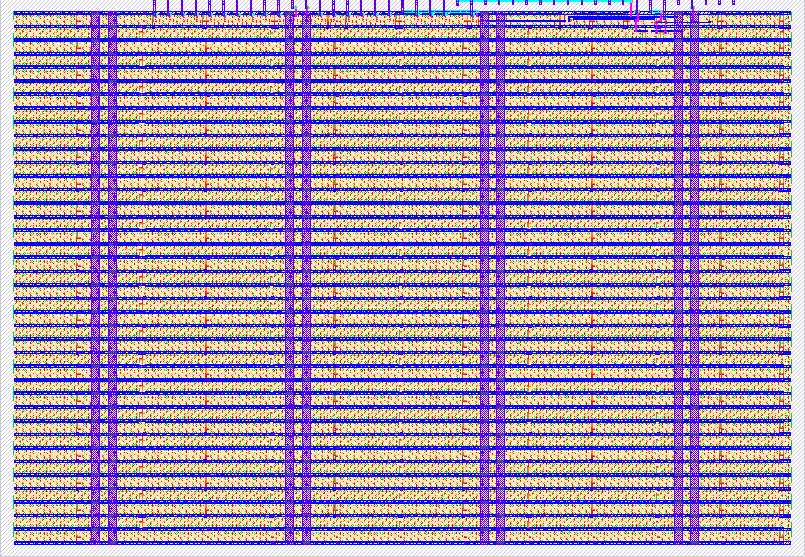

- Open in 3D viewer
- View in Wokwi
- Clock: 300000 Hz
How it works
Its a simple test circuit with an AND and OR gate to perform simple combinational logic to turn specific LED's ON
How to test
Simple play around with the input switches and observe which LEDs turn on at the output.
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | input a | ||
| 1 | OR OUT | ||
| 2 | input b | ||
| 3 | input c | ||
| 4 | input d | ||
| 5 | AND OUT | ||
| 6 | |||
| 7 |
