870 Mikes First Wokwi design
870 : Mikes First Wokwi design
- Author: Michael
- Description: idk
- GitHub repository

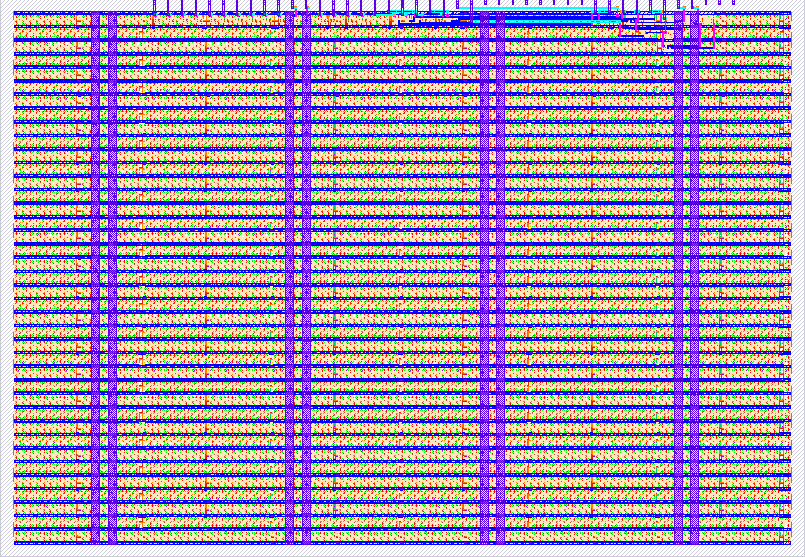

- Open in 3D viewer
- View in Wokwi
- Clock: 0 Hz
How it works
AND gate connected to input a and b
How to test
input a and b | Output AND| 0 0 0 0 1 0 1 0 0 1 1 1 Explain how to use your project
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | input A | output and | |
| 1 | input B | ||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
