196 Tiny Tapeout Test

196 : Tiny Tapeout Test

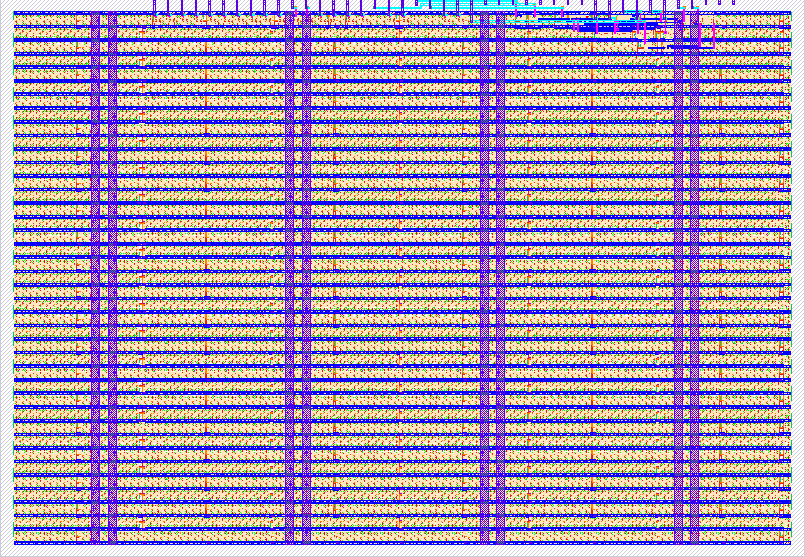

Design render

How it works

makes a small capital L in the bottom left corner with a dot in the right corner.

How to test

input a & b output 1 0 0 1 0 1 1 1 0 1 1 1 0

input c & d output 2,3,4 0 0 0 0 1 1 1 0 1 1 1 0

input e & f output 5,6,7 0 0 0 0 1 1 1 0 1 1 1 1

input g & h ouput 8 0 0 1 0 1 1 1 0 1 1 1 0

External hardware

List external hardware used in your project (e.g. PMOD, LED display, etc), if any

IO

#InputOutputBidirectional
0inputaoutput1
1inputbouput2
2inputcoutput3
3inputdoutput4
4inputeoutput5
5inputfoutput6
6inputgoutput7
7inputhoutput8
