973 Tiny tapeouts test gates
973 : Tiny tapeouts test gates
- Author: Harvey Olaseinde-Buck
- Description: Displays my initial on the BCD display when all inputs are set to 1
- GitHub repository

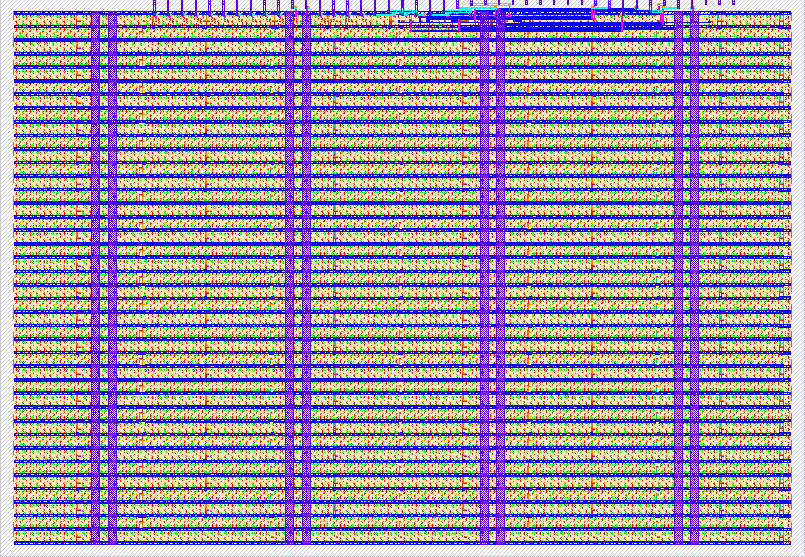

- Open in 3D viewer
- View in Wokwi
- Clock: 10000 Hz
How it works
inverters change input of 2 pins from 1 to 0 in order to display the H initial
How to test
outputs should all be 1 except for the OUT0 and OUT3
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | 1 | 0 | |
| 1 | 1 | 1 | |
| 2 | 1 | 1 | |
| 3 | 1 | 0 | |
| 4 | 1 | 1 | |
| 5 | 1 | 1 | |
| 6 | 1 | 1 | |
| 7 | 0 | 0 |
