682 First Chip
682 : First Chip
- Author: Said Al Riyami
- Description: it prints the first letter of my name when the switches are 0000011
- GitHub repository

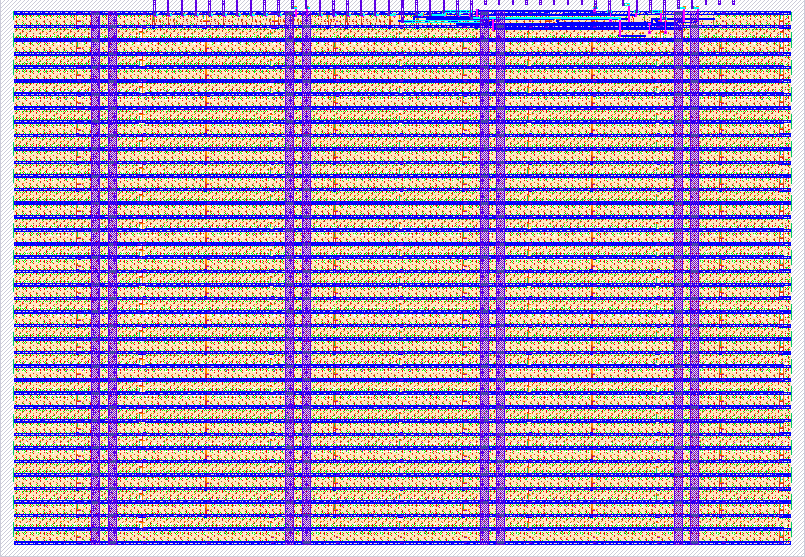

- Open in 3D viewer
- View in Wokwi
- Clock: 0 Hz
How it works
It prints the first letter of my name when you enter the passcode.
How to test
-Switch the pins on and off as this code 0000011
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | input a | output NOR | |
| 1 | input b | ||
| 2 | input c | output Inverter | |
| 3 | input d | output Inverter | |
| 4 | |||
| 5 | input e | output AND | |
| 6 | input f | ||
| 7 |
