325 Name Serial Printer
325 : Name Serial Printer
- Author: Lukas Brookes-Tee
- Description: This design prints 5 characters to the serial monitor
- GitHub repository

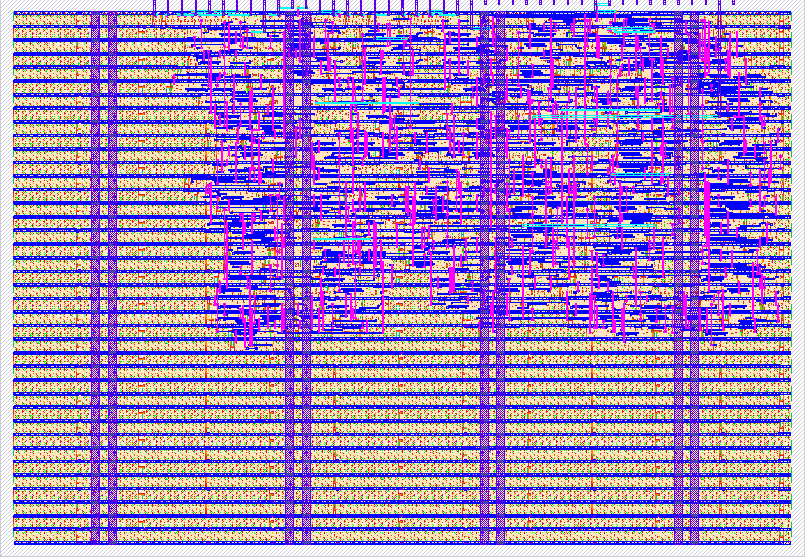

- Open in 3D viewer
- View in Wokwi
- Clock: 300 Hz
How it works
This software will display 4 selected characters (and one newline character) via the serial monitor on an Arduino.
How to test
The 7th input switch should be positioned to on to allow the multiplexors to receive a signal. The 8th input switch should be positioned to on for the serial monitor output to be started.
External hardware
This project uses an Arduino Uno for its serial monitor.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | |||
| 1 | |||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | This input sends a signal to the multiplexors | ||
| 7 | This input enables output to the serial monitor | This output transmits the output signal to the receiver pin of the Arduino |
