709 8_cool_modes
709 : 8_cool_modes
- Author: Carl H Lundstroem
- Description: 8 different modes + century clock divider
- GitHub repository

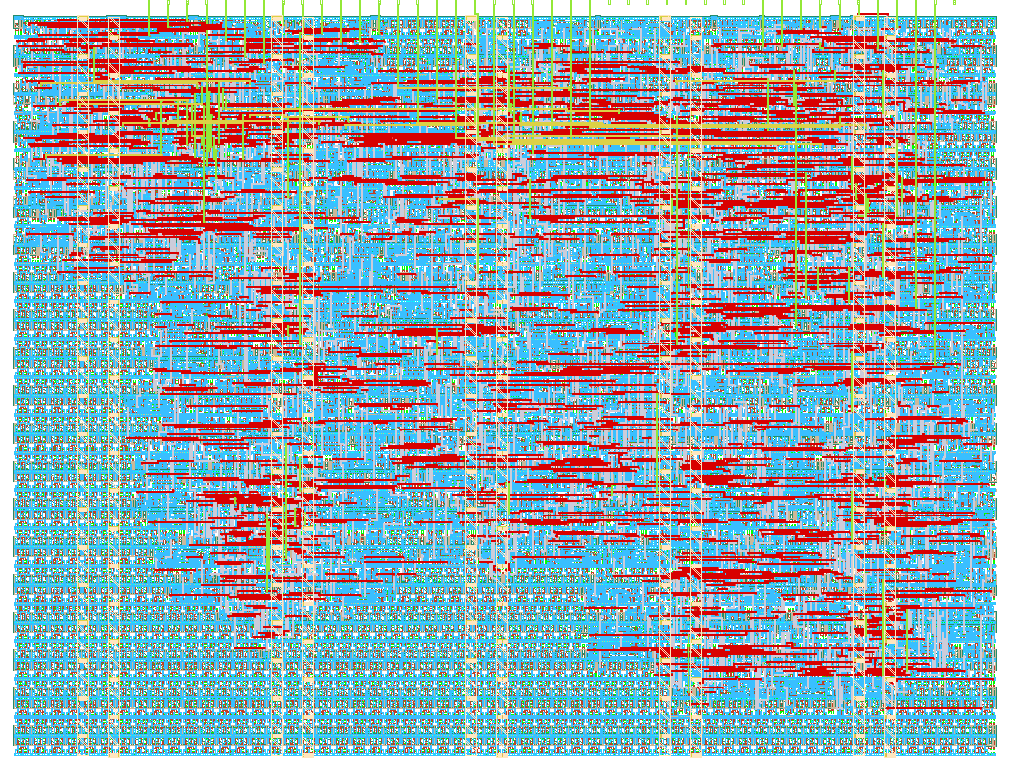

- Open in 3D viewer
- Clock: 25000000 Hz
How it works
This project uses the on-board 8-switch on the development board to choose between 8 different modes.
How to test
The MSB switch (most to the left) should be prioritized over the ones more to the right.
External hardware
Only on 4-button thing is needed for mode 6: Simon Says
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | BUTTONA | ||
| 1 | BUTTONB | ||
| 2 | BUTTONC | ||
| 3 | BUTTOND | ||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
