33 Two Song Buzzer Player
33 : Two Song Buzzer Player
- Author: Simon
- Description: Plays a part Never Gonna Give You Up and Imperial March on a buzzer, switchable via input
- GitHub repository

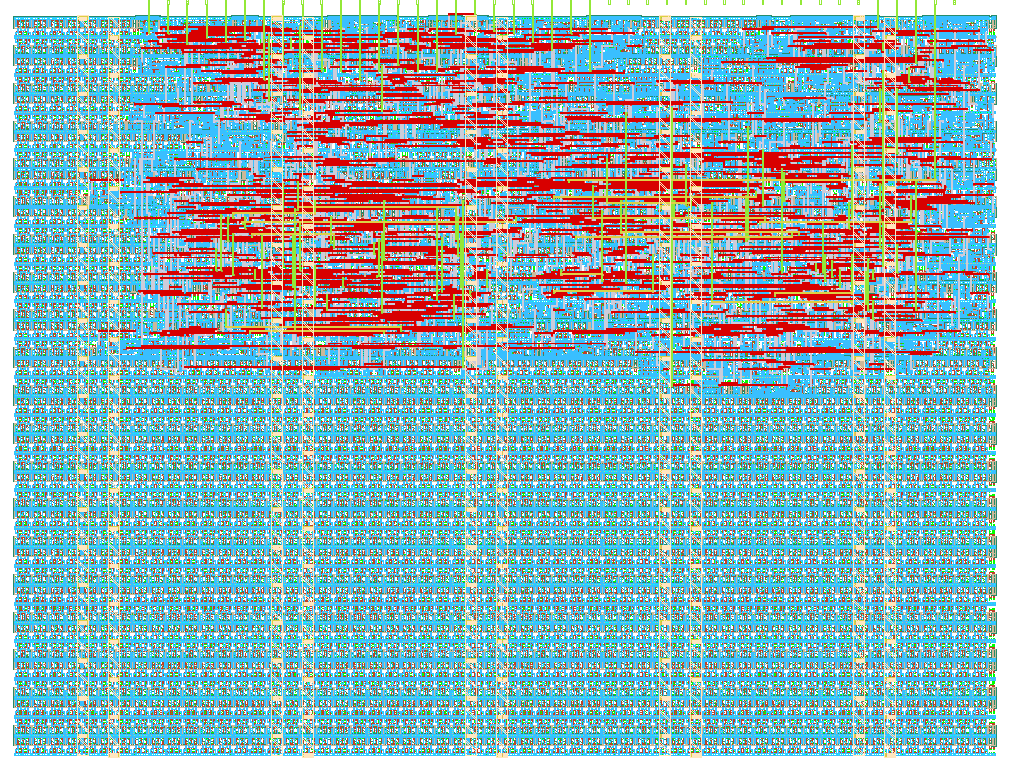

- Open in 3D viewer
- Clock: 50000000 Hz
How it works
saves notes and the sequenz to execute them in the hardware and with the clock input adjustet to the note frequency and and the duration counted with it the chip should be able to play a part of the imperial march and never gonna give you up
How to test
set the clock to 50MHz and a switch at input 0 and 1 (to switch songs and pause) connecting a buzzer to out zero should result in a looping song beeing played
External hardware
piezo buzzer
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | Song select (0=NGGU, 1=Imperial March) | Buzzer PWM output | |
| 1 | Pause | ||
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| 6 | |||
| 7 |
