619 Demoscreen full of RICH
619 : Demoscreen full of RICH
- Author: Hazel Li
- Description: 發 bouncing around the screen
- GitHub repository

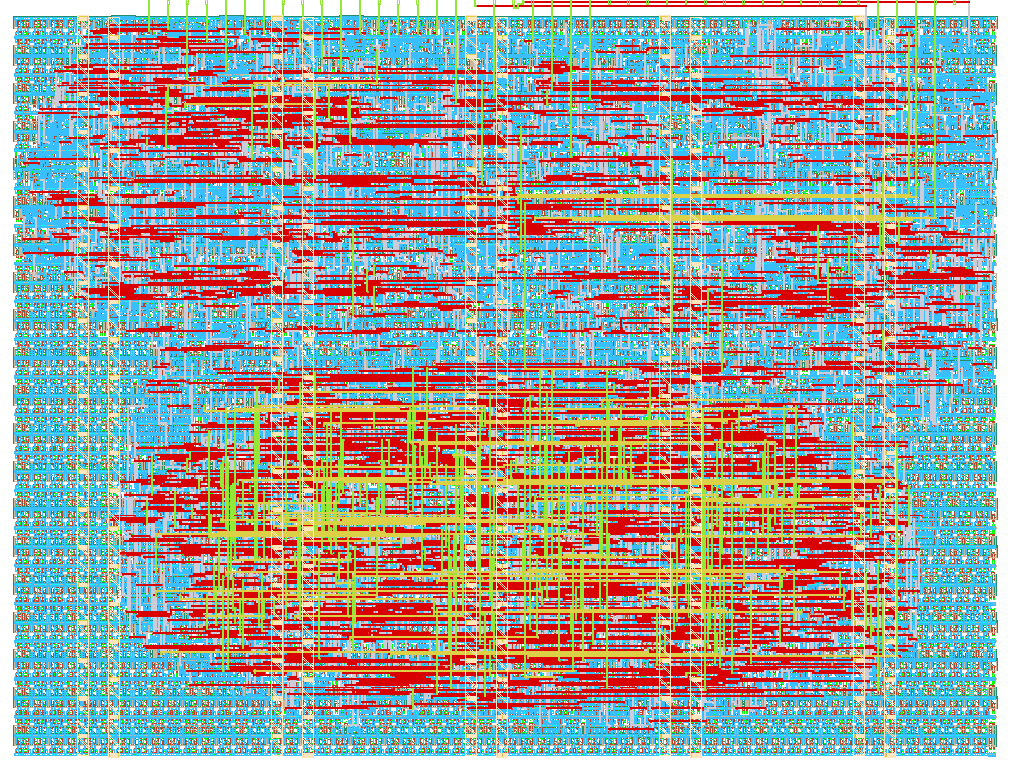

- Open in 3D viewer
- Clock: 25175000 Hz
How it works
Displays a bouncing character on the screen, with animated color
How to test
Connect to a monitor. Set the following inputs to configure the design:
tile(ui_in[0]) to repeat the character and tile it across the screen,solid_color(ui_in[1]) to use a solid color instead of a mix of golden and red.
External hardware
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | tile | R1 | |
| 1 | solid_color | G1 | |
| 2 | B1 | ||
| 3 | VSync | ||
| 4 | R0 | ||
| 5 | G0 | ||
| 6 | B0 | ||
| 7 | HSync |
