493 Tiny NPU: 4-Way Parallel INT8 Inference Engine
493 : Tiny NPU: 4-Way Parallel INT8 Inference Engine
- Author: Malik
- Description: 4-way parallel INT8 neural network inference engine with SproutHDL arithmetic units and ReLU activation
- GitHub repository

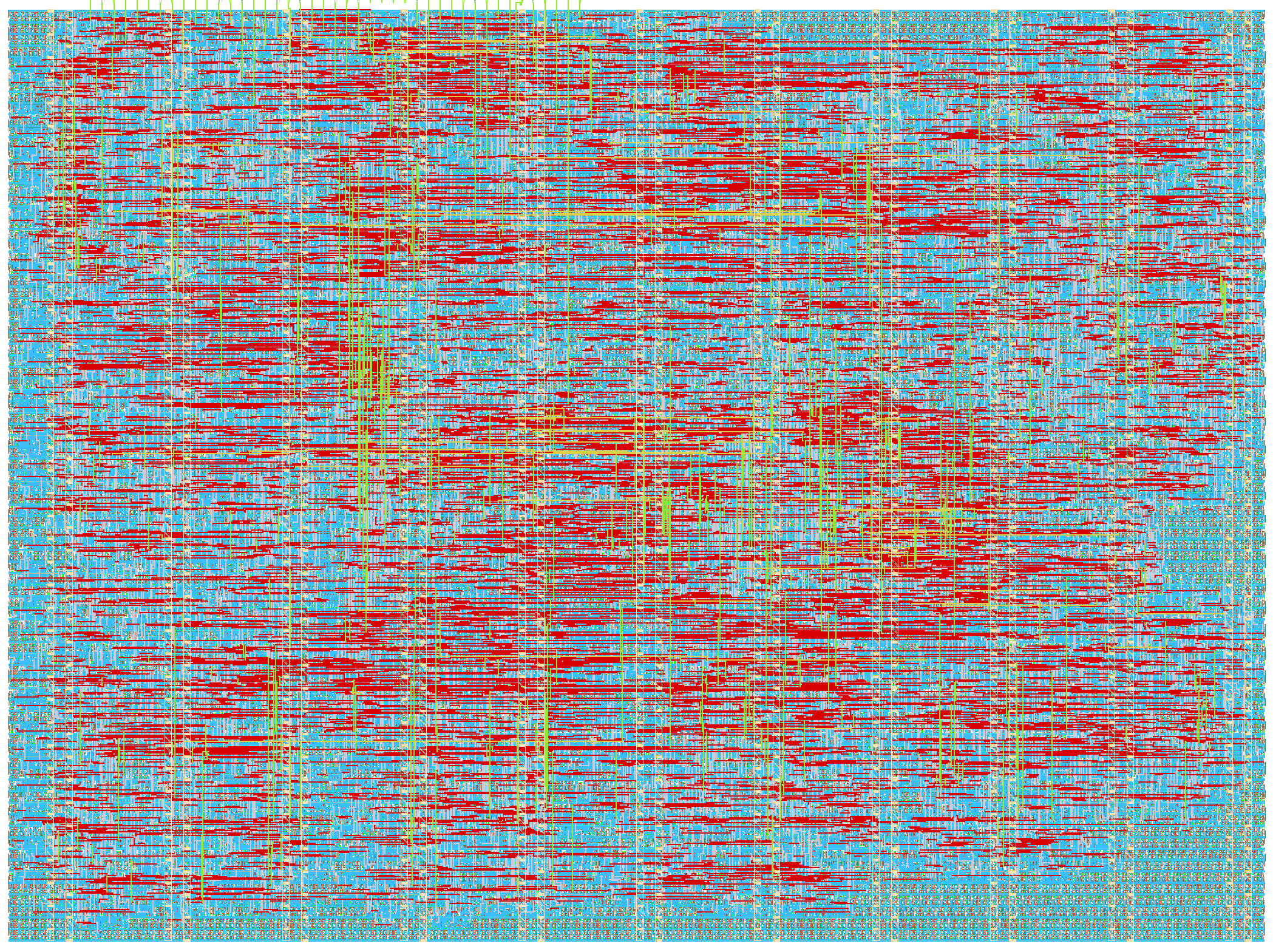

- Open in 3D viewer
- Clock: 50000000 Hz
Tiny NPU: 4-Way Parallel INT8 Inference Engine
How it works
A minimal neural processing unit with 4 parallel multiply-accumulate datapaths that computes a single fully-connected layer: y = ReLU(W · x + b).
The NPU integrates custom arithmetic units generated by SproutHDL through ML-guided design-space exploration:
- 4× Han-Carlson multipliers (8-bit unsigned, structurally optimized)
- 4× Sparse Kogge-Stone adders (24-bit two's complement, area-optimized)
Since the multipliers are unsigned but the NPU handles signed INT8 values, a lightweight sign-management wrapper computes absolute values, multiplies, and conditionally negates the result. A pipeline register between the multiply and accumulate stages ensures clean timing closure.
Specifications:
- 4 parallel datapaths (one per output neuron)
- Weight storage: 32 × INT8 register file (4 outputs × 8 inputs)
- Bias storage: 4 × INT16
- Input buffer: 8 × INT8 activations
- 24-bit accumulator precision per output
- Configurable: 1–8 inputs, 1–4 outputs
- ReLU activation with INT8 output saturation
- Pipelined inference: N_IN + 3 cycles (8 inputs → 11 cycles @ 50 MHz = 220 ns)
- Weights persist across inferences for batch processing
How to test
- Reset:
rst_nlow → high - Config: cmd=0x1, data =
{n_out-1}[5:4] | {n_in-1}[2:0] - Load weights row-major: cmd=0x2, data=weight (auto-increments)
- Load biases: cmd=0x3, data=bias (auto-increments)
- Load activations: cmd=0x4, data=act (auto-increments)
- Run: cmd=0x5. Wait for busy→0.
- Reset pointers: cmd=0x7
- Read outputs: cmd=0x6 (auto-increments)
Design context
The arithmetic units were produced by SproutHDL (github.com/huawei-csl/sprout-hdl) as part of a semester project on ML-guided design-space exploration of AI hardware architectures. The Han-Carlson multiplier and sparse Kogge-Stone adder represent Pareto-optimal points on the area-delay tradeoff frontier identified through automated exploration.
External hardware
None required.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | data_in[0] | data_out[0] | cmd[0] |
| 1 | data_in[1] | data_out[1] | cmd[1] |
| 2 | data_in[2] | data_out[2] | cmd[2] |
| 3 | data_in[3] | data_out[3] | cmd[3] |
| 4 | data_in[4] | data_out[4] | |
| 5 | data_in[5] | data_out[5] | |
| 6 | data_in[6] | data_out[6] | |
| 7 | data_in[7] | data_out[7] |
