743 SPI RAM Driver :: Quicker, easier and cheaper to make your own chip!

743 : SPI RAM Driver

Author: Roméo Estezet

Description: SPI Driver which controls the emulated SPI RAM on the RP2040 Chip

Clock: 50 Hz

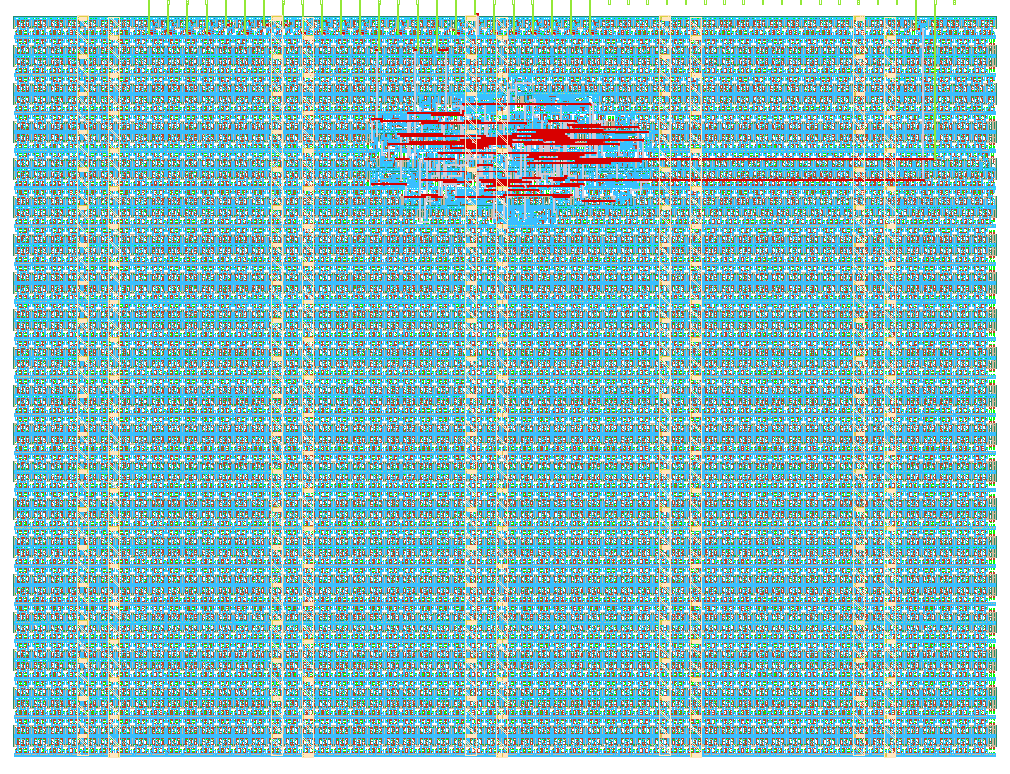

How it works

This design implements an SPI Mode 0 (CPOL=0, CPHA=0) master driver for interfacing with external SPI RAM. It supports READ (0x03) and WRITE (0x02) commands with a 16-bit address space and 8-bit data transfers.

The SPI transaction frame is 32 bits: 8-bit command + 16-bit address + 8-bit data. Data is shifted MSB first. The SCK clock runs at half the system clock frequency.

SPI protocol timing

CS is pulled low to start a transaction and raised high when complete.
MOSI data changes on SCK falling edges (setup), and the slave samples on SCK rising edges.
MISO data from the slave is sampled on SCK rising edges during the data phase of a READ.
When i_ready_to_execute is held high, a new transaction starts automatically after the previous one completes.

Current top-level wiring

The SPI_RAM module inputs are currently hardcoded for testing purposes (WRITE command to address 0x0000 with data 0x5B). The data output from READ operations is wired to the dedicated output pins (uo_out). These will be connected to actual control logic in a future revision.

How to test

After reset (active low on rst_n), the design immediately begins an SPI WRITE transaction with the hardcoded parameters. You can observe the SPI signals on the bidirectional pins:

uio[0] (CS): Goes low during a transaction, high when idle.
uio[1] (MOSI): Carries the command (0x02), address (0x0000), and data (0x5B) serially, MSB first.
uio[3] (SCK): Toggles at half the system clock rate while CS is low.

To test READ functionality, drive MISO data on uio[2] synchronized to SCK rising edges during the data phase (last 8 SCK cycles of a READ transaction). The received byte will appear on uo_out[7:0].

Running the cocotb testbench

cd test
make -B

The testbench includes 8 tests covering reset state, IO directions, WRITE/READ frame verification, and multi-pattern data capture. A standalone SPI_RAM instance in the testbench allows direct testing with controllable inputs. Gate-level tests automatically skip tests that require the standalone instance.

External hardware

SPI RAM module (e.g. 23LC512 or similar) connected to the bidirectional pins, or an RP2040 emulating an SPI RAM slave.

Pin	Signal	Direction
uio[0]	SPI CS	Output
uio[1]	SPI MOSI	Output
uio[2]	SPI MISO	Input
uio[3]	SPI SCK	Output

#	Output	Bidirectional
0	SPI RAM data out [0]	SPI CS (output)
1	SPI RAM data out [1]	SPI MOSI (output)
2	SPI RAM data out [2]	SPI MISO (input)
3	SPI RAM data out [3]	SPI SCK (output)
4	SPI RAM data out [4]
5	SPI RAM data out [5]
6	SPI RAM data out [6]
7	SPI RAM data out [7]

Input

Output

Bidirectional

SPI RAM data out [0]

SPI CS (output)

SPI RAM data out [1]

SPI MOSI (output)

SPI RAM data out [2]

SPI MISO (input)

SPI RAM data out [3]

SPI SCK (output)

SPI RAM data out [4]

SPI RAM data out [5]

SPI RAM data out [6]

SPI RAM data out [7]

Chip location
