367 Yturkeri_Mytinytapeout
367 : Yturkeri_Mytinytapeout
- Author: Yigitcan Türkeri
- Description: Test of Logic gates
- GitHub repository

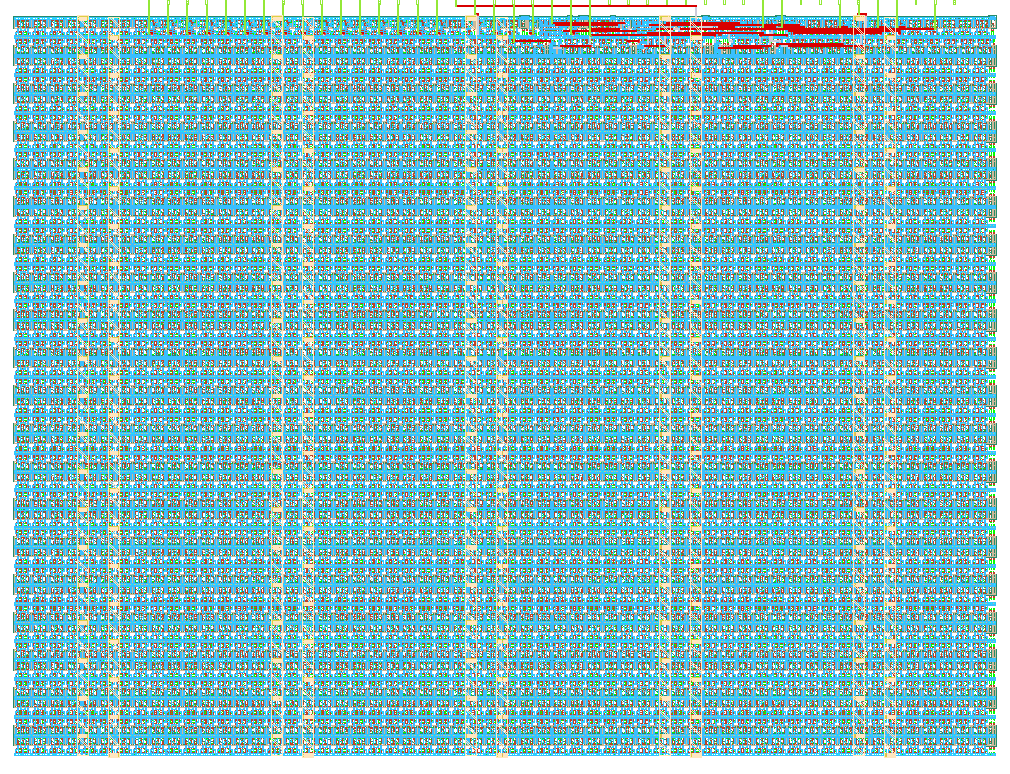

- Open in 3D viewer
- View in Wokwi
- Clock: 5000 Hz
How it works
The main output is outputb it lights down right corner if the input combination is correct
How to test
Try different combinations if it is correct outputb lights together with the line on oppositing site.
External hardware
Your hand (and I find numpad useful.)
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | inputa | outputa | |
| 1 | inputb | ||
| 2 | inputc | outputb | |
| 3 | inputd | ||
| 4 | inputd | outputc | |
| 5 | inpute | ||
| 6 | inputf | ||
| 7 | inputg | outputd |
