721 Tiny Tapeout Test Gates
721 : Tiny Tapeout Test Gates
- Author: Yurii Pavlenko
- Description: Test some logic gates and a clock divider
- GitHub repository

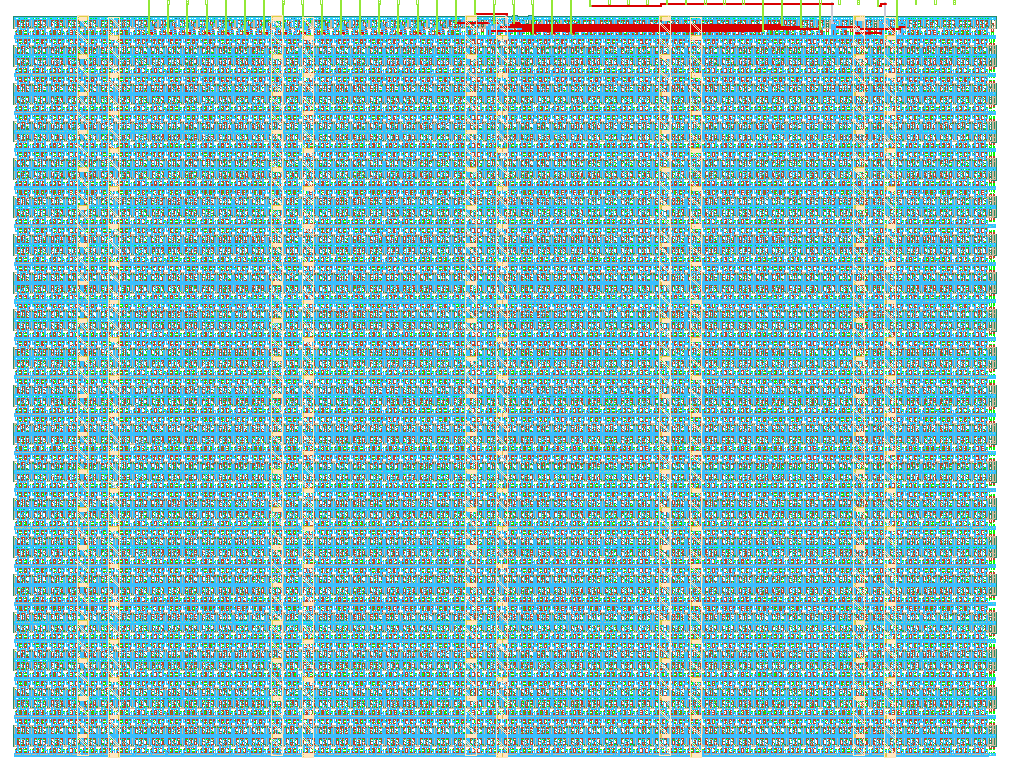

- Open in 3D viewer
- View in Wokwi
- Clock: 100000 Hz
How it works
I just doing my first GitHub project so it is just a test.
How to test
Just a test with NAND gates.
External hardware
I use NAND gates, wires, display.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | input a | selection a | |
| 1 | input b | ||
| 2 | input c | ||
| 3 | input d | ||
| 4 | input e | ||
| 5 | input f | ||
| 6 | input g | ||
| 7 | input h |
