609 7 segment ihp resistcode
609 : 7 segment ihp resistcode
- Author: igor luisoni
- Description: show rESIStcodE on 7 segments
- GitHub repository

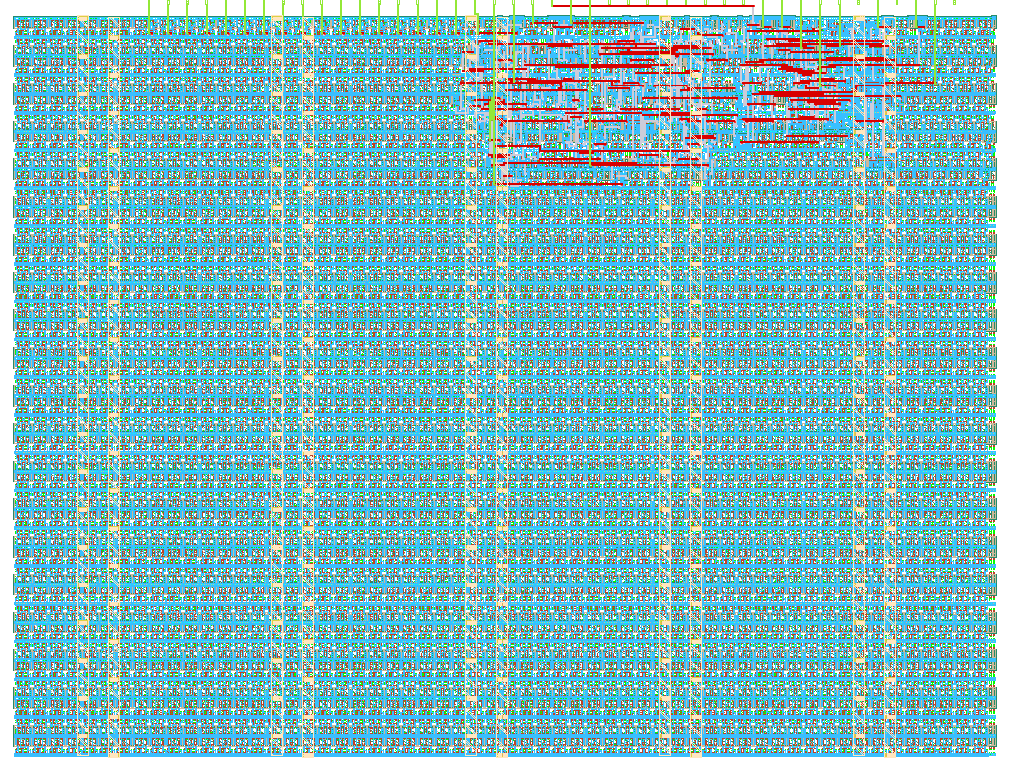

- Open in 3D viewer
- View in Wokwi
- Clock: 1 Hz
How it works
Display a custom string of characters => "rESIStcodE"
How to test
Connect a 7 segments to the output and a dip-switch-8 on input
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | in0 | out 7 segment a | |
| 1 | in1 | out 7 segment b | |
| 2 | in2 | out 7 segment c | |
| 3 | in3 | out 7 segment d | |
| 4 | in4 | out 7 segment e | |
| 5 | in5 | out 7 segment f | |
| 6 | in6 | out 7 segment g | |
| 7 | in7 | out 7 segment dp |
