864 Yet another VGA tinytapeout
864 : Yet another VGA tinytapeout
- Author: Anastasios Zouzias
- Description: This is a simple verilog project shifting around a VGA image.
- GitHub repository

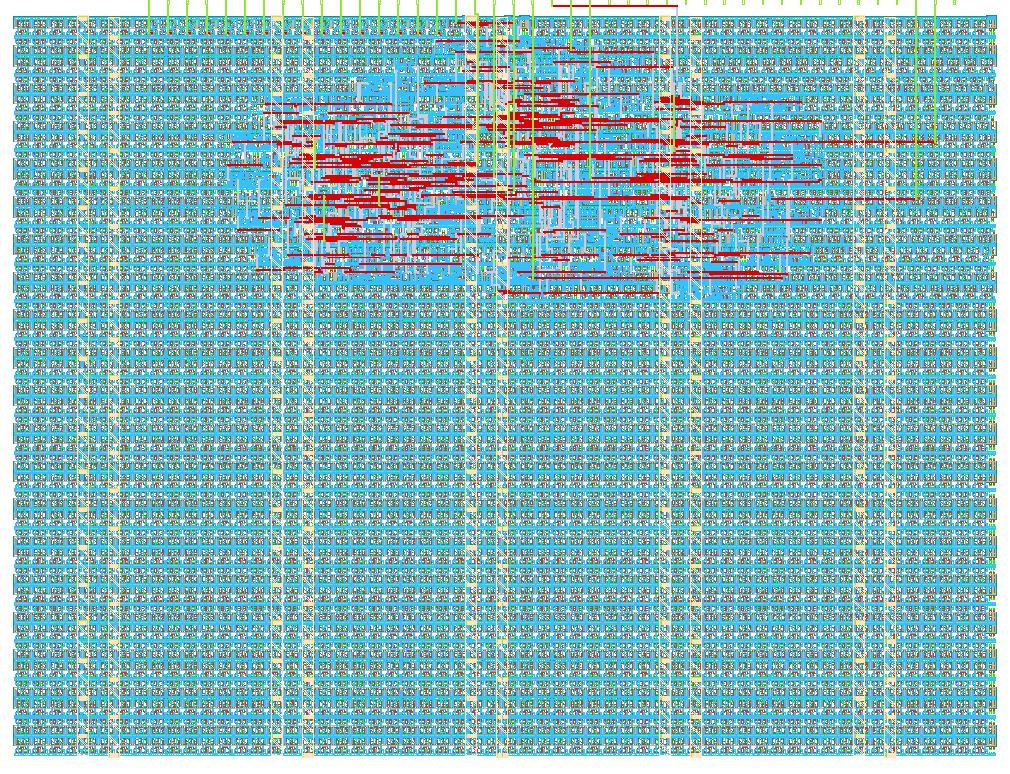

- Open in 3D viewer
- Clock: 25175000 Hz
How it works
See src/project.v
How to test
Currently, the test are being bypassed.
External hardware
List external hardware used in your project (e.g. PMOD, LED display, etc), if any
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | R1 | ||
| 1 | G1 | ||
| 2 | B1 | ||
| 3 | VSync | ||
| 4 | R0 | ||
| 5 | G0 | ||
| 6 | B0 | ||
| 7 | HSync |
