164 ChipLab

164 : ChipLab

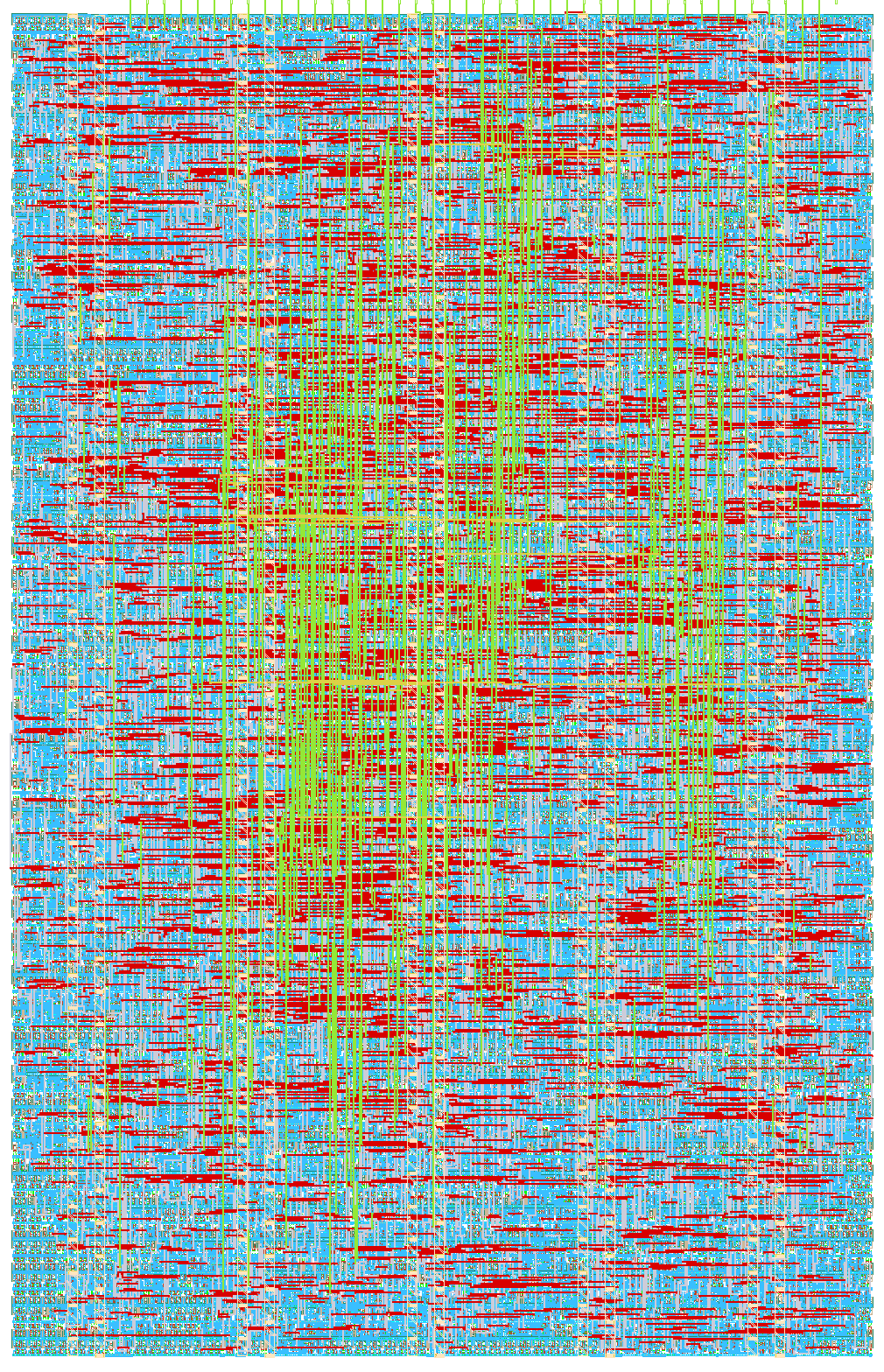

Design render

ChipLab

ChipLab is an educational digital logic chip for Tiny Tapeout IHP26b. Sections 1–9 are implemented, from basic logic to FSM-controlled datapaths and sound.

How it works

The design uses synthesizable SystemVerilog. uio_in[5:0] selects an experiment. uio_in[7:6] selects an operation where needed. All bidirectional pins are inputs (uio_oe = 0). uio_out is zero. For experiments 1 and 2, ui_in[2:0] provides C, B, A. Higher input bits are unused. Results appear on uo_out[7:0]. Section 2 uses the mappings below.

No. Selection Experiment
1. Basic and Boolean Logic
1 0x01 Basic gates
2 0x02 Boolean identities
2. Data Selection and Coding
3 0x03 Multiplexer
4 0x04 Demultiplexer
5 0x05 Binary decoder
6 0x06 Encoder
7 0x07 Priority encoder
8 0x08 Dual-priority encoder
9 0x09 BCD-to-7-segment decoder
10 0x0A HEX-to-7-segment decoder
11 0x0B Binary ↔ Gray code
12 0x0C Parity generator and checker
13 0x0D ROM
3. Arithmetic and Data Operations
14 0x0E Half adder
15 0x0F Full adder
16 0x10 4-bit adder
17 0x11 4-bit subtractor
18 0x12 Unsigned comparator
19 0x13 Signed comparator
20 0x14 Shifts
21 0x15 Rotation
22 0x16 ALU
4. Storage Elements and Memory
23 0x17 D latch
24 0x18 D flip-flop
25 0x19 T flip-flop
26 0x1A JK flip-flop
27 0x1B D latch and D flip-flop
28 0x1C Synchronous and asynchronous reset
29 0x1D Register with enable
30 0x1E Register with load, hold, and clear
31 0x1F 4 × 4-bit read/write memory
32 0x20 Accumulator
33 0x21 4 × 4-bit FIFO
34 0x22 4 × 4-bit stack
5. Shift Registers and Counters
35 0x23 Shift register
36 0x24 Universal shift register
37 0x25 Binary counter
38 0x26 Up/down counter
39 0x27 Modulo-6 counter
40 0x28 BCD counter
41 0x29 Ring counter
42 0x2A Johnson counter
43 0x2B LFSR
6. Input Synchronization and Timing
44 0x2C Edge detection
45 0x2D Input synchronizer
46 0x2E Push-button debouncer
47 0x2F Clock enable divider
48 0x30 PWM
7. Finite State Machines
49 0x31 Moore release control
50 0x32 Mealy release control
51 0x33 Traffic light controller
52 0x34 Handshake controller
53 0x35 Parking lot occupancy counter
8. FSM-Controlled Datapaths
54 0x36 Sequential multiplier
55 0x37 Binarized neural network
9. Sound
56 0x38 Programmable sound generator
All other codes All outputs zero

Experiments 1–22 are combinational. Experiments 23–56 store state and use clk or latch controls. rst_n resets the clocked storage elements. The two D latches have no reset. Allow signals to settle before sampling.

Output bit Basic gates (0x01) Boolean identities (0x02)
0 NOT A NOT (A AND B)
1 NOT B (NOT A) OR (NOT B)
2 A AND B NOT (A OR B)
3 A OR B (NOT A) AND (NOT B)
4 A NAND B A AND (B OR C)
5 A NOR B (A AND B) OR (A AND C)
6 A XOR B A OR (A AND B)
7 A XNOR B A

In the Boolean experiment, pairs (0, 1) and (2, 3) demonstrate De Morgan’s laws, (4, 5) demonstrates distributivity, and (6, 7) demonstrates absorption. Each pair has the same settled output for every input combination. Synthesis may merge equivalent logic. These experiments compare truth tables, not physical implementations or propagation delays.

Data selection and coding

Bit ranges below refer to ui_in and uo_out. Unlisted input bits are ignored. Unlisted output bits are zero.

Code Input Output
0x03 Data [3:0], select [5:4] Selected bit on [0]
0x04 Data [0], select [2:1] Data routed to one of [3:0]
0x05 Address [2:0] One set bit on [7:0]
0x06 One-hot data [7:0] Position [2:0], valid [3]
0x07 Data [7:0] Highest position [2:0], valid [3]
0x08 Data [7:0] Two positions and valid bits, see below
0x09 BCD digit [3:0] Segments [6:0]
0x0A HEX digit [3:0] Segments [6:0]
0x0B Value [3:0], direction [4] Converted value [3:0]
0x0C Data [6:0], received parity [7] Generated parity [0], error [1]
0x0D Address [2:0] ROM word [7:0]
  • Encoder: exactly one set input bit is valid. Otherwise all outputs are zero.
  • Priority encoder: bit 7 has highest priority. Zero input gives zero output.
  • 7-segment: active-high, bits 0–6 = a–g. Bit 7 is zero (decimal point off). BCD values 10–15 blank the display. HEX letters are A, b, C, d, E, F.
  • Gray: direction 0 converts binary to Gray. Direction 1 converts Gray to binary.
  • Parity: even parity. Error is 1 when data plus received parity has an odd number of set bits. It detects odd numbers of bit errors, not every possible error.
  • ROM: addresses 0–7 store ASCII ChipLab\0 (43 68 69 70 4C 61 62 00 hex). Contents are fixed at synthesis. There is no write operation.

Dual-priority encoder (0x08)

All eight input bits are used. The circuit finds the highest set bit, clears it, and calls the same SystemVerilog function again to find the next match.

Output Meaning
uo_out[2:0] Highest position
uo_out[3] First match valid
uo_out[6:4] Second-highest position
uo_out[7] Second match valid

Input 1011_0100 gives positions 7 and 5 (uo_out = 0xDF). Missing matches have position zero and a cleared valid bit. The function describes combinational logic. Its two calls do not take two clock cycles.

Arithmetic and data operations

For experiments 16–22, A = ui_in[3:0] and B = ui_in[7:4] unless noted.

Code Result
0x0E Sum [0], carry [1]. Inputs are ui_in[1:0]
0x0F Sum [0], carry [1]. Carry-in is ui_in[2]
0x10 Sum [3:0], carry [4], signed overflow [5]
0x11 Difference [3:0], no-borrow [4], signed overflow [5]
0x12 Unsigned less [0], equal [1], greater [2]
0x13 Signed less [0], equal [1], greater [2]
0x14 Shifted value [3:0]
0x15 Rotated value [3:0]
0x16 Value [3:0], carry [4], overflow [5], zero [6], negative [7]

Shift and rotation use ui_in[3:0] as value and ui_in[5:4] as amount. For shifts, operation 0 is left, 1 is logical right, and 2 is arithmetic right. For rotation, operation bit 0 selects left or right. ALU operations are add, subtract, AND, and OR for operation values 0–3.

Storage elements and memory

Code Input Output
0x17 D [0], gate [1] Q [0]
0x18 D [0] Q [0]
0x19 Toggle [0] Q [0]
0x1A J [0], K [1] Q [0]
0x1B D [0], latch gate [1] Latch Q [0], flip-flop Q [1]
0x1C D [0] Synchronous Q [0], asynchronous Q [1]
0x1D Data [3:0], enable [4] Register [3:0]
0x1E Data [3:0], control [5:4] Register [3:0]
0x1F Data [3:0], address [5:4], write [6] Read data [3:0]
0x20 Operand [3:0], enable [4], clear [5] ALU result and flags

The D latches in 0x17 and 0x1B have an unspecified power-up value and ignore rst_n. To initialize one on the dev kit, select its experiment, set D with ui_in[0], then raise and lower the gate with ui_in[1] while keeping D stable. With the gate low or the experiment deselected, the latch holds its value. In 0x1B, reset still clears the flip-flop output.

The control values for 0x1E are hold, load, clear, and load. The accumulator feeds its low four bits back into the same ALU used by experiment 22. uio_in[7:6] selects add, subtract, AND, or OR.

FIFO and stack

Experiments 33 (0x21, FIFO) and 34 (0x22, stack) each store four 4-bit values. FIFO returns the oldest entry. Stack returns the newest entry.

ui_in[3:0] supplies write data. uio_in[7:6] selects the command:

Command Action on a selected rising edge
00 Hold
01 Push: store the input value
10 Pop: remove the next entry
11 Hold (reserved)
Output bits Meaning
[3:0] Next entry. Zero when empty
[6:4] Fill count (0–4). Bit [6] also indicates full
[7] Empty

Read the next entry before the pop edge. After it, the following entry appears. The fill count is uo_out[6:4] (0–4). Push on full and pop on empty are ignored. A held command repeats each clock. Deselecting holds the buffer. Reset empties it even while deselected.

How to test

Shift registers and counters

Experiments 35–43 use four bits, shown on uo_out[3:0]. Bits 7–4 are zero. They update on rising clock edges only while selected. Switching experiments preserves their state. Active-low rst_n resets all of them asynchronously: ring counter and LFSR start at 0001, the others at 0000.

Code Inputs and behavior
0x23 Shift left. Serial input ui_in[0], enable ui_in[4]
0x24 Universal shift register. Operation 0 hold, 1 left, 2 right, 3 parallel load
0x25 Binary counter: 0–15, then 0
0x26 Up/down counter. ui_in[0] = 0 up, 1 down. Wraps at 0 and 15
0x27 Modulo-6 counter: 0–5, then 0
0x28 BCD counter: 0–9, then 0
0x29 Ring counter: 1, 2, 4, 8, 1
0x2A Johnson counter: 0, 1, 3, 7, 15, 14, 12, 8, 0
0x2B LFSR: left shift with XOR feedback from bits 3 and 2. 15 nonzero states

The LFSR tap polynomial is x⁴ + x³ + 1, numbering stages 1–4 from bit 0 to bit 3. With this left-shift convention, the forward sequence obeys s[n+4] = s[n+1] XOR s[n], whose characteristic polynomial is the reciprocal x⁴ + x + 1. The all-zero state remains locked at zero. Reset therefore seeds 0001.

Counters and LFSR use ui_in[4] as enable. The universal shift register uses uio_in[7:6] as operation, ui_in[3:0] for parallel load and ui_in[0] as serial input. Other input bits are ignored.

For example, select 0x27, set ui_in = 0x10, reset, then apply clock pulses. The output counts 1, 2, 3, 4, 5, 0. Set ui_in = 0 to hold.

Input synchronization and timing

Experiments 44–48 update on rising edges while selected. Reset is asynchronous and active low. State holds while deselected. Unlisted output bits are zero.

Code Input Output
0x2C Synchronous signal [0] Rising pulse [0], falling pulse [1], sampled level [2]
0x2D Asynchronous signal [0] Second synchronizer stage [0]
0x2E Button [0] Debounced level [0], synchronized level [1], stable count [3:2]
0x2F Period minus one [3:0], enable [4] Tick [0], counter [4:1]
0x30 Duty [4:0], enable [5] PWM [0], phase [4:1]

The edge detector expects an input already synchronous to the clock. It emits one pulse per sampled transition. The synchronizer uses two stages. RTL tests check their latency but cannot model metastability.

The debouncer first synchronizes the button, then accepts a changed level after four consecutive samples. Use a slow external clock for a physical button: 400 Hz gives a 10 ms confirmation window plus synchronizer latency. At 50 MHz this is only a logic demonstration, not mechanical debouncing.

The divider emits one clock-enable tick every 1–16 enabled edges. Disabling it clears the tick and holds the count. Reducing the period below the current count causes a tick on the next enabled edge. No derived clock is generated.

PWM has a 16-clock period. Duty 0 is always low. 16–31 is always high. Disabling forces the output low and holds the phase. Duty changes apply immediately, so change duty at a period boundary for clean complete periods.

State machines

Experiments 49–53 use ui_in[4] as enable. They advance only while selected and enabled. Reset restores the initial state even while deselected. Inputs must be synchronous to clk.

Code Input Output
0x31 Start [0], stop [1], enable [4] Moore release [0], state [1]
0x32 Start [0], stop [1], request [2], enable [4] Mealy release [0], state [1]
0x33 Phase tick [0], enable [4] Red [0], amber [1], green [2], state [4:3]
0x34 Request [0], complete [1], enable [4] Ack [0], busy [1], state [3:2]

Both controllers have two states: IDLE (0) and ACTIVE (1). Start enters ACTIVE and stop returns to IDLE on an enabled rising edge. Stop has priority if both inputs are high. Reset returns to IDLE.

Moore release is high whenever the state is ACTIVE. Mealy release is high only when the state is ACTIVE and request is high. Toggle request with the clock stopped to see the difference: the Mealy output follows immediately, while the Moore output stays high. Request is unused in the Moore experiment. Enable controls state updates only. It does not suppress either output.

The traffic light starts red (state 0). Each phase tick advances to red+amber (1), green (2), amber (3), then red. An external controller supplies the phase timing. Holding the tick high advances on every enabled edge.

The handshake starts idle (0). A request enters busy (1). Complete enters ack (2). Keep request high until ack, then lower it to return to idle. Holding request high in ack cannot start another transaction.

Parking lot occupancy counter

Select 0x35. Sensor A is ui_in[0], sensor B is ui_in[1], and enable is ui_in[4]. Sensor value 1 means occupied. Supply synchronous sensor inputs.

  • Enter: A/B = 00 → 10 → 11 → 01 → 00.
  • Exit: A/B = 00 → 01 → 11 → 10 → 00.
  • Repeated samples hold the state. Reversing follows the path back without counting.
  • Skipped steps discard the crossing. Both sensors must be clear before restarting.

Output: occupancy [3:0], entered [4], exited [5], crossing/recovery active [6], invalid-sequence recovery [7]. Occupancy saturates at 0 and 15. The event outputs still report crossings at these limits and last one clock. Selection and enable pause the state and count. Event pulses still clear. Reset clears the count and returns to idle. A sensor sequence already in progress at reset cannot reliably identify a complete crossing.

FSM-Controlled Datapaths

Sequential multiplier

Select 0x36. Inputs ui_in[3:0] and ui_in[7:4] are unsigned operands A and B. uio_in[6] is start and uio_in[7] selects the output view:

View Output
0 8-bit product
1 Busy [0], done [1], state [3:2], completed steps [6:4]

States are idle (0), run (1), and done (2). Assert start for an idle clock edge to capture the operands. Four more selected edges complete the calculation. The datapath reuses two 4-bit adders from group 3. During run, operand changes and start are ignored. The product view shows the partial sum. Done holds while start is high. A selected edge with start low returns to idle, retaining the product. Deselecting pauses the calculation. Reset aborts it.

For 7 × 15, apply ui_in = 0xF7, pulse start, and wait four more edges. The product is 105 (0x69).

Binarized neural network

Experiment 55 (0x37) implements one binary layer with eight shared input bits. BNN_NEURON_COUNT selects 1–8 neurons at synthesis time (default: 1). A simulation assertion rejects counts outside this range. Weights and thresholds are programmed through registers. Training takes place outside the chip.

Each neuron compares its eight weight bits with the input using XNOR. A balanced popcount tree counts the matching bits (0–8). Its output is one when the count is at least the programmed threshold. Bits represent -1 and +1, so the corresponding signed dot product is 2 * count - 8. The hardware only needs the match count. Threshold 0 always passes. Thresholds 9–15 always fail.

uio_in[7:6] Action
00 Calculate one neuron per selected rising edge, if enabled and not finished
01 Latch the register address from ui_in
10 Write ui_in to the selected register
11 Read the selected register on uo_out
Address Register Meaning
0x00 INPUT Eight shared input bits
0x01 CONTROL Calculation enable in bit 0
0x02 OUTPUT One result bit per neuron, read-only
0x03 STATUS Result valid in bit 0, read-only
0x04 NEURON Neuron selected for configuration and diagnostics
0x05 WEIGHTS Eight weights of the selected neuron
0x06 THRESHOLD Threshold of the selected neuron, bits 3:0
0x07 MATCHES Live XNOR result of the selected neuron, read-only
0x08 COUNT Live match count of the selected neuron, read-only

One shared datapath processes the neurons in ascending order. After exactly BNN_NEURON_COUNT processing edges, STATUS becomes 1 and the complete result holds. Other bus operations, disable, and deselection pause the calculation. Outside read mode, uo_out shows OUTPUT. Partial results are visible before STATUS becomes 1. Unused high result bits are zero.

Writing INPUT, WEIGHTS, or THRESHOLD clears OUTPUT and STATUS and restarts the sequence at neuron zero. Selecting a neuron does not restart calculation. Out-of-range neuron selections are ignored (the previous selection remains). Writes to read-only or unused registers are ignored. Unused addresses read zero. Reset clears the weight bank, thresholds, input, result, and enable. Diagnostics are combinational: immediately after reset, MATCHES is 0xFF and COUNT is 8.

Example for neuron zero: program INPUT=0xB2, WEIGHTS=0xB0, THRESHOLD=7, then enable calculation and apply the required processing edges. MATCHES is 0xFD, COUNT is 7, and OUTPUT bit 0 is one. Program the other thresholds above 8 to suppress their output bits.

Sound

Programmable sound generator

Experiment 56 (0x38) combines a register bank, square-wave generator, LFSR, falling envelope, and PWM output. It has one voice with tone, noise, tone XOR noise, or tone AND noise.

uio_in[7:6] Action
00 Play. No register write
01 Latch the register address from ui_in on the rising edge
10 Write ui_in to the selected register on the rising edge
11 Read the selected register on uo_out
Address Register
0x00 Tone period, low byte
0x01 Tone period, high byte
0x02 Volume [3:0], 0–15
0x03 Enable [0], source [2:1] (tone, noise, XOR, AND), envelope mode [3]
0x04 Envelope decay rate, 0–255
0x05 Writing bit [0] = 1 starts/restarts the envelope. Reads return zero
0x06 Tone prescaler exponent [2:0], default 4 (divide by 16)
0x07 Envelope prescaler exponent [2:0], default 2 (divide by 4096)

Registers 0x06 and 0x07 are enabled by PSG_TONE_PRESCALE and PSG_ENVELOPE_PRESCALE in the current build. If disabled, they read zero and ignore writes, and the corresponding divider stays fixed at its default. Unused addresses read zero and ignore writes. Unused register bits read zero. Reset clears the sound settings, restores the default prescalers, and silences the voice. A held write repeats on every edge, so return to 00 after a trigger write. Period bytes are independent. Write both while disabled for a clean note change. Each period write restarts the tone divider and noise seed. Other writes do not stop playback.

Outside read mode the output is:

Bits Meaning
[0] PWM audio
[1] Selected source (tone, noise, XOR, or AND), gated by enable
[5:2] Current amplitude: volume or envelope level
[6] Envelope has not finished
[7] Sound enabled

With P_tone = 2^TONE_PRESCALE, the tone frequency is f_clk / (2 * P_tone * (period + 1)). At the default divide-by-16 setting and 50 MHz, period 3550 (0x0DDE) gives about 440 Hz. The PWM carrier is f_clk / 15. The PWM gate passes level / 15 of the phase slots, so level 15 passes the source continuously. These ratios describe the gate, not the duty cycle of the complete audio waveform. Zero amplitude or disabled sound produces a low audio output. Route PWM through an external low-pass filter and amplifier. Read mode replaces the audio pins with register data. It interrupts the physical audio output even though the generator keeps running.

Noise advances at f_clk / (P_tone * (period + 1)). The 16-bit LFSR shifts left, XORs bits 15, 14, 12, and 3, and starts at 1. Tap polynomial: x^16 + x^15 + x^13 + x^4 + 1, with 65535 nonzero states. The taps follow AMD/Xilinx XAPP052, table 3.

A trigger loads the envelope from volume. With sound and envelope mode enabled, it drops by one every P_env * (rate + 1) clocks, stopping at zero. Here P_env = 2^(10 + ENVELOPE_PRESCALE), which defaults to 4096. Disabling sound or envelope mode pauses decay. Changing volume does not reload an active envelope. Deselecting the PSG pauses all its state. Reset still works.

Example at 50 MHz: write period low 0xDE, period high 0x0D, volume 0x0F, decay rate 0xFF, control 0x09, then trigger 0x01. Return to operation 00. This plays a roughly 440 Hz note whose amplitude falls to zero in about 0.315 s.

Basic checks

Select 0x01 and try all four combinations of A and B. Select 0x02 and try all eight combinations of A, B, and C. Each adjacent output pair must agree. For 0x08, test zero, a single set bit, and multiple set bits. For example, A = 1, B = 0, C = 0 gives uo_out = 0x5A for 0x01 and uo_out = 0xC3 for 0x02.

Each experiment has its own cocotb test file. Combinational tests cover all 256 input bytes where useful. Shared tests check selection codes and experiment switching. Sequential tests provide their own clock and reset sequence. See Local Simulation for setup and commands, and Experiment Plan for the full curriculum.

External hardware

Digital switches or a controller can supply the selection and input signals. Observe outputs with a logic analyzer or an LED interface with suitable drivers and current limiting. Follow the development board’s I/O voltage requirements.

IO

#InputOutputBidirectional
0Data 0Result 0Experiment select 0
1Data 1Result 1Experiment select 1
2Data 2Result 2Experiment select 2
3Data 3Result 3Experiment select 3
4Data 4Result 4Experiment select 4
5Data 5Result 5Experiment select 5
6Data 6Result 6Operation select 0
7Data 7Result 7Operation select 1

Chip location

Controller Mux Mux Mux Mux Mux Mux Mux Mux Mux Mux Analog Mux Mux Mux Mux Mux Mux Mux Mux tt_um_chip_rom (Chip ROM) tt_um_factory_test (Tiny Tapeout Factory Test) tt_um_ieee_LDO (LDO) tt_um_chip_ieee_analog (IEEE Bandgap Reference) tt_um_snn_voice_calculator_mauro_ciccone (snn-voice-calculator) tt_um_hx2003_delay (4 Channel - 32 Tap Programmable Delay with Delay Locked Loop Calibration) tt_um_adxl362_test (tt_um_adxl362_test) tt_um_larsnit_cfar (1D CA/GO/SO CFAR radar detector) tt_um_abeccari_swsynth (Sine Wave Synthesizer) tt_um_dpi_adexp (AdExp DPI Neuron ) tt_um_140oo041_fpu130 (FPU-130) tt_um_blonghi_uart (uart) tt_um_directsgg_mini_proceo_8bit (Mini 8-bit Processor) tt_um_umaece1982_lfsr (Low-Power LFSR-Based Test Pattern Generator) tt_um_deploy_timer (launch deployment timer) tt_um_urish_simon (Simon Says memory game) tt_um_nimelli_kinematic_wave_engine (Kinematic Wave Engine) tt_um_multi_seg_monitor (Multi Segment Monitor) tt_um_UART_TX (project) tt_um_crc8_lfsr (CRC-8 Serial LFSR) tt_um_tinynpu4 (TinyNPU4) tt_um_alu_bns (6-bit multi function ALU ( eldawly_V2) ) tt_um_echoworld424_tpv (Timing-Prediction Test Vehicle) tt_um_gyro_lockin (Laser Gyro Lock-in Readout Core) tt_um_josue_olivos_sar_adc (4-Bit Charge-Redistribution SAR ADC Controller) tt_um_flower (VGA Flower) tt_um_vperumal_l1_fabric (Scalable Banked L1 Memory Fabric for Edge AI) tt_um_preinception_top (Preinception: Simple Compute Accelerator) tt_um_italu (iTALU: Interactive Testable Arithmetic Logic Unit) tt_um_neuron (4-Input Signed Neuron / Perceptron) tt_um_4tap_mac (4-Tap Signed MAC Unit) tt_um_mac_engine (DSP MAC Engine) tt_um_crypto_led_demo (QAMER CryptoUART: Encrypted UART with LED Status) tt_um_layernorm (LayerNorm) tt_um_ez130_8t_mystery (EZ130 8T Mystery Circuit) tt_um_sent2spi (SENT Receiver with SPI Interface) tt_um_llr_hepiarisc (Hepiarisc with SPI flash) tt_um_rebeccargb_vga_pride (VGA Pride) tt_um_hasi_ising (Oscillator Ising Machine) tt_um_c061618g2 (Circuitli C061618G2) tt_um_tiny_dram_pim (Tiny Dual-Channel DRAM-PIM Controller + PU) tt_um_Tbilisi_CORDIC_Engine (Tbilisi CORDIC Engine) tt_um_rahulmascarenhas_folded_nn (Frozen ternary backbone + loadable head) tt_um_miniMAC (miniMAC_IHP26b) tt_um_rumcajs (IEEE DOORSH) tt_um_sg13g2_mystery (SG13G2 Mystery Circuit) tt_um_ULSR88 (ULSR demo) tt_um_ez130_7t_mystery (EZ130 7T Mystery Circuit) tt_um_tinyopt4 (ieee_tt_tinyopt4) tt_um_vga_example (IEEE VGA Animated Beach) tt_um_hyphen133_drone_detection (IEEE Acoustic Drone Detector) tt_um_nuatlabs_fifo_pwm (Async FIFO with CDC + PWM Peripheral) tt_um_nuatlabs_uart (8N1 UART Transceiver) tt_um_eeg_threshold_detector (IEEE Digital EEG Threshold Event Detector) tt_um_smart_traffic (Smart Traffic Light Controller) tt_um_94442024_mini_cpu (Mini 8-bit Accumulator CPU) tt_um_wokwi_475369131246576641 (IEEE_UPB_TT_1) tt_um_aion (AION) tt_um_rebeccargb_hardware_utf8 (Hardware UTF Encoder/Decoder) tt_um_rebeccargb_universal_decoder (Universal Binary to Segment Decoder) tt_um_rebeccargb_intercal_alu (INTERCAL ALU) tt_um_flappy_bird (IEEE Flappy Bird VGA Game) tt_um_oryan01_alu (ALU CASS PUCV) tt_um_S4xU4 (S4xU4) tt_um_vga_ca (Space CA) tt_um_llr_simplenpu (simple SPI flash streaming NPU) tt_um_pucv_pspwm (3LFCC PS-PWM Modulator) tt_um_yuri_fpga (Tiny FPGA) tt_um_mikailgedik_inverted_inverters (Inverted inverters) tt_um_esauqch_hamming74 (Hamming(7,4) encoder/decoder (IEEE)) tt_um_hackin7_analog_experiments (TinyAnalogExperiments) tt_um_snake (snake game) tt_um_mini_kraken (Kraken IO Subprocessor) tt_um_fabien_pio (AstraPIO) tt_um_chiplab (ChipLab) tt_um_wokwi_475490677474407425 (Tiny_Divider) tt_um_c061618g2tr (Circuitli C061618G2TR) tt_um_catalinlazar_nanopio (nanoPIO) tt_um_catalinlazar_uart_spi_i2c_bridge (UART-SPI-I2C Bridge) tt_um_enzonappi_sent_i2c (SENT to I2C bridge) tt_um_kush1434_proof (Proof) tt_um_schwallsunk_signal_discriminator (Highspeed voltage discriminator) tt_um_tiarinix_ttihp_verilog_template (8-bit educational SAP-style CPU) tt_um_vga_glyph_mode (BOOTCAMP) tt_um_GiulioGirelli_packet_processor (Configurable Low-Latency Match-Action Packet Processor) tt_um_vga_tictactoe (Tic Tac Toe) tt_um_vga_dvd_player (DVD player) tt_um_clea_katseye_rain (KATSEYE) tt_um_romd_uart_hello (UART Hello World) tt_um_vga_snake (CDM PYTHON GAME) tt_um_vga_slot_machine (tt_um_vga_slot_machine) tt_um_jet_seq8b (SEQ8 Programmable Sequencer) tt_um_kibo_leak_inspect (KIBO Leak-Inspection Target Controller (VGA)) tt_um_endless_runner (Endless Runner) tt_um_omega_infinity_kaoru (OMEGA INFINITY KAORU 3D Metal Grid Processor) tt_um_nikleberg_mixer (Mixer) tt_um_lahnb_sgdma (TinyDMA: A Descriptor-Based Dual-PSRAM Memory Mover) tt_um_gstj_lockin (Digital IQ Lock-in (IEEE)) tt_um_benpayne_ps2_decoder (PS/2 Keyboard Decoder for 68k) tt_um_cass_s_ui_neuron_lif (Neurona LIF con Aprendizaje STDP Dinamico (IEEE)) tt_um_vga_glyph_mode_CDM_Matrix (CDM Matrix) tt_um_qd39l_xor_stream (Fixed-ROM XOR Stream Engine) tt_um_conv3x3 (3x3 Clock Rate Streaming Input Convolution Engine) tt_um_mc14500b_soc_extended (MC14500B Extended 1-bit Microcontroller SoC) tt_um_vga_hypno_spiral (tt_um_vga_hypno_spiral) tt_um_mattizen_morse_tree (Morse Tree LED Decoder) tt_um_CDM (Colegio de Muntinlupa DVD-like Display) tt_um_romd_uart_loader (UART SPI RAM Loader) tt_um_TscherterJunior_stapel_geraet (stapel gerät) tt_um_das2225_dna_accel (DNA_Accel) tt_um_tinysoc (TinySoC) tt_um_barrel_shifter (Barrel Shifter) tt_um_approx_mac_coprocessor (Approximate DSP: Time-Multiplexed MAC Coprocessor) tt_um_joesagents_market_split_oracle (Market-split oracle) tt_um_mgpauly1458_ringmeter (Ring oscillator frequency meter) tt_um_pettit_prism_lite (PRISM with Risc-V (TinyQV) SoC) tt_um_workshop_cpu (IEEE Workshop Simple CPU) tt_um_algofoogle_analog_junk (Simple comparator + 2 DACs analog layout in a 1x1 tile) tt_um_lkhanh_cordic (TinyQV SoC (Dual Memory Backend)) tt_um_4x4npu (4x4NPU: Dual-Lane INT4 Neural Accelerator) tt_um_abiaselli_izh_bridge_3x2 (Izhikevich event bridge (4 contexts)) tt_um_fabulous_ihp_26b (Tiny FABulous FPGA) tt_um_zanderivo_voronoi (Four-Metric VGA Nearest-Prototype Visualizer)
