TinyOpt-4 LMS Engine

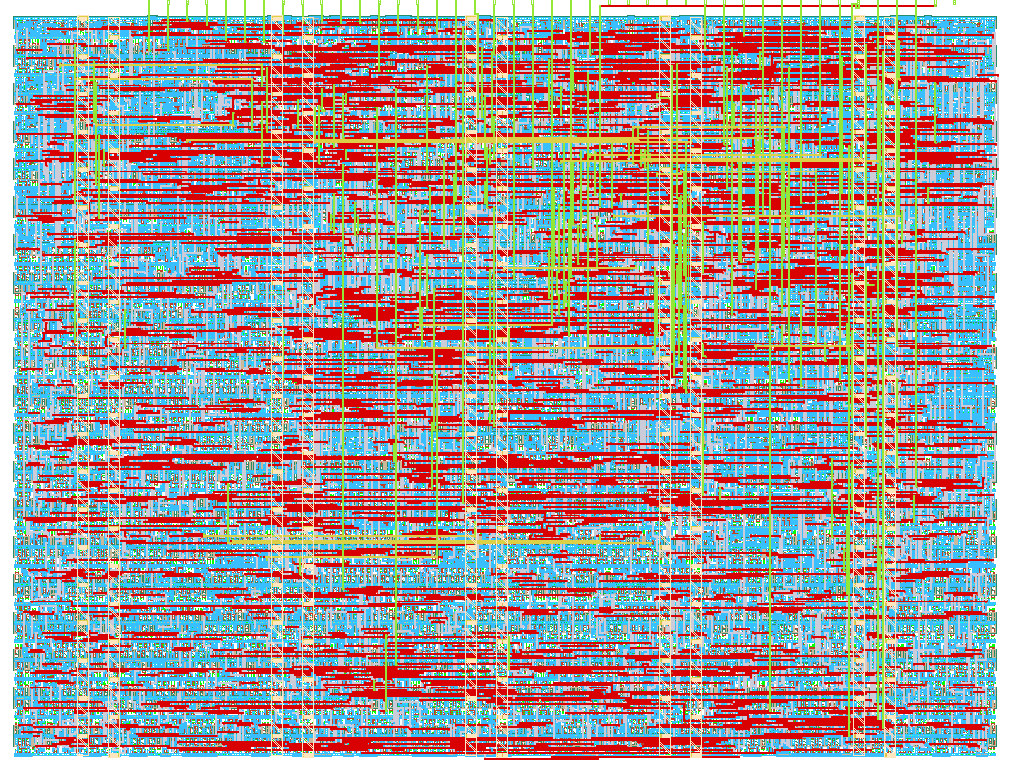

How it works

tt_um_tinyopt4 is a compact sequential parameter update engine designed specifically for adaptive FIR identification. The core executes an 11-state, time-multiplexed schedule with a 10-cycle processing path around a shared arithmetic unit:

State S_IDLE: Polls control bits; captures incoming data sample $x[n]$ into the 4-element shift register when start = 1 and data_sel = 0.
States S_MAC0 to S_MAC3: Feeds pairs $(w_i[n], x[n-i])$ sequentially into the single signed $8 \times 8$ multiplier. Products are added into the 18-bit accumulator.
State S_ERR: Clamps the normalized accumulator to the 8-bit range $[-128, +127]$, subtracts this estimate from reference $d[n]$, and registers the bounded difference $e[n]$.
States S_UPD0 to S_UPD3: Re-routes the multiplier to compute $e[n] \cdot x[n-i]$. The 16-bit intermediate product passes through an arithmetic barrel shifter configured by $s$, saturates, and updates register $w_i[n+1]$.
State S_DONE: Pulses done high for one cycle, deasserts busy, and returns the FSM to S_IDLE.

How to test

Verification relies on the Cocotb test framework running under Icarus Verilog (iverilog):

Target Verification Vector: Automated simulation feeds pseudo-random $Q1.7$ sequences through a static target plant $W^* = [64, -32, 16, -8]$.
Pass/Fail Assertion: After 1500 consecutive update cycles, the test checks that all four hardware registers converge within $\vert{}w_i - W^*_i\vert{} \le 10\text{ LSB}$ to account for truncated intermediate precision.
Gate-Level Check: The post-synthesis netlist generated by LibreLane is re-simulated using the same Cocotb harness to verify zero functional regression across cell delays.

How to use

Bus and Control Mapping

Interface	Signal	Role
`ui_in[7:0]`	Data / Address	Input values ($x[n]$, $d[n]$, or shift exponent $s$). When idle, bits `[2:0]` act as register read address.
`uo_out[7:0]`	Data Out	Monitored byte selected by `ui_in[2:0]`.
`uio_in[0]`	`start`	Clock-synchronous execution strobe.
`uio_in[1]`	`data_sel`	`0` = Shift sample $x[n]$; `1` = Latch reference $d[n]$ and trigger 10-cycle update.
`uio_in[2]`	`cfg_sel`	`1` = Write learning rate exponent $s$ from `ui_in[2:0]`.
`uio_out[4]`	`busy`	Held high by FSM during the 10 processing cycles.
`uio_out[5]`	`done`	Single-cycle pulse marking coefficient update completion.
`uio_out[6]`	`overflow`	Latched high if prediction or error calculation exceeds $Q1.7$ limits.
`uio_out[7]`	`w_sat`	Latched high if any tap update hits $\pm 127$ saturation bounds.

Operational Procedure

Reset Sequence: Assert rst_n = 0 for 3 clock cycles, then release (rst_n = 1).
Set Step Exponent (Optional): Drive ui_in[2:0] = s (e.g., 3 for $\mu = 2^{-3}$), pulse uio_in = 3'b101 for one cycle, then return uio_in to 0.
Feed History Buffer: For each of the initial samples, place $x[n]$ on ui_in[7:0], strobe uio_in = 3'b001 for one cycle, and wait one cycle.
Trigger Filter & Adaptation: Place $d[n]$ on ui_in[7:0], strobe uio_in = 3'b011 for one cycle, then clear uio_in = 0.
Monitor Flags: Wait 10 clock cycles until uio_out[4] (busy) returns low and uio_out[5] (done) pulses high.
Readback Register: With uio_in = 0, apply the target address to ui_in[2:0]:

3'b000: Predicted response $\hat{y}[n]$
3'b001: Error residual $e[n]$
3'b010 to 3'b101: Filter taps $w_0$ to $w_3$

External hardware

None required. The module operates self-contained on any standard Tiny Tapeout carrier board:

Manual Inspection: On-board DIP switches drive control/data lines; onboard LEDs display status flags and output bytes.
Automated Benchmarking: Any standard 3.3V microcontroller (RP2040, ESP32) or USB-to-GPIO interface can drive the 8-bit parallel bus up to 10 MHz.

#	Input	Output	Bidirectional
0	Data input bit 0 (x / d / cfg_mu)	Multiplexed output bit 0 (y_hat / e / w0-w3)	In: start
1	Data input bit 1	Multiplexed output bit 1	In: data_sel (0=x, 1=d)
2	Data input bit 2	Multiplexed output bit 2	In: cfg_sel (1=config mu)
3	Data input bit 3	Multiplexed output bit 3	In: unused / tied low
4	Data input bit 4	Multiplexed output bit 4	Out: busy
5	Data input bit 5	Multiplexed output bit 5	Out: done
6	Data input bit 6	Multiplexed output bit 6	Out: overflow flag
7	Data input bit 7	Multiplexed output bit 7	Out: weight saturation flag
