224 Configurable Low-Latency Match-Action Packet Processor
224 : Configurable Low-Latency Match-Action Packet Processor
- Author: Giulio Girelli
- Description: Configurable low-latency packet-processing ASIC with programmable match-action classification
- GitHub repository
- Open in 3D viewer
- Open in Tiny Tapeout Explorer
- Clock: 50000000 Hz

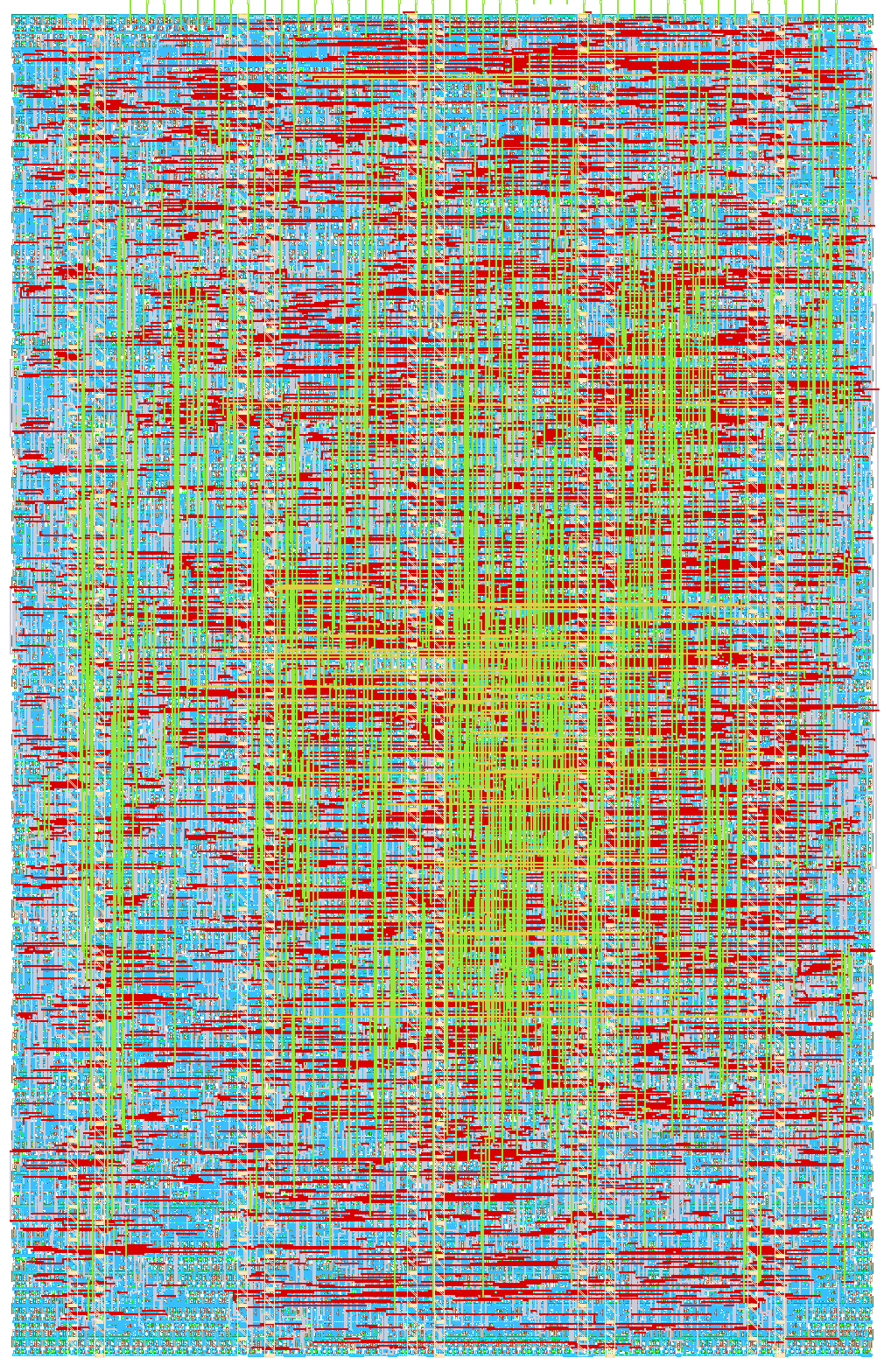

Configurable Low-Latency Match-Action Packet Processor
Author: Giulio Girelli
How it works
A byte stream of packets flows into the processor, one byte per clock cycle. Each packet is a sequence of chunks: a metadata (type) byte followed by zero or more data bytes belonging to the most recent metadata. The processor filters the stream and collects, for each of 3 programmable type values, the first 2 data bytes (16 bits, MSB-first) into a 3×16-bit collection table. Partial, interleaved and repeated chunks are legal; overflow bytes are dropped.
When all 3 slots are full, 3 configurable rules are evaluated in parallel.
Each rule has a flag byte (1 enable bit, 3 type-check enable bits, 4 action
bits) and three 16-bit match values. A rule hits when it is enabled and every
enabled type matches the collected value; if several rules hit, the highest
rule number wins. The result (winning rule number, number of checked types,
4-bit action) is presented on the output pins while the packet keeps
streaming, until one cycle after the end-of-packet flag; the table is then
cleared for the next packet. All rules, type values and statistics are
programmed and inspected through a configuration mode (single-cycle READ,
two-cycle WRITE) over a 5-bit, 32-register address map. Statistics counters
(16-bit total bytes, 16-bit total packets, 8-bit per-rule and no-rule hit
counters) are read-only and wrap naturally. Synchronous soft resets
(rst_type) clear the collection table/packet state (01), the rule table and
type registers (10), or the statistics counters (11). Resets 10/11 preserve
ongoing packet/result/error state while transient responses expire normally.
Type reset keeps the current chunk's slot selection; the next metadata byte
uses the new type values. The declared clock is 50 MHz.
ena is sampled at rising clock edges: when low, inputs are ignored, internal
state holds and outputs become idle at that edge. There is no asynchronous
output clamp when the clock is stopped. The dedicated active-low hard reset
remains asynchronous and works even with ena=0.
How to test
Configuration mode (cfg_mode=1): present the register address with
packet_status=01 (READ, value on out next cycle) or 10 (WRITE address),
then the data with packet_status=11 (WRITE completes). Packet mode
(cfg_mode=0): stream metadata bytes (packet_status=10), data bytes
(packet_status=01) and end-of-packet (packet_status=11); watch
out_state — 001 packet active, 010 result available, 011/110 WRITE/READ
completed, 100 end-of-packet too early, 101 WRITE error, 111 input error.
External hardware
None.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | in[0] | out[0] | cfg_mode |
| 1 | in[1] | out[1] | packet_status[0] |
| 2 | in[2] | out[2] | packet_status[1] |
| 3 | in[3] | out[3] | rst_type[0] |
| 4 | in[4] | out[4] | rst_type[1] |
| 5 | in[5] | out[5] | out_state[0] |
| 6 | in[6] | out[6] | out_state[1] |
| 7 | in[7] | out[7] | out_state[2] |
