423 DSP MAC Engine
423 : DSP MAC Engine
- Author: Maaz Ahmed Khan
- Description: 8x8 signed multiply-accumulate engine with byte-serial I/O
- GitHub repository
- Open in 3D viewer
- Open in Tiny Tapeout Explorer
- Clock: 50000000 Hz

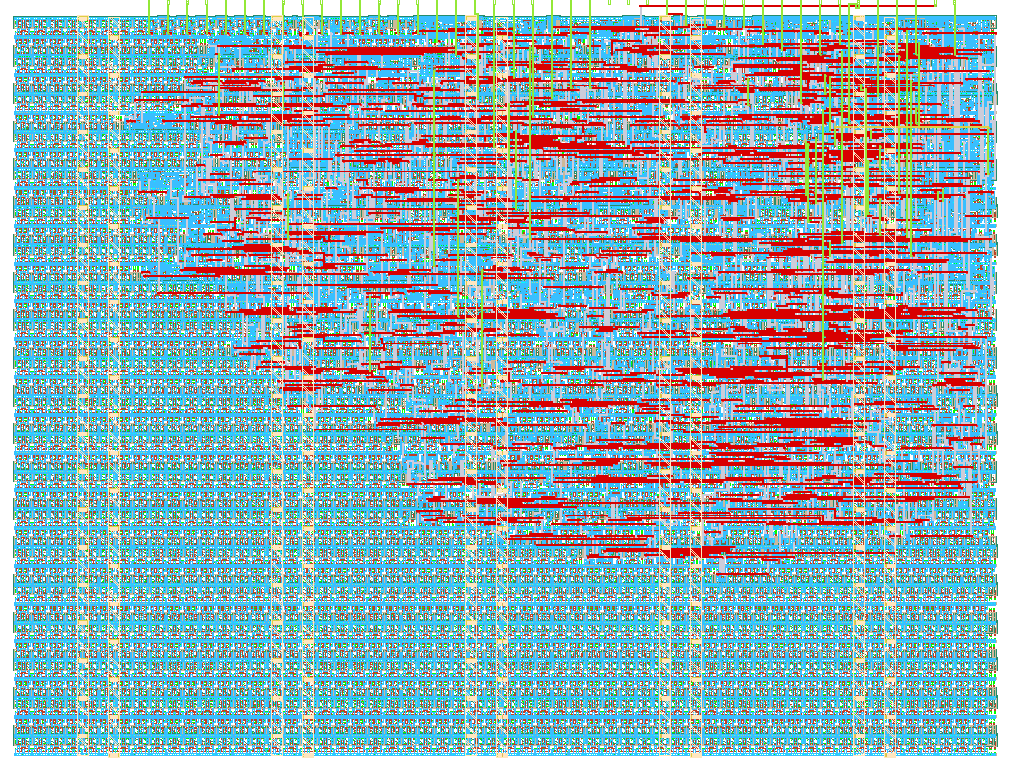

How it works
The DSP MAC Engine is an 8-bit signed multiply-accumulate datapath.
Two signed 8-bit operands are loaded through the ui_in input bus using
control signals on uio_in. When mac_en is asserted, the two operands are
multiplied to produce a signed 16-bit product. The product is sign-extended
to 24 bits and added to the internal 24-bit accumulator.
The accumulator can be cleared using clr_acc. Its 24-bit value can be read
one byte at a time through uo_out using the rd_next control signal.
The input and control signals are:
ui_in[7:0]: 8-bit signed operand data busuio_in[0]:load_a— loads the first operanduio_in[1]:load_b— loads the second operanduio_in[2]:mac_en— performs the multiply-accumulate operationuio_in[3]:clr_acc— clears the accumulatoruio_in[4]:rd_next— advances the accumulator byte being readuio_in[7:5]: unused
The 24-bit accumulator is presented through uo_out[7:0] one byte at a
time. This allows the complete accumulated result to be read using the
8-bit Tiny Tapeout output bus.
The design operates synchronously from the Tiny Tapeout clk input and
uses an active-low reset through rst_n.
How to test
The design can be tested by applying a clock and reset, loading two signed 8-bit operands, and then enabling the MAC operation.
For example, to perform:
3 × 5 = 15
load 3 into operand A using load_a, load 5 into operand B using
load_b, and assert mac_en for a clock cycle.
The resulting accumulator value can then be read through uo_out[7:0]
using rd_next.
The supplied Cocotb testbench performs reset, loads A = 3 and B = 5, executes one multiply-accumulate operation, and verifies that the resulting value is 15.
The accumulator can also be cleared using clr_acc before starting a new
calculation.
External hardware
No external hardware is required for simulation.
For a physical demonstration, the ui_in bus can be driven by an external
digital controller or FPGA, while the uio_in control signals can be used
to control operand loading, MAC execution, accumulator clearing, and result
readout.
The 8-bit uo_out bus can be connected to a logic analyzer, FPGA, or other
digital interface to observe the accumulator result.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | operand data bus bit 0 | accumulator byte out 0 | load_a (strobe) |
| 1 | operand data bus bit 1 | accumulator byte out 1 | load_b (strobe) |
| 2 | operand data bus bit 2 | accumulator byte out 2 | mac_en (strobe) |
| 3 | operand data bus bit 3 | accumulator byte out 3 | clr_acc (strobe) |
| 4 | operand data bus bit 4 | accumulator byte out 4 | rd_next (strobe) |
| 5 | operand data bus bit 5 | accumulator byte out 5 | |
| 6 | operand data bus bit 6 | accumulator byte out 6 | |
| 7 | operand data bus bit 7 | accumulator byte out 7 |
