168 Four-MAC Core Neural Network Inference Engine
168 : Four-MAC Core Neural Network Inference Engine
- Author: Lucas Wendland
- Description: Signed 4-bit dot products with an acknowledged byte interface
- GitHub repository

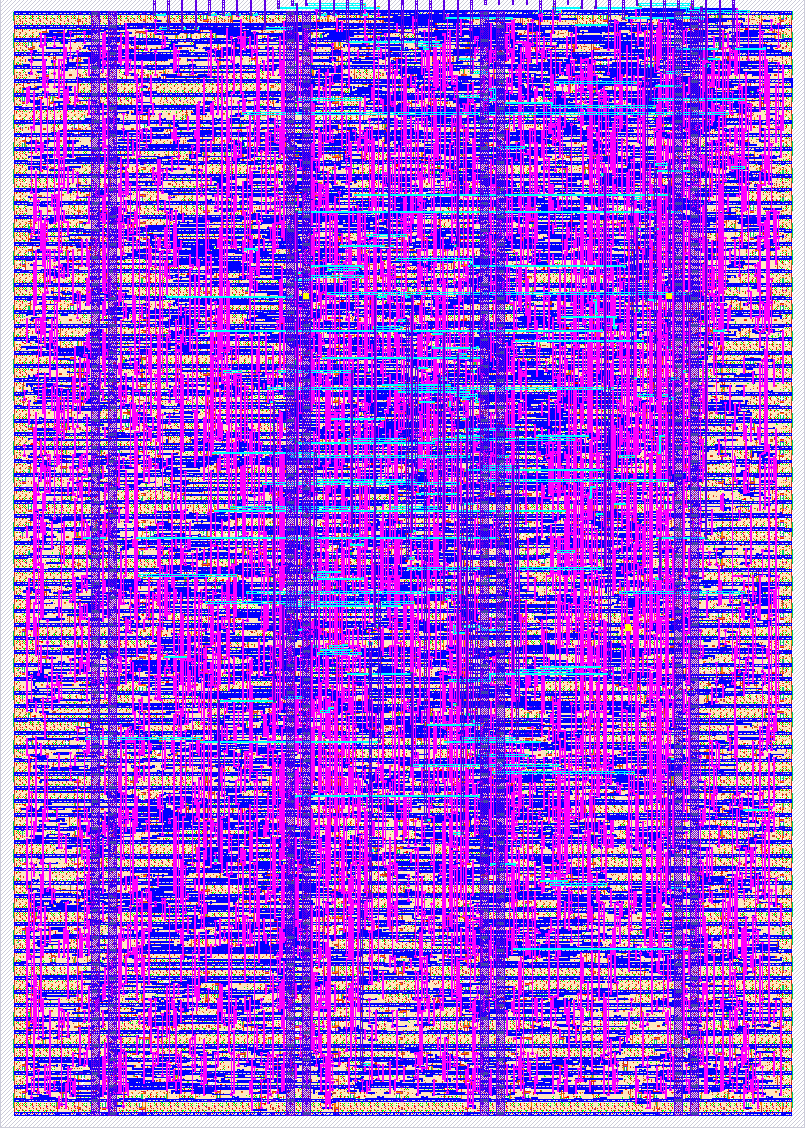

- Open in 3D viewer
- Open in Tiny Tapeout Explorer
- Clock: 50000000 Hz
How it works
Four signed 4-bit MAC lanes compute four dot products per job, with 20-bit accumulation. A shared activation and four weights arrive as three acknowledged bytes per vector element. The host supplies START (or START_BIASED followed by four signed 20-bit biases), streams a nonempty vector with LAST on its final element, and reads twelve result bytes. Models with more than four output neurons use successive jobs and replay the activations.
The current top module returns raw signed sums including optional bias. Activation integration, requantization, and multilayer scheduling are performed by the host or remain future work. A standalone ReLU block exists but is not connected to this datapath. The 50 MHz clock is a design target pending SKY130 physical timing verification.
How to test
Install test/requirements.txt in a Python virtual environment and run make check
from the repository root. This runs lint, functional tests, block simulations, and
pin-level image/protocol regressions. See docs/input_protocol.md for the exact
byte format, handshakes, and clock-domain stability requirements.
On hardware, configure the host to drive ui[7:0], uio[0], uio[2], and uio[3] only; all other uio pins are status outputs. Hold RX_REQ and TX_ACK low during reset. After reset release and JOB_READY, send command 01 followed by operand packets, or command 03 followed by twelve bias bytes and then operand packets. Acknowledge each output byte individually and check PROTOCOL_ERROR. The status and data handshakes permit a slow host, but the project clock must remain running.
External hardware
Tiny Tapeout demo board or a compatible external host supplying the project clock,
reset, and acknowledged byte I/O. Host memory holds images, weights, and intermediate
layer results. See host/input_protocol.py for preprocessing and packet helpers.
The SKY 26c digital development configuration does not yet implement the requested
analog-slot physical floorplan; see docs/sky130_setup.md before submission.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | RX_DATA[0] | TX_DATA[0] | RX_REQ |
| 1 | RX_DATA[1] | TX_DATA[1] | RX_ACK |
| 2 | RX_DATA[2] | TX_DATA[2] | RX_COMMAND |
| 3 | RX_DATA[3] | TX_DATA[3] | TX_ACK |
| 4 | RX_DATA[4] | TX_DATA[4] | TX_VALID |
| 5 | RX_DATA[5] | TX_DATA[5] | TX_LAST |
| 6 | RX_DATA[6] | TX_DATA[6] | JOB_READY |
| 7 | RX_DATA[7] | TX_DATA[7] | PROTOCOL_ERROR |
