294 Noah RISC-V Core
294 : Noah RISC-V Core

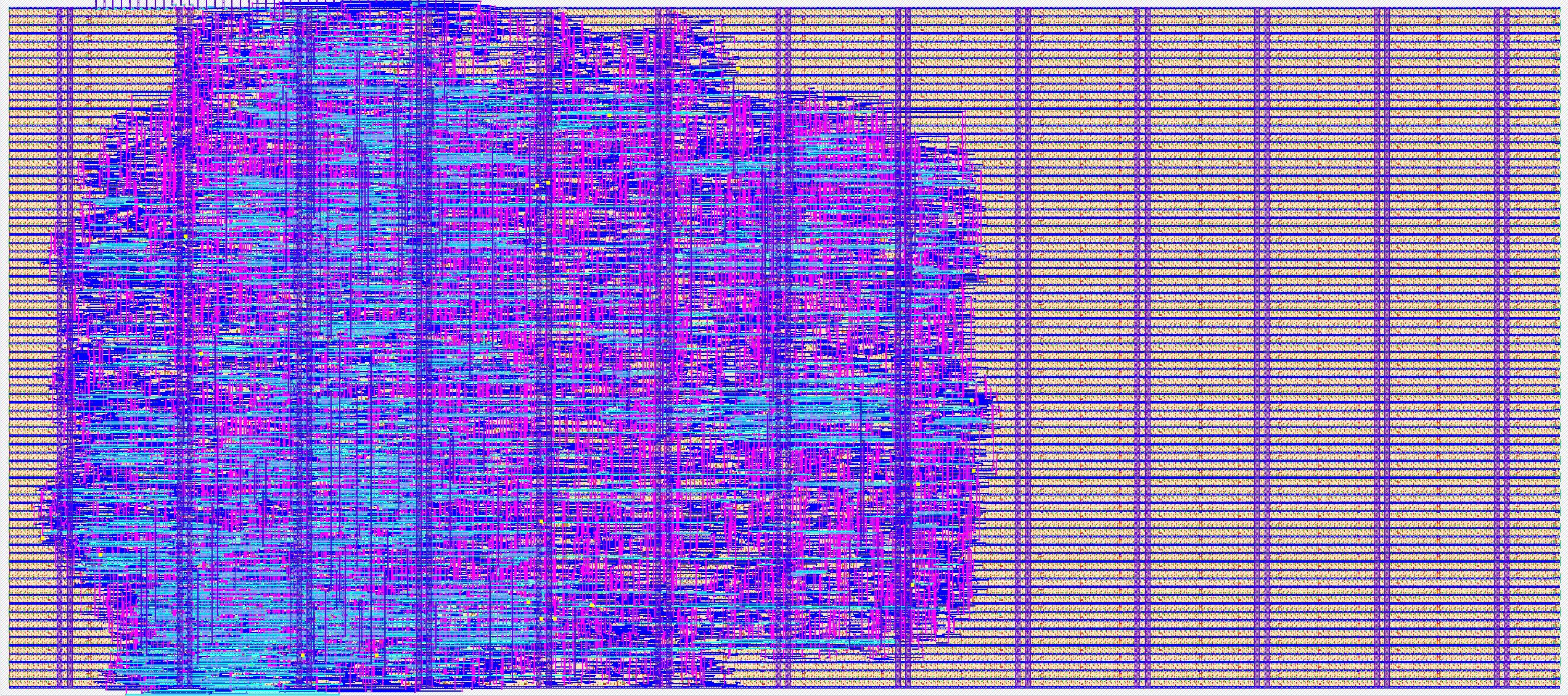

- Author: Noah Perez
- Description: A single-cycle RISC-V processor implementing a subset of RV32I
- GitHub repository
- Open in 3D viewer
- Open in Tiny Tapeout Explorer
- Clock: 50000000 Hz
How it works
This project implements a single-cycle RISC-V processor core supporting a subset of the RV32I base integer instruction set. Every instruction — fetch, decode, execute, memory access, and write-back — completes in a single clock cycle.
The core consists of seven modules: an instruction memory (imem), a data memory (dmem), a register
file (regfile), a control unit that decodes instructions and generates control signals, an
immediate generator (immgen), an ALU, and a top-level module that wires them together and manages
the program counter.
Because the design only exposes 8 dedicated input pins and 8 dedicated output pins, the internal 32-bit
program counter (debug_pc) is exposed externally through a byte-select multiplexer: ui_in[1:0]
selects which of the four bytes of debug_pc is currently driven onto uo_out. Cycling through all
four select values and reassembling the bytes reconstructs the full 32-bit program counter value,
letting you observe the core's execution externally in real time.
Reset is active-low (rst_n) at the TT interface and is inverted internally to match the core's
active-high reset convention.
Known limitations: only a subset of RV32I is currently implemented — non-addi I-type instructions
and blt-style branches are not yet functionally correct in this revision.
How to test
- Hold
rst_nlow for at least a few clock cycles, then release it (drive high). - Set
ui_in[1:0]to00,01,10, and11in sequence, samplinguo_outafter each change, to read back the four bytes of the program counter (debug_pc[7:0],debug_pc[15:8],debug_pc[23:16],debug_pc[31:24]respectively). - Reassemble the four bytes into a 32-bit value to get the current program counter.
- Immediately after reset, the reconstructed program counter should read
0. - Clock the design and repeat steps 2-3; the program counter should advance by 4 each cycle for sequential instructions, and should jump non-sequentially when the program executes a branch or jump instruction, confirming the core is correctly fetching and executing its preloaded program.
External hardware
No external hardware is required.
IO
| # | Input | Output | Bidirectional |
|---|---|---|---|
| 0 | debug_pc byte select bit 0 | debug_pc selected byte, bit 0 | |
| 1 | debug_pc byte select bit 1 | debug_pc selected byte, bit 1 | |
| 2 | debug_pc selected byte, bit 2 | ||
| 3 | debug_pc selected byte, bit 3 | ||
| 4 | debug_pc selected byte, bit 4 | ||
| 5 | debug_pc selected byte, bit 5 | ||
| 6 | debug_pc selected byte, bit 6 | ||
| 7 | debug_pc selected byte, bit 7 |
