heart_monitor_adc_art

Art fork of the 12-bit ~500 SPS SAR ADC companion for the SNN heart monitor. Same silicon function as heart_monitor_adc_ttsky26c, plus decorative met4 art in the free pocket east of the digital macro.


Top module	`tt_um_davidbroughsmyth_ecg_sar12`
Tiles	2×2
Analog pins	2 (`ua[0]` vin_ecg, `ua[1]` vref)
Clock	50 MHz
Sample rate	500 SPS (production)
Resolution	12-bit

Architecture details: ARCHITECTURE.md · Component datasheet (databook style): DATASHEET.md · User manual (demoboard / HIL): USER_MANUAL.md · Demoboard wiring: INTEGRATION.md

Features

Binary-search SAR with sample/hold, 12-bit R-2R DAC, and comparator interface
Digital bus matches SNN ADC consumer (uo / uio + sample_en)
RTL sim path via pin vin proxy + behavioral comparator (no SPICE required)
Silicon path: Magic AFE + OpenLane-hardened sar_digital on TT analog template
Decorative met4 silicon art (cats / hearts / DBS) — non-functional

Block diagram

flowchart LR
  ua0[ua0_vin_ecg] --> sh[SampleHold]
  ua1[ua1_vref] --> dac[R2R_DAC_12b]
  sar[sar_fsm] -->|sample| sh
  sar -->|dac_bits| dac
  sh --> cmp[Comparator]
  dac --> cmp
  cmp -->|cmp_out| sar
  rate[rate_divider] -->|strobe| sar
  sar --> bus[uo_uio_sample_en]

How it works

rate_divider derives a convert strobe at 500 SPS from clk (50e6 / 500 = 100000 cycles). Cocotb uses FAST_SIM (~250 kSPS) only.
On each strobe, sar_fsm holds the input and runs 12 MSB-first bit trials.
The 12-bit result is driven on the SNN-compatible bus and sample_en is pulsed for 4 clocks.

ADC output	SNN input
`uo[7:0]` = `adc[7:0]`	`ui_in[7:0]`
`uio[3:0]` = `adc[11:8]`	`uio_in[3:0]`
`uio[4]` = `sample_en`	`uio_in[4]`

Silicon: ua[0] = vin_ecg, ua[1] = vref. Ideal SPICE AFE in analog/.

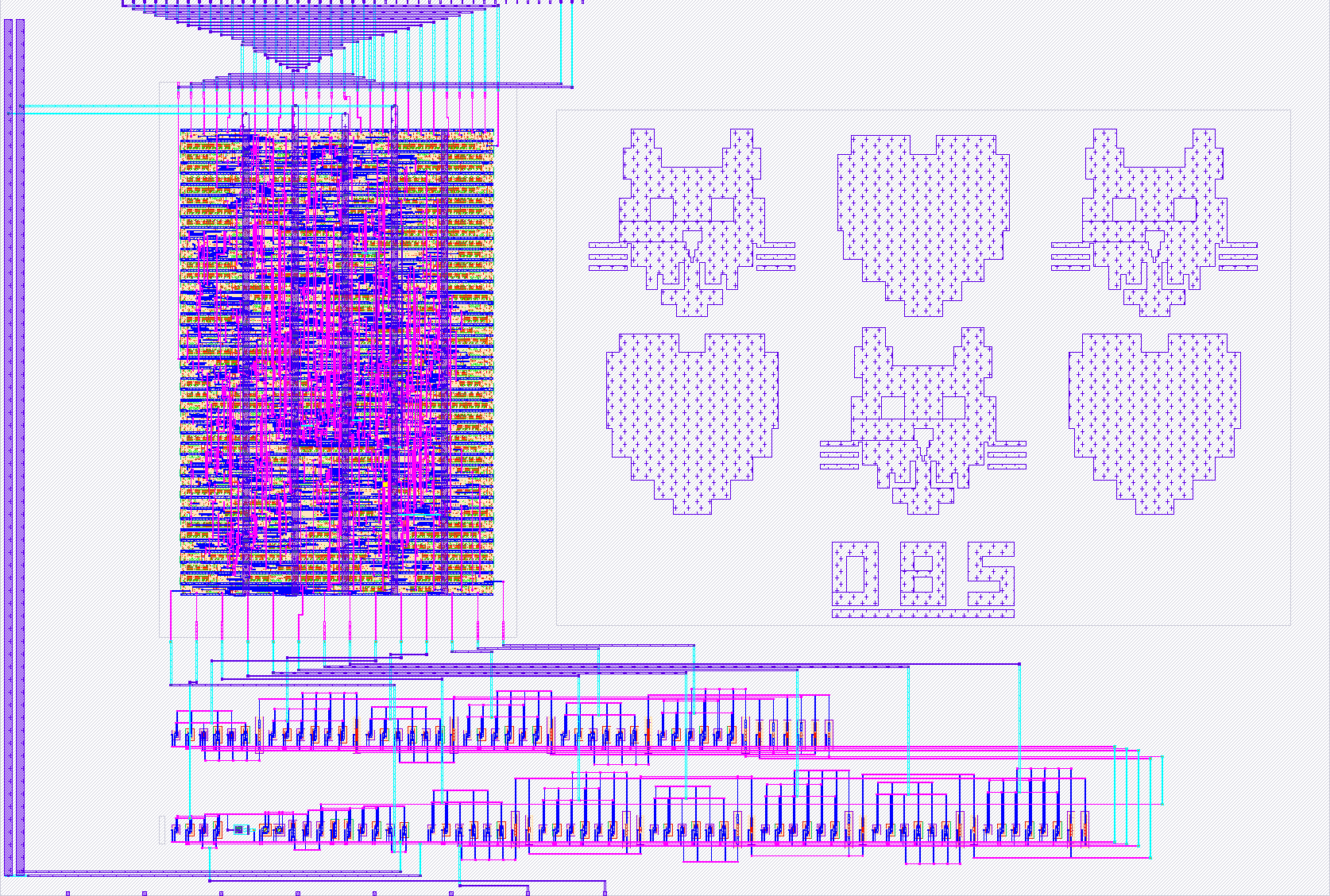

Silicon art (decorative)

Non-functional met4 doodle in the free space right of sar_digital:


Cell	`silicon_art` — 185 × 130 µm
Place	`(140, 68)` via `mag/build_top_2x2.tcl`
Motif	Cat faces (whiskers, cute inverted-triangle nose hole, U-mouth) + hearts + `DBS`
Electrical	Floating metal — no pins, power, or SAR impact (`ua` / `uo` / `uio` unchanged)

Regenerate: python3 mag/macros/silicon_art/generate_art.py then cd mag && make top. Preview: mag/macros/silicon_art/silicon_art.svg.

Digital sim: {uio_in[7:5], ui_in} << 1 (even codes 0…4094) with -DDIGITAL_CMP_MODEL and analog_frontend_stub.v.

Target ECG mapping (after external gain): R-peaks ≥ 2200 for the SNN peak threshold.

Pinout

Analog

Pin	Name	Direction	Description
`ua[0]`	vin_ecg	inout	Conditioned single-ended ECG
`ua[1]`	vref	inout	SAR reference

Digital outputs (ADC → SNN)

Pin	Name	Description
`uo[7:0]`	adc[7:0]	Sample LSBs
`uio[3:0]`	adc[11:8]	Sample MSBs (`uio_oe` driven)
`uio[4]`	sample_en	New-sample strobe (`uio_oe` driven)

Digital inputs (sim / unused on silicon)

Pin	Name	Description
`ui[7:0]`	vin[7:0]	Sim vin LSBs
`uio[7:5]`	vin[10:8]	Sim vin MSBs (inputs)

Timing

Parameter	Value
`clk`	50 MHz
Convert period	100000 clocks ≈ 2 ms (500 SPS)
SAR latency	~12–20 clocks
`sample_en` width	4 clocks

How to test

cd test
python3.13 -m venv .venv && source .venv/bin/activate
pip install -r requirements.txt
make -B

Cocotb: uio_oe contract, SAR code tracking, sample_en period under FAST_SIM.

cd analog && ./run_tb.sh   # ngspice AFE comparator polarity

External hardware

ECG front-end (instrumentation amp + ~0.5–40 Hz bandpass) into ua[0].
Lab: AWG / Analog Discovery into ua[0] (0…Vref); see USER_MANUAL.md §3.4.
Wire this tile’s ADC bus to tt_um_snn_lif_neuron; share clk, rst_n, GND.
Optional lab path: MCU + commercial 12-bit SAR on the same digital bus.

See INTEGRATION.md. Hardening notes: mag/README.md.

#	Input	Output	Bidirectional
0	vin[0]	adc[0]	adc[8]
1	vin[1]	adc[1]	adc[9]
2	vin[2]	adc[2]	adc[10]
3	vin[3]	adc[3]	adc[11]
4	vin[4]	adc[4]	sample_en
5	vin[5]	adc[5]	vin[8]
6	vin[6]	adc[6]	vin[9]
7	vin[7]	adc[7]	vin[10]
