How it works

This project is a fully self-contained MNIST handwritten-digit classifier. All neural-network weights live on-chip: they are ternary ({-1, 0, +1}) and are baked into the netlist as Verilog constants, so synthesis constant-folds them into plain logic — no RAM, no ROM macros, no weight loading.

The network is an MLP 64 -> 32 -> 10 with binary {0,1} hidden activations (a linear 64 -> 10 and an MLP 64 -> 16 -> 10 are selectable at synthesis time via the MLP / HIDDEN parameters). It was trained with quantization-aware training (straight-through estimators for the ternary weights and binary activations) on MNIST images that were average-pooled from 28×28 to 8×8 and binarized at a fixed threshold (0.15 of full scale). Test-set accuracy of the exact integer model (10,000 images):

Variant	Accuracy
MLP 64→32→10 (default, this submission)	80.3 %
linear 64→10	78.3 %
MLP 64→16→10	76.0 %

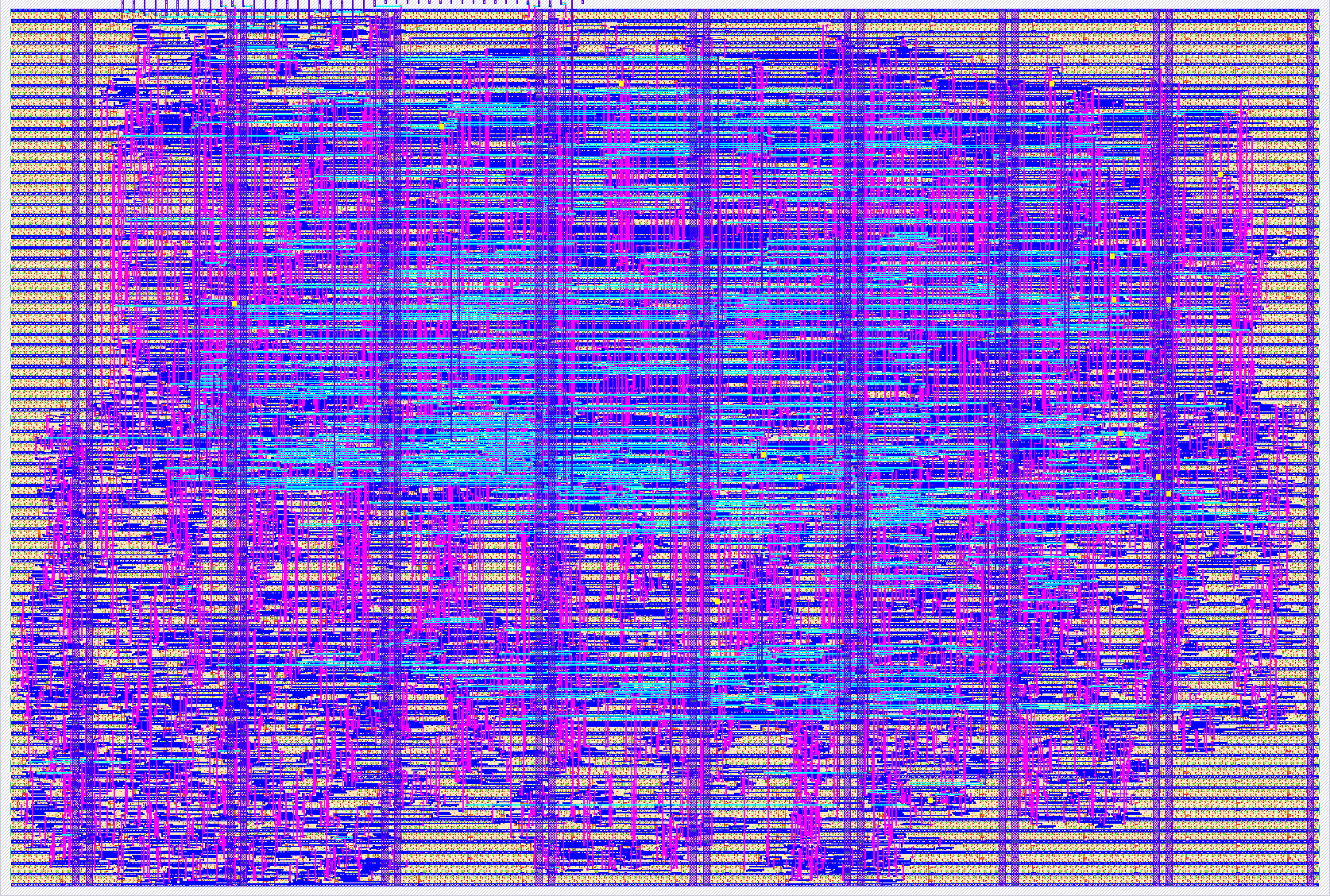

The default variant hardens to ~31 % utilization of a 2×2 tile (sky130A).

Operation is bit-serial and takes about 24 µs per digit at 10 MHz:

Load — the host strobes START, then shifts 64 pixel bits in through ui[0]/ui[1] (pixel 0 = top-left, row-major, LSB first). The bits land in a 64-bit shift register.
Layer 1 — 64 cycles: the input register rotates; each pixel bit add/sub/skips into 16 parallel 8-bit accumulators (the 32-hidden-unit default runs two 16-lane passes). Biases are preloaded so the hidden activation is simply the accumulator sign bit.
Layer 2 — hidden bits are binarized, then fed serially (one per cycle) into 10 class accumulators.
Argmax — a 10-cycle sequential scan finds the best class (ties go to the lower digit). DONE rises; the digit appears on uio[3:0] and on the 7-segment display, with the decimal point lit.

Compute starts automatically after the 64th bit; DONE rises 172 clock cycles later (74 for the linear variant, 91 for the 16-hidden MLP). A new START strobe — or a hardware reset — cleanly abandons any load or result in progress.

How to test

Serial protocol on ui_in (all signals sampled on the rising edge of clk; clk may run continuously, up to 10 MHz):

ui[0] DATA — pixel bit
ui[1] SHIFT_EN — when high, DATA is shifted in on this clock edge
ui[2] START — one-cycle strobe: clear the bit counter, begin a new image

            ┌─┐ ┌─┐ ┌─┐ ┌─┐ ┌─┐ ┌─┐   ┌─┐ ┌─┐ ┌─┐ ┌─┐
clk       ──┘ └─┘ └─┘ └─┘ └─┘ └─┘ └───┘ └─┘ └─┘ └─┘ └──
            ┌───┐
START     ──┘   └───────────────────────────────────────
                    ┌───────────┐     ┌───┐        (64 bits total)
SHIFT_EN  ──────────┘           └─────┘   └─────────────
                    ╔═══╗╔══════╗     ╔═══╗
DATA      ──────────╣p0 ╠╣ p1   ╠─────╣p2 ╠─────────────
                    ╚═══╝╚══════╝     ╚═══╝
                     bit0  bit1        bit2  ... gaps are fine:
                                             DATA only sampled when SHIFT_EN=1

After the 64th bit the chip computes on its own; poll DONE (uio[4] or uo[7]). DONE stays high, and the digit stays valid, until the next START.

              ... last bit          compute (~172 cycles)
SHIFT_EN  ────────┐┌──┐
                  └┘  └─────────────────────────────────
DONE      ──────────────────────────────┌───────────────
                                        └→ read uio[3:0]

Outputs:

uio[3:0] — predicted digit, binary 0–9 (uio pins are always outputs)
uio[4] — DONE, uio[5] — BUSY (high while computing)
uo[6:0] — 7-segment a–g (matches the TT demo board display), uo[7] — DONE / decimal point. The display is blank after reset until the first result.

Image preprocessing (host side): average-pool the 28×28 grayscale image to 8×8 (bin r spans rows ⌊r·28/8⌋ to ⌈(r+1)·28/8⌉−1, same for columns), then set each pixel to 1 if its mean is greater than 0.15 (pixel range 0–1). Send row-major, top-left pixel first. See demo/rp2040_demo.py in the project repo for a ready-made MicroPython demo, and test/test.py for the cocotb testbench that verified 200 MNIST images bit-exact against the training pipeline.

To reproduce training / regenerate weights: train/train.py (PyTorch QAT) then train/gen_weights.py (emits src/weights.v).

External hardware

None required — the on-board 7-segment display shows the digit. Drive the inputs from the TT demo board's RP2040 (see demo/rp2040_demo.py) or any microcontroller.

#	Input	Output	Bidirectional
0	DATA (serial pixel bit)	SEG_A	DIGIT[0] (output)
1	SHIFT_EN (sample DATA on rising clk)	SEG_B	DIGIT[1] (output)
2	START (begin new image)	SEG_C	DIGIT[2] (output)
3		SEG_D	DIGIT[3] (output)
4		SEG_E	DONE (output)
5		SEG_F	BUSY (output)
6		SEG_G
7		DONE (7-seg decimal point)
